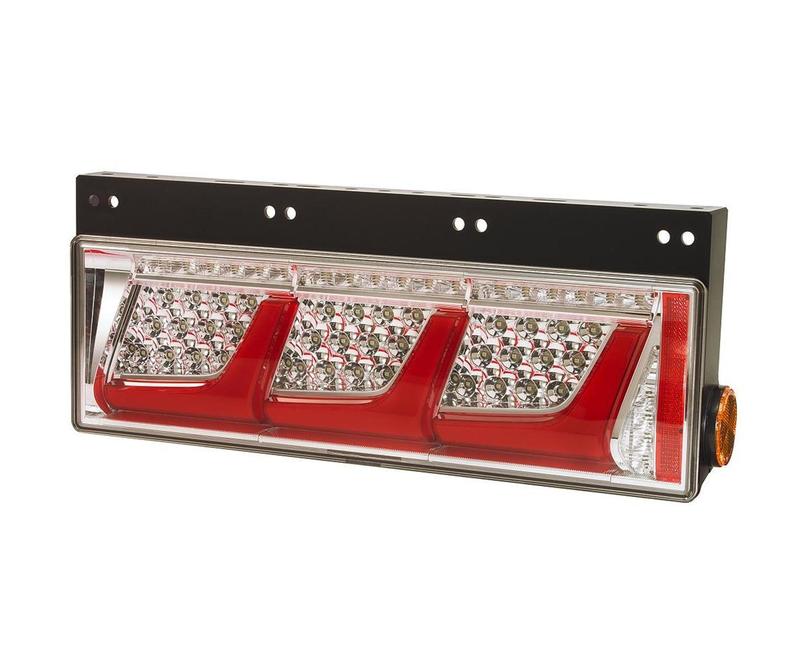

Truck All-LED Rear Combination Lamp, 3-Gang Type, Normal Turn, Left, Red, 24V, 1 pc.

【KOITO Koito LEDRCL-24L Truck All-LED Rear Combination Lamp, 3-Gang Type, Normal Turn, Left, Red, 24V, 1 pc. Koito】
Smart & Stylish

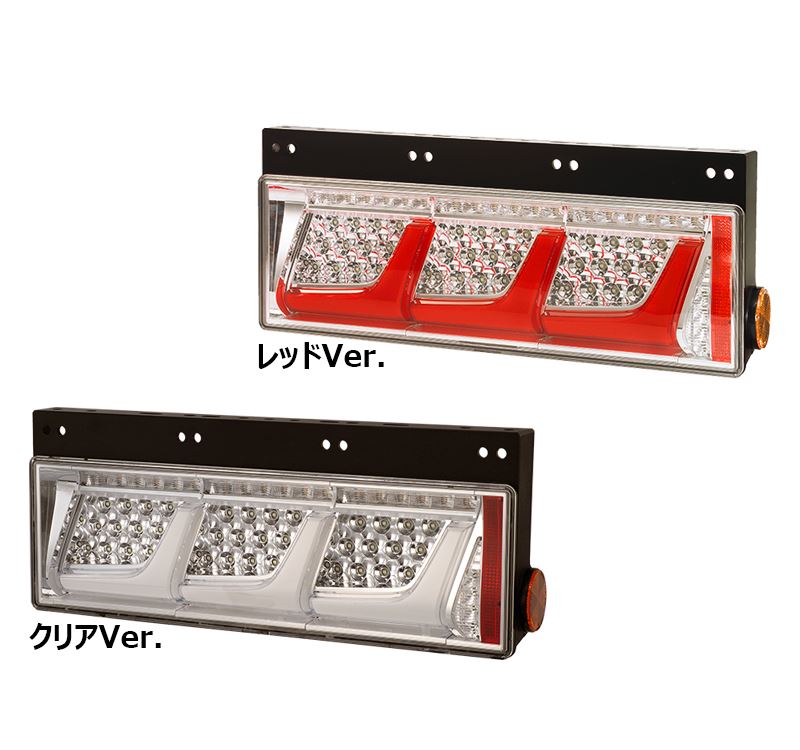

Now available with a clear inner lens version.
Provides a clear appearance when not illuminated.
The range of choices has expanded beyond the Red Ver. (red inner lens).
【UN ECE certified product】

●Can also be installed on small trucks (24V vehicles).
●By using LEDs (instantaneous illumination is 0.3 seconds faster than incandescent bulbs),
following vehicles can recognize the truck 7m earlier when driving at 80km/h, reducing rear-end collisions.
★Regarding the integration into the 21W specification (excluding Mitsubishi Fuso)
The 3-gang type is currently sold in 25W and 21W specifications, but as of "June 1, 2021", it will be integrated into the 21W turn specification.
This is to improve the robustness of the electrical control system and the turn disconnection detection method standards (thresholds), which vary by manufacturer, by integrating into a lamp with the same power consumption as an incandescent bulb (21W).
We appreciate your understanding and cooperation.
(1) Applicable products: 3-gang type (normal turn/sequential turn specifications) *Yabusame, 2-gang type, and Kabuki designs are excluded.
(2) Applicable manufacturers: Hino Motors / Isuzu Motors / UD Trucks *Mitsubishi Fuso is excluded.
(3) Start date: June 1, 2021 ~
*Please use the 25W specification for Mitsubishi Fuso vehicles.
*Sales of the 25W specification will continue for repair and replacement.
【Precautions for repair and replacement】

For repair and replacement (one side) of vehicles equipped with the 25W specification, be sure to install the 25W specification.
If a different specification is installed, the turn signal flashing speed will not match, resulting in non-compliance with regulations.
Depending on the model year of the vehicle and the combination of LED rear combination lamps, installation may not be possible.
Please check the compatible vehicle models and necessary options from the following.
Please note that this compatibility table is reference information based on Koito Manufacturing's own research and does not guarantee compatibility.
Therefore, after installation on the vehicle, perform an operation check and use it in a way that does not violate automobile-related laws and regulations such as safety standards.
Specifications:
・Type: Normal turn
・Side: Left
・Color: Red
・Rating: 24V
・Tail: 2.0W
・Stop: 7.6W
・Turn: 25.5W
・Back: 3.2W
・Vinyl tube color (right/left): Black/Gray
・Quantity: 1 pc.
Precautions:
●These LED rear combination lamps and optional parts are intended for vehicles sold after 2010.
●Warranty is not applicable if installed on a trailer (towed vehicle).
●After installing these LED rear combination lamps, always check that the disconnection detection function (provided in the vehicle)
mandated by safety standards operates correctly.
If the disconnection detection function does not operate correctly, it will be a violation of regulations and cannot be used.
●Before purchasing, please check the installation space. If there is not enough space, installation is not possible.

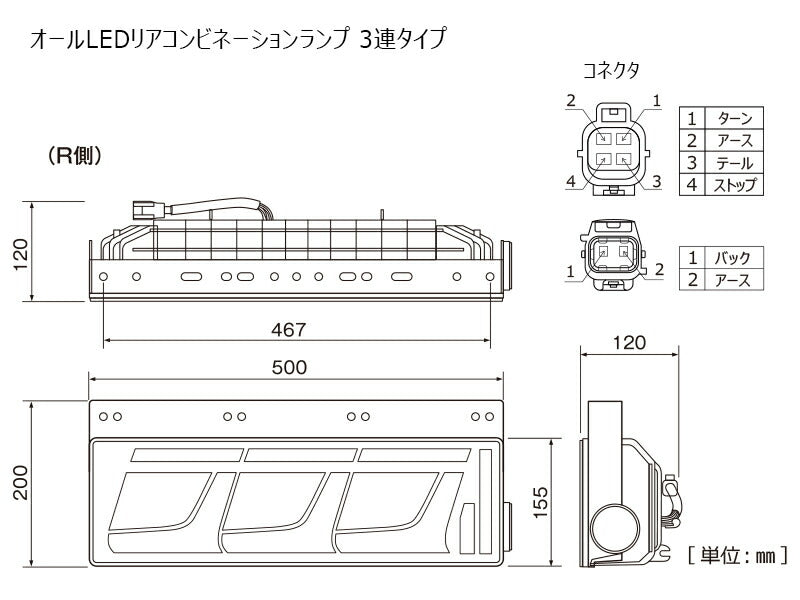

(Please check the lamp dimensions on this page or in the "Smart Truck Lamp Series" catalog.)
●If a warning canceller is used, power saving may be compromised.
●For classification of large, medium, and small vehicles, please check the vehicle inspection certificate provided with your vehicle.
●In case of damage, ASSY replacement is required.
●Even when the lamp is in normal condition, the inside of the lens may temporarily fog up due to rain or car washing.
This is the same phenomenon as window glass fogging in the rain, and there are no functional problems.
●To always use and install this product in the best condition, please be sure to read the "Instruction Manual"
and "Precautions for Use" included with the product carefully and use it correctly after understanding the contents.
●This product is exclusively for automobiles. Do not use it for anything other than automobiles.
Furthermore, we are not responsible for any malfunctions or other issues that occur when used for purposes other than the specified applicable uses.
●Please use it in a way that does not violate automobile-related laws and regulations such as safety standards.
●Specifications and production are subject to change or discontinuation without notice. Please be aware of this in advance.
*The actual specifications may differ between left and right.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware of this.
