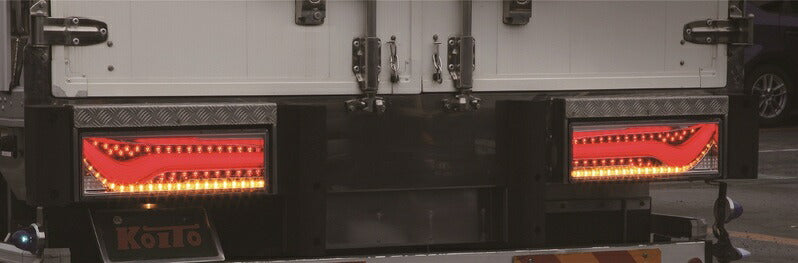

Truck All-LED Rear Combination Lamp, Kabuki Design, Sequential Turn, Right, Red, 24V, 1pc.

【KOITO Koito LEDRCL-24RSK All-LED Rear Combination Lamp for Trucks, Kabuki Design, Sequential Turn, Right, Red, 24V, 1 pc, Koito】
Smart & Stylish
A new design with a fresh Kabuki-style motif that commands presence.
■Normal turn specifications now available!
You can choose between normal and sequential turn patterns.
【UN ECE approved product】

●Enhanced presence and appeal.
●Unique light design inspired by Kabuki kumadori makeup.
●Can be installed on light trucks (24V vehicles).
●Lenses made of crack-resistant polycarbonate resin.
●LED lighting (0.3 seconds faster than incandescent bulbs) allows following vehicles to recognize you 7m earlier at 80Km/h, reducing rear-end collisions.
Depending on the vehicle's model year and the combination of LED rear combination lamps, installation may not be possible.
Please check the compatible vehicles and necessary options below.
Please note that this compatibility table is reference information based on Koito Manufacturing Co., Ltd.'s own research and does not guarantee compatibility.
Therefore, after installing the product on your vehicle, please confirm its operation and use it in a way that does not violate automotive laws and regulations, such as safety standards.
Specifications:
・Type: Sequential Turn
・Side: Right
・Color: Red
・Rated Voltage: 24V
・Tail: 2.8W
・Stop: 7.9W
・Turn: 21.0W
・Reverse: 8.4W
・Vinyl Tube Color: Black
・Quantity: 1 pc
Precautions:
●These LED rear combination lamps and optional parts are intended for vehicles sold in 2010 or later.
●Warranty will be void if installed on trailers (towed vehicles).
●After installing these LED rear combination lamps, please ensure that the wire breakage detection function (built into the vehicle) required by safety standards operates correctly.
If the wire breakage detection function does not operate correctly, it will be a violation of regulations and installation is not permitted.
●Before purchasing, please check the installation space. If there is not enough space, installation is not possible.
(Please check the lamp dimensions on this page or in the "Smart Truck Lamp Series" catalog.)
●If you use a warning canceller, power saving may be compromised.
●For classification of large, medium, and small vehicles, please refer to the vehicle inspection certificate provided with your vehicle.
●In case of damage, the entire assembly must be replaced.
●The inside of the lens may temporarily fog up due to rain or car washing.
This is the same phenomenon as windows fogging up in the rain and does not indicate a functional problem.
●This product does not have a built-in reflex reflector.
Please prepare a separate reflex reflector and install it within 400mm from the outermost edge of the automobile/
with the top edge of the reflex reflector within 900mm from the ground.
●To ensure the best condition and proper installation of this product, please thoroughly read the "Instruction Manual"
and "Usage Precautions" included with the product and use it correctly after understanding the contents.
●This product is exclusively for automobiles. Do not use it for anything other than automobiles.
Furthermore, we are not responsible for any malfunctions or issues that may arise from using it for purposes other than its intended application.
●Please use in a manner that does not violate automotive laws and regulations, such as safety standards.
●Specifications and production may be changed or discontinued without prior notice, so please be aware of this in advance.
*The actual specifications may differ from left to right.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
