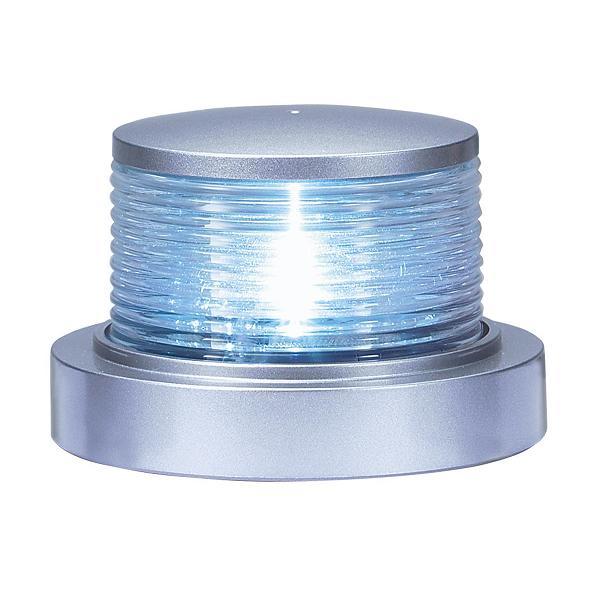

All-round White Light, Anchor Light, LED Small Boat Light, Silver x White, 12/24V, 2W

【KOITO MLA-4AB2S Class II Masthead Light, Anchor Light, LED Small Boat Light, Silver x White, 12/24V 2W, Pleasure Boat, Fishing Boat, Sailboat, Koito】
■High quality, low price
High-quality design based on 40 years of experience, realizing low prices through automatic assembly line adoption.
■Improved safety
Improved visibility from a distance through the use of high-lumen LEDs and specially designed optical lenses.
■Improved design
Compact design that fits perfectly with the hull, available in white and metallic silver.
■Improved weather resistance and corrosion resistance
Uses highly transparent acrylic resin, which does not deteriorate (discolor) the lens.
■Improved dust and water resistance
Lenses are ultrasonically welded to ensure airtightness.
(Protection class: IP56)
■Mounting compatibility, easy installation
Mounting pitch is the same as conventional products (*1), allowing for easy installation with attachments.
■Long life, power saving
Adopts high-efficiency, long-life LEDs, reducing power consumption.
(LED element life: 40,000 hours, power consumption: 1/10 *2)
*1: Excludes "Class II tricolor lights and Class II masthead lights".
*2: Compared to Koito Manufacturing light bulbs, the reduction rate varies depending on the type of boat light.
【Ministry of Land, Infrastructure, Transport and Tourism Type Approved Product】

【Japan Craft Inspection Organization Certified Product】

●This boat light complies with the "Type Approval Examination Standards for Boat Lights and Operating Signal Lights" revised on January 1, 2009 (mandatory application from January 1, 2014).
●From January 1, 2014, when installing boat lights, including for repair and replacement, please use this product (new regulation compliant product). However, if only replacing a light bulb, you may continue to use conventional products.
●Please note that the "Installation Position" diagram illustrates all products in the lineup for installation position explanation purposes.
Specifications:
・Body color: Silver
・Light color: White
・Light source type: LED
・Rating: 12/24V 2W
・Visibility range (nautical miles): 2
・Horizontal light angle (degrees): 360
・Vertical light angle (degrees): 50
・Luminous intensity (cd or more): 4.3
・Type approval number: No. 5178
・Applicable vessels: Pleasure boats, fishing boats, sailboats
Notes:
*Class II tricolor lights and Class II masthead lights are applicable to sailboats under 12m in length.
*Two Class II red lights are required. (Excluding vessels under 12m in length)
Also, these are to be displayed when the vessel is not under command, and should not be used for any other purpose.
*Class II red lights are light bulb replaceable, so please be careful about bulb failure.
When replacing a light bulb, please use a repair light bulb specifically for boat lights manufactured by Koito Manufacturing.
●To ensure this product is always used and installed in the best possible condition, please be sure to read the "Instruction Manual" included with the product carefully and use it correctly after understanding its contents.
After installation, regularly inspect the product, and pay particular attention to LED failure.
●Navigating with a dirty lens is dangerous and may prevent the product from functioning adequately, so please be careful.
●If the LED of the boat light fails or is damaged, the entire assembly must be replaced.
●Please note that the specifications and production of this product may change or be discontinued without prior notice.
*Images are for illustration purposes, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
