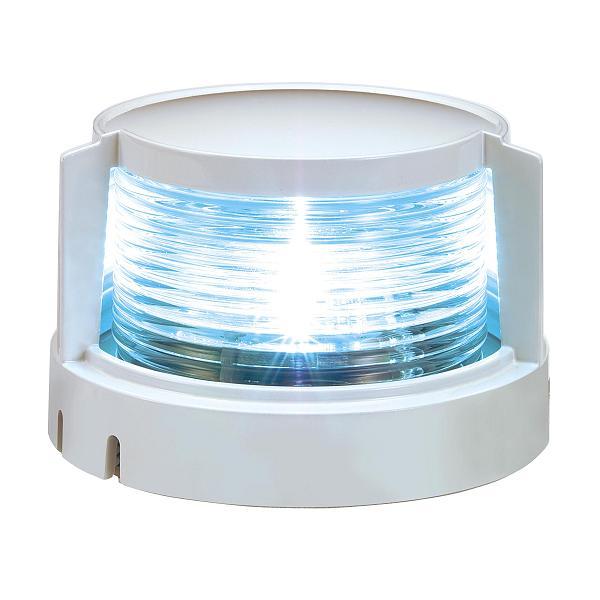

Stern Light - Standlight LED Small Vessel Light White x White 12/24V 2W

【KOITO Koito MLS-4AB2 Sternlight (Rear Light) for Small LED Vessels, White x White, 12/24V, 2W, for Pleasure Boats, Fishing Boats, Sailing Vessels】
■High Quality, Low Price
High-quality design based on 40 years of experience, combined with automated assembly lines, achieves a low price.
■Improved Safety
High-luminous-flux LEDs and specially designed optical lenses improve visibility from a distance.
■Enhanced Design
Compact design for a perfect fit on any vessel, available in white and metallic silver.
■Improved Weather and Corrosion Resistance
Highly transparent acrylic resin used for the lens prevents degradation (discoloration).
■Improved Dust and Water Resistance
Lens is ultrasonically welded to ensure airtightness.
(Protection class: IP56)
■Mounting Compatibility & Easy Installation
Mounting pitch is the same as conventional products (*1), allowing for easy installation with attachments.
■Long Life & Power Saving
High-efficiency, long-life LEDs reduce power consumption.
(LED element life: 40,000 hours, power consumption: 1/10 *2)
*1: Excludes "Type 2 Tricolor Light and Type 2 White Light".
*2: Compared to Koito Manufacturing light bulbs; reduction rate varies depending on the type of marine light.
【Approved by Ministry of Land, Infrastructure, Transport and Tourism】

【Approved by Japan Craft Inspection Organization】

●This marine light complies with the "Type Approval Examination Standards for Marine Lights and Steering Signal Lights" revised on January 1, 2009 (mandatory application from January 1, 2014).
●From January 1, 2014, when installing marine lights, including for repair or replacement, please use this product (compliant with new regulations). However, if only replacing a bulb, you may continue to use conventional products.
●The diagram "Installation Position" illustrates all available lineups for explanation of installation positions. Please be aware of this.
Specifications:
・Body color: White
・Emitting color: White
・Light source type: LED
・Rating: 12/24V 2W
・Visibility range (nautical miles): 2
・Horizontal beam angle (degrees): 135
・Vertical beam angle (degrees): 50
・Luminous intensity (cd or more): 4.3
・Type approval number: No. 5182
・Applicable vessels: Pleasure boats, fishing boats, sailing vessels
Notes:
※Type 2 Tricolor Light and Type 2 White Light apply to sailing vessels less than 12m in length.
※Two Type 2 Red Lights are required (excluding vessels less than 12m in length).
Also, they should be displayed when the vessel is restricted in its ability to maneuver, and should not be used for any other purpose.
※Type 2 Red Light is a bulb-replaceable type; please be careful of bulb failure.
When replacing bulbs, please use replacement bulbs specifically for marine lights manufactured by Koito Manufacturing.
●To ensure this product is always used and installed in the best condition, please carefully read the "Instruction Manual" included with the product and use it correctly after understanding its contents.
After installation, regularly inspect the product, especially paying attention to any LED failure.
●Operating the vessel with a dirty lens is dangerous and may not provide sufficient functionality, so please be careful.
●In case of LED failure or damage to the marine light, the entire assembly must be replaced.
●Specifications and production of this product are subject to change or discontinuation without prior notice. Please be aware of this.
※Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
