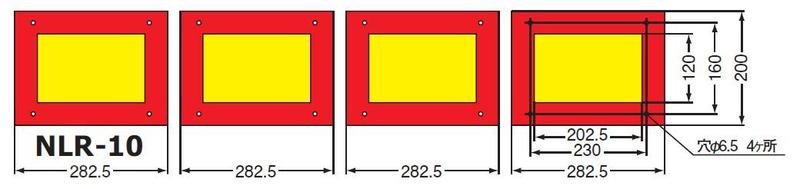

Large Rear Reflector Set for Trailers, Framed, 4-Piece Type

【KOITO Koito NLR-4ASN Large Rear Reflector Set for Trailers, Framed Type, 4-Split Type, Reflector, Koito】
Diamond Grade UN Parts Certified (UN R70)
*Do not install on passenger cars with a capacity of 9 people or less.
■According to safety regulations, commercial vehicles with a gross vehicle weight of 7t or more are obligated to install "large rear reflectors". For vehicles produced on or after September 1, 2011, installation of products that satisfy the technical requirements of UN R70 is mandatory.
【Regarding partial revisions to the "Road Transport Vehicle Safety Standards," etc.】

On January 30, 2007, the official gazette announced that the "Agreement concerning the adoption of uniform conditions for periodical technical inspections of wheeled vehicles and the reciprocal recognition of such inspections (Regulation No. 70)" (UN R70) would be adopted from April 1, 2007 (mandatory application for vehicles produced on or after September 1, 2011).
Accordingly, the "Road Transport Vehicle Safety Standards" (Ministry of Transport Ordinance No. 67 of 1951), "Notification stipulating the details of the Road Transport Vehicle Safety Standards" (Ministry of Land, Infrastructure, Transport and Tourism Notification No. 619 of 2002), etc., were revised.
●The types of reflectors to be used are limited to "striped (zebra) type" for trucks and tractors, and "framed type" for trailers.
●Changes in installation requirements (*See "Installation Position" below)
Height: Upper edge 1.5m or less → Lower edge 0.25m or more above ground, upper edge 1.5m or less above ground (however, if installation is difficult due to the structure of the vehicle, 2.1m or less)
●Enlargement
Rectangle with sides of 130mm or more, Reflective area: 800cm2 or more, Fluorescent area: 400cm2 or more → Length (total for 2 or 4 pieces) 1,130mm to 2,300mm
・For trucks/tractors: Width: 140±10mm, Stripe width: 100±2.5mm
・For trailers: Width: 200 +30/-5mm, Border: 40±1mm
●Improved reflective properties
Retroreflective coefficient 122cd/lx/m2 → 300cd/lx/m2 (2.5 times current)
*Only sets are listed. For individual items, please refer to the auto accessory catalog.
Specifications:
・Type: Framed type
・Split: 4-split type
・Ministry of Land, Infrastructure, Transport and Tourism Device Type Approval Number: RR E43 010008
・Device Number: 250-11671
・Description: For trailers
*Images are for illustration purposes only, and the design and specifications of the products listed are subject to change without notice. Please understand.
