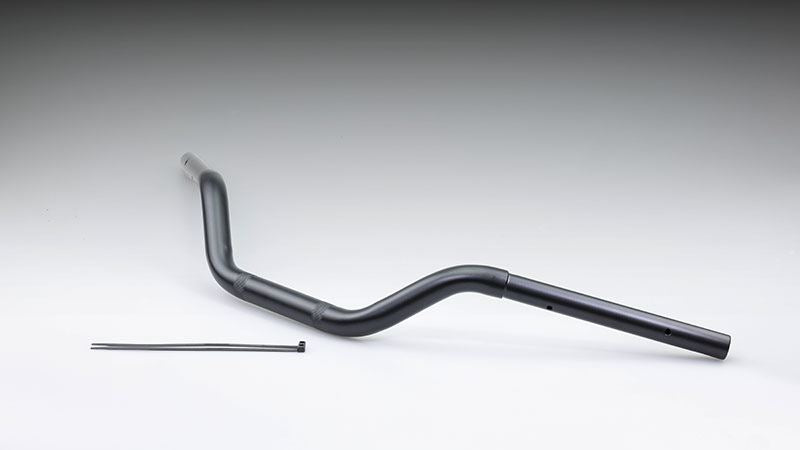

【Kijima 204-3400 Fifty Handlebar + Matte Black Rebel 250/S Handlebar Motorcycle Parts KIJIMA】
■Product Description
The 2025 model of the Rebel 250S features a handlebar 17.8mm shorter in width, 6.5mm closer to the rider, and 5.6mm higher than models prior to 2024, with a 1-degree increase in pullback angle.
Additionally, a stepped handlebar has been newly adopted, with a 25.4mm handlebar diameter and only the grip area at 22.2mm.

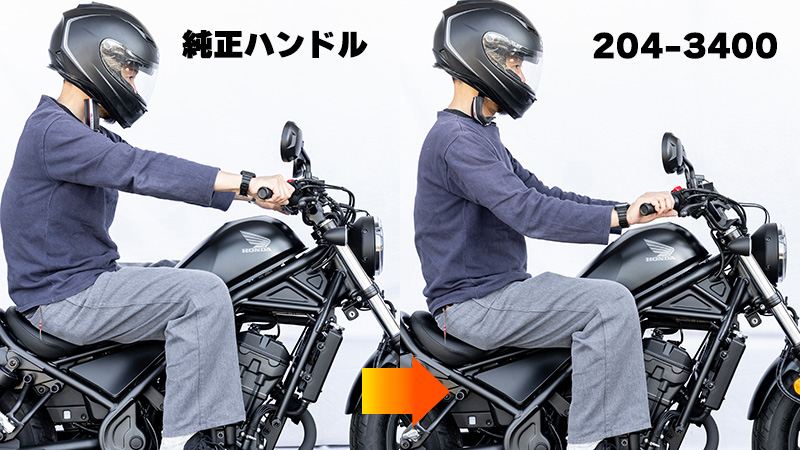

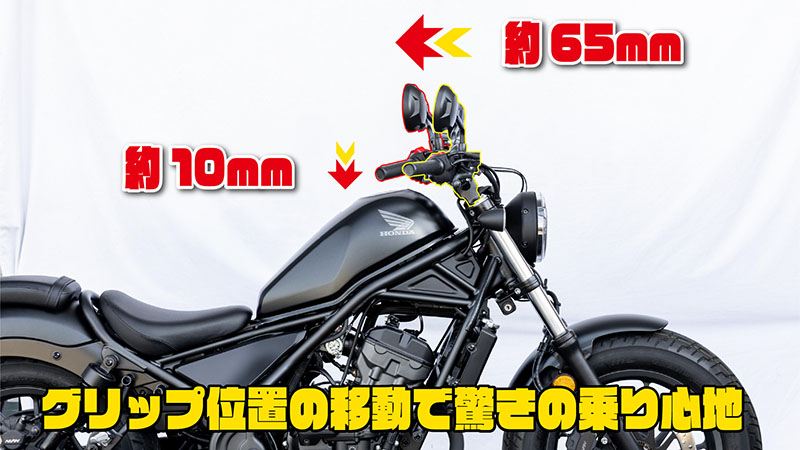

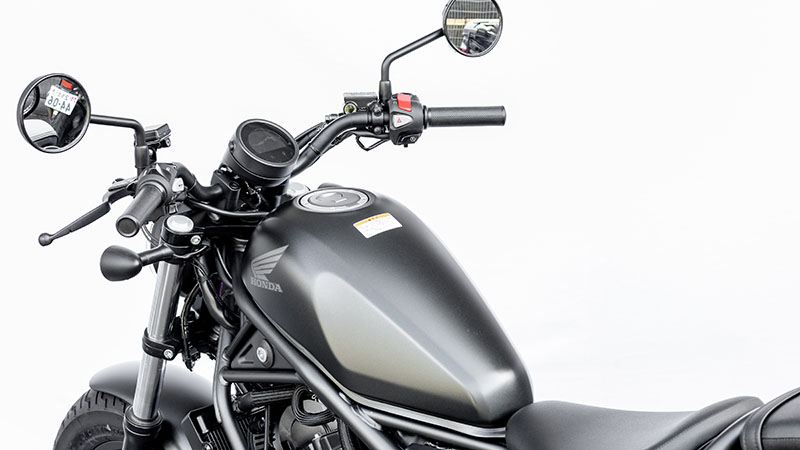

This product achieves an exquisite grip position, approximately 65mm back and 10mm lower than the genuine handlebar.
It's a bolt-on design that meets safety standards and requires no structural modifications.
The rotation stop hole for the genuine holder and positioning punch marks are noted.

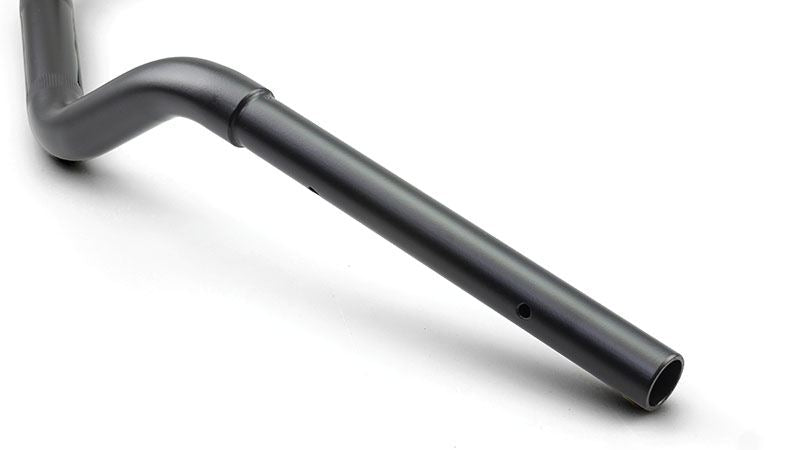

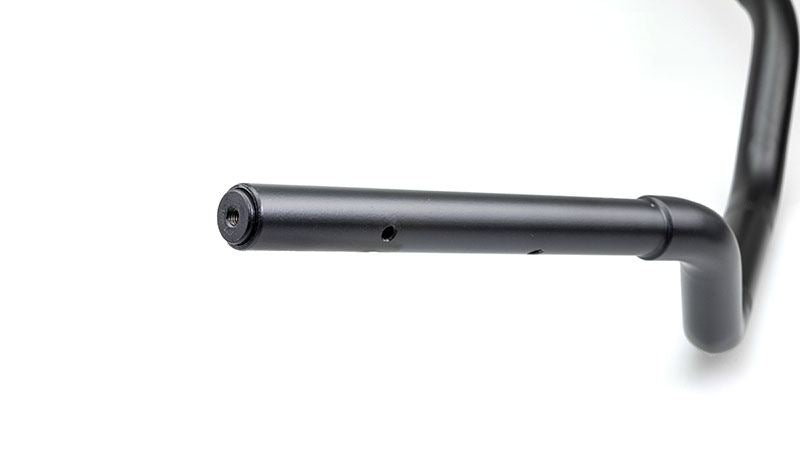

M6 threads are inserted into both ends of the handlebar to allow the use of genuine bar ends.
■Compatible Models
HONDA
Rebel250/S (BBK-MC49) 2025-
■Specifications
Color: Matte Black

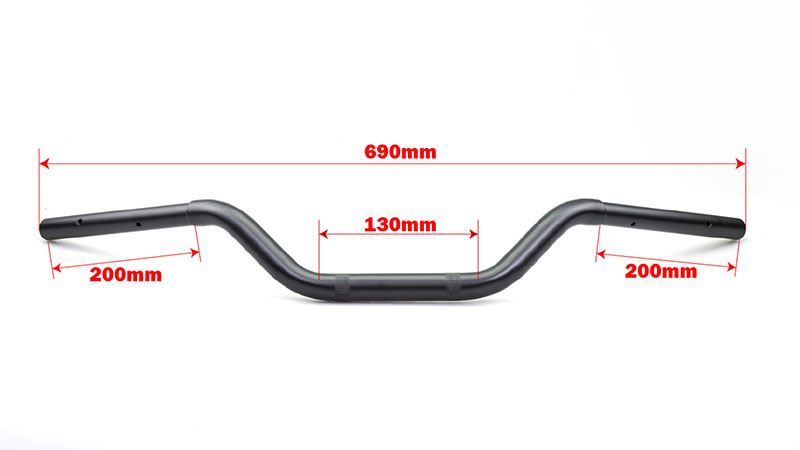

W (Overall Width): 690mm

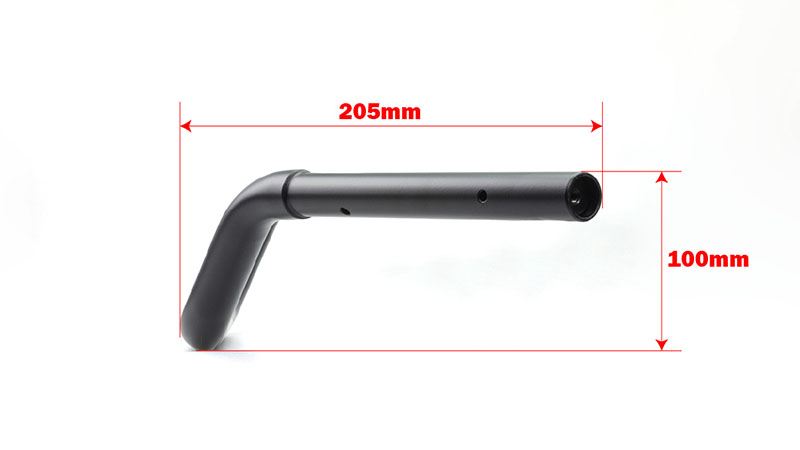

H (Height): 100mm
R (Pullback Amount): 205mm
L (Clamp Width): 130mm
Clamp Diameter: 25.4mm
Grip Diameter: 22.2mm
Material: Steel
■Notes
*Images are for illustration purposes only. They may include products with different sizes or colors.
*Product design and specifications are subject to change without notice. Please understand.
*Installation requires replacing the clutch wire (sold separately). (For standard vehicles: 202-9996 / For E-clutch vehicles: 202-9997)
*For installation on E-clutch models, ensure the clutch cable adjustment is within the specified range in the genuine service manual. If an error code (P1735-00) appears, please consult your dealer.
*Grips are generally reusable, but may need to be replaced if necessary.
*Genuine optional grip heaters (08T73-K2Y-J40/08T70-K2Y-T40) can be installed. For Kijima grip heaters, please use those compatible with 120mm grip length and 22.2mm diameter.
