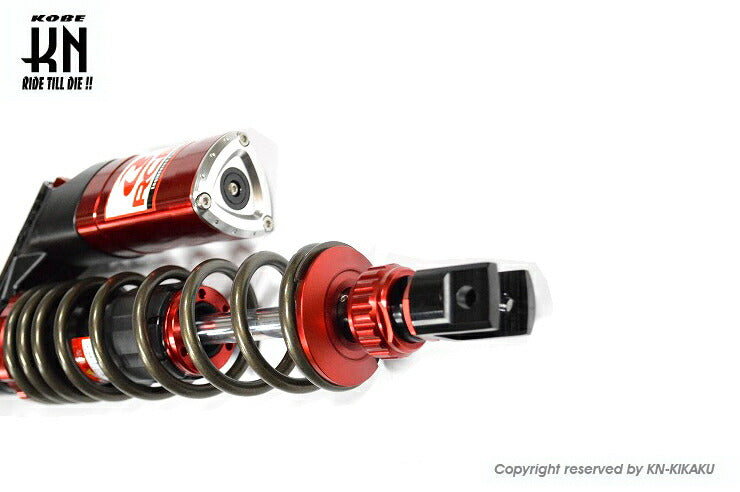

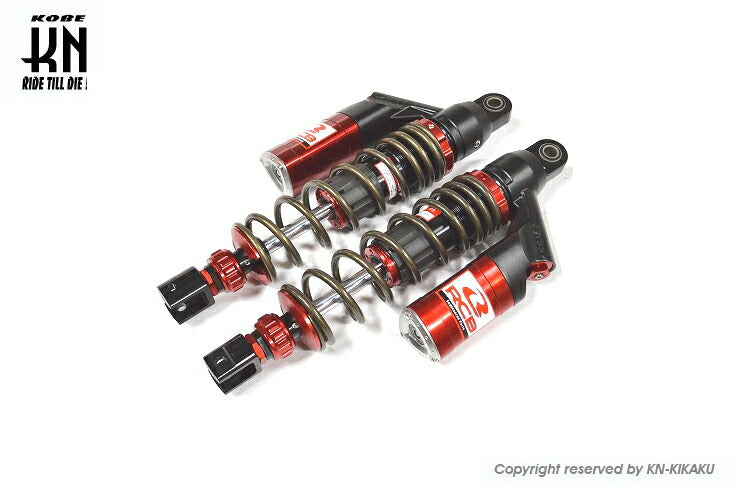

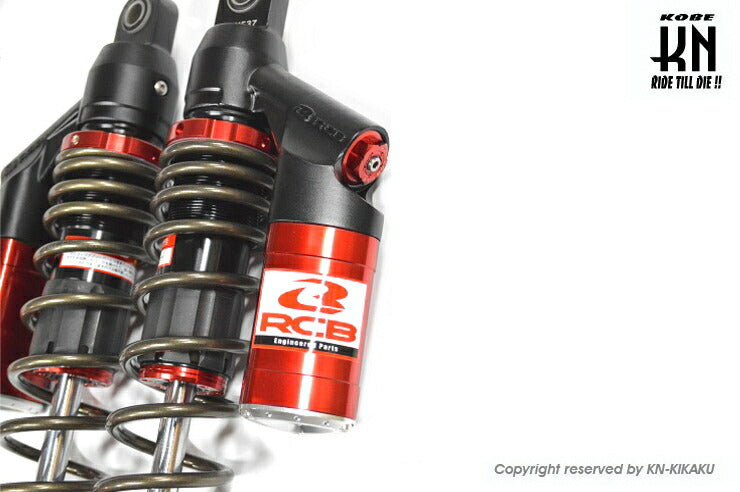

RCB Rear Shock with Damping Adjustment DB-5 Red/Bronze 348-353mm XMAX250/300 PCX

【KN企画 01A0134T RCB Rear Shock Absorber with Damping Adjustment DB-5 Red/Bronze 348-353mm XMAX250/300 PCX】
・RCB 348-353mm Rear Shock Absorber with Damping Adjustment 【XMAX250/300】
DB-5
【Features】

・Genuine product from the Malaysian custom manufacturer 【Racing Boy】.
・Double damping adjustment type 【Rebound side 40 steps, Compression side 28 steps adjustment】

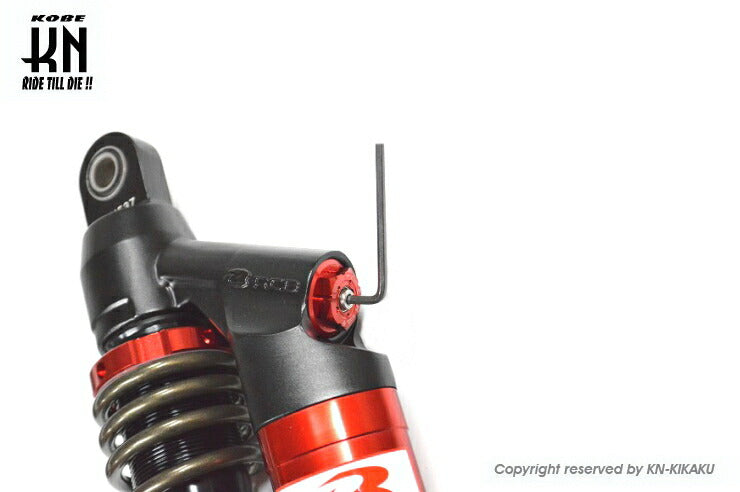

・Stepless initial adjustment
・Set screw with anti-loosening feature
・Initial adjustment wrench included
・Conversion collar included
・Adjustable from 348mm to 353mm by ride height adjustment, with an adjustment range of 5mm.
【Color】
Spring/Bronze, Gas Tank/Red
【Size】

・Overall length 348-353mm
・Upper mounting hole 【Inner diameter】
14mm
・Lower mounting hole 【Inner diameter】
8mm
*A collar to change the inner diameter from 14mm to 10mm is included.
【Compatibility】

・XMAX250 【BG6】
2018～Domestic specifications
・XMAX300 【B74】
2017～
・PCX125 【JF81】

・PCX150 【KF30】

・PCX125 Hybrid 【JF84】

【Notes】

*The rebound may interfere with the genuine rear fender.
*When installing on PCX JF81 and JF84, we recommend using a fender eliminator kit as the fender will interfere with the reservoir tank.
*Even with a fender eliminator kit, if the reservoir tank interferes with the fender eliminator stay, processing will be required.
*KN企画 is an authorized RCB distributor. Parallel imported products may differ in accessories and specifications.
*Images are for illustration purposes only, and the design and specifications of the products listed are subject to change without notice. Please understand.
