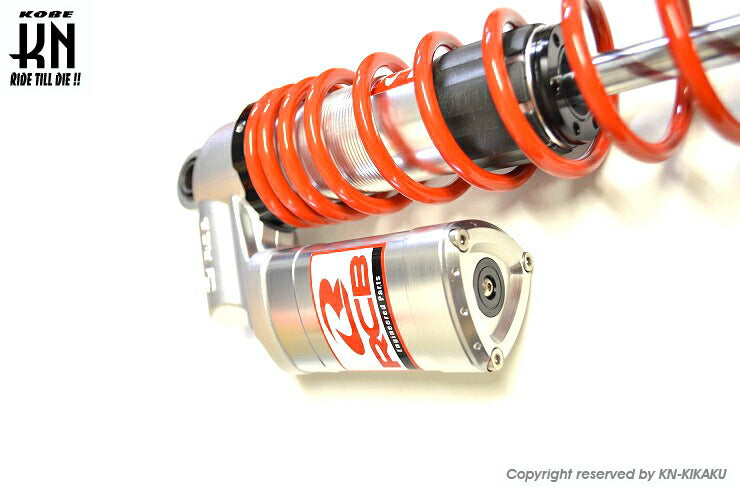

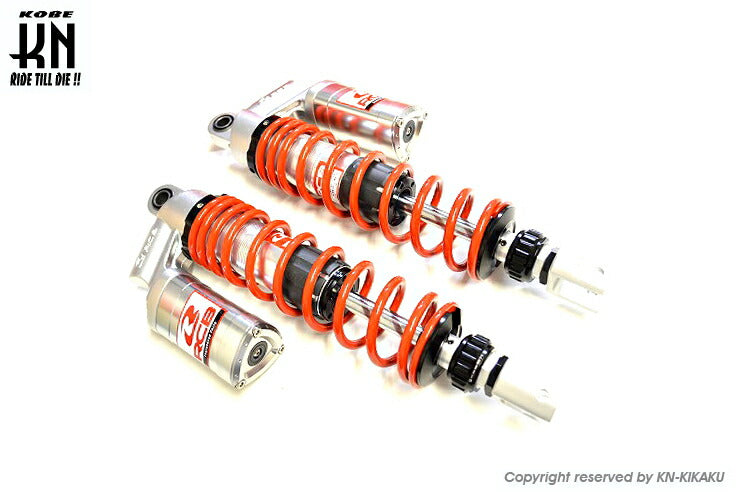

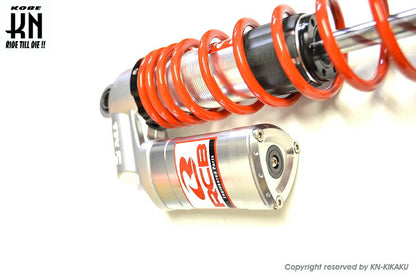

RCB Rear Shock Absorber with Damping Adjustment SB-5 Silver/Red 348-353mm XMAX250/300 PCX

【KN Planning 01A0136R RCB Rear Shock with Damping Adjustment SB-5 Silver/Red 348-353mm XMAX250/300 PCX】
・RCB 348-353mm Rear Shock Damping Adjustment 【XMAX250/300】
SB-5
【Features】

・Genuine product from Malaysian custom manufacturer 【Racing Boy】.
・Damping adjustable 【40 levels】

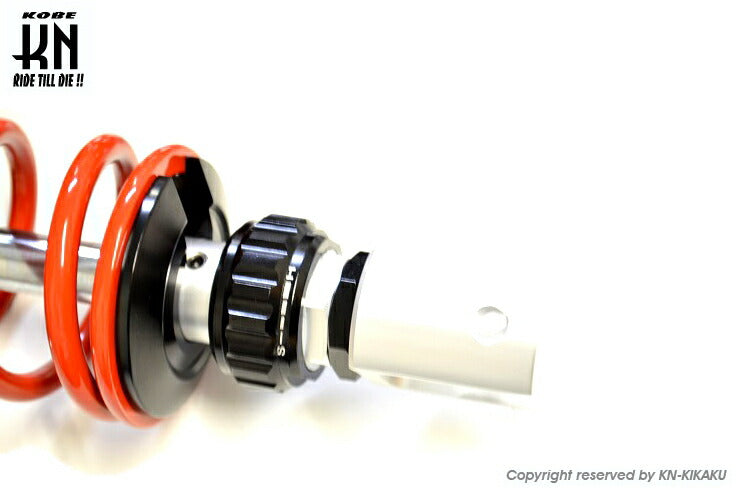

・Stepless initial adjustment
・Includes grub screw to prevent loosening

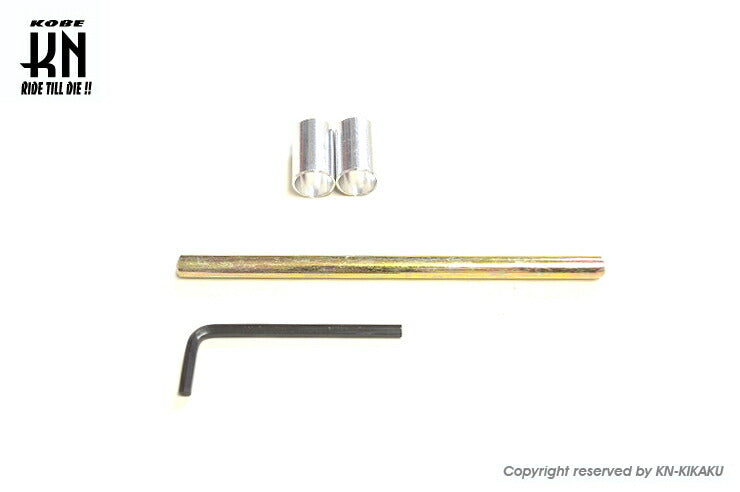

・Includes initial adjustment wrench
・Includes conversion collar
・Ride height adjustment allows for adjustment from 348mm to 353mm, with an adjustment range of 5mm.
【Color】
Spring/Red, Gas Tank/Silver
【Size】

・Overall length 348-353mm
・Upper mounting hole 【Inner diameter】
14mm
・Lower mounting hole 【Inner diameter】
8mm
*Includes a collar to change the inner diameter from 14mm to 10mm
【Compatible Models】

・XMAX250 【BG6】
2018~ (Domestic specifications)
・XMAX300 【B74】
2017~
・PCX125 【JF81】

・PCX150 【KF30】

・PCX125 Hybrid 【JF84】

【Notes】

*Rebound may interfere with the genuine rear fender.
*For installation on PCX JF81 and JF84, we recommend installing a fender eliminator kit as the fender may interfere with the reservoir tank.
*Even with a fender eliminator kit, if the reservoir tank interferes with the fender eliminator stay, processing may be required.
*KN Planning is an authorized RCB distributor. Accessories and specifications may differ from parallel import products.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
