RCB Forged Master Cylinder S1 Left Gray 17mm Universal

[KN Planning 01BP015T RCB Forged Master Cylinder S1 Left Gray 17mm Universal]

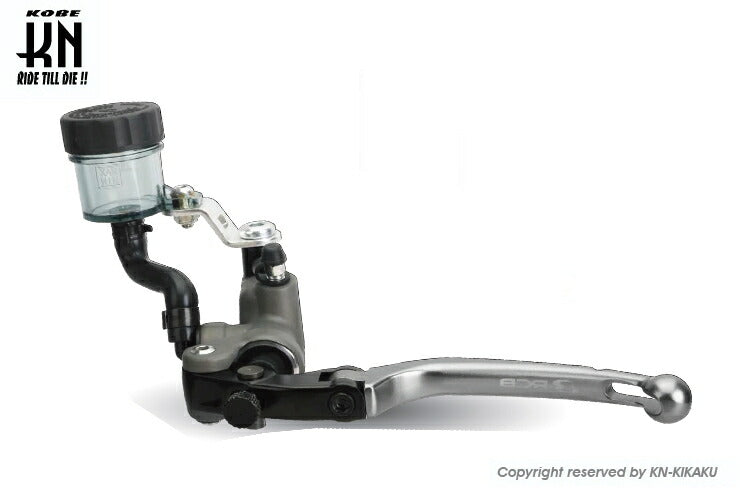

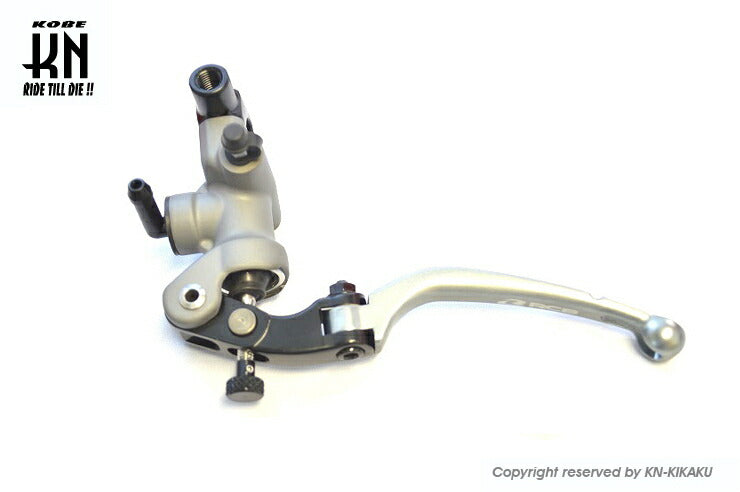

・RCB Forged Radial Pump Master Cylinder Universal [17mm]
Left
[Features]

・This is a universal radial pump master cylinder with a 17mm piston diameter.

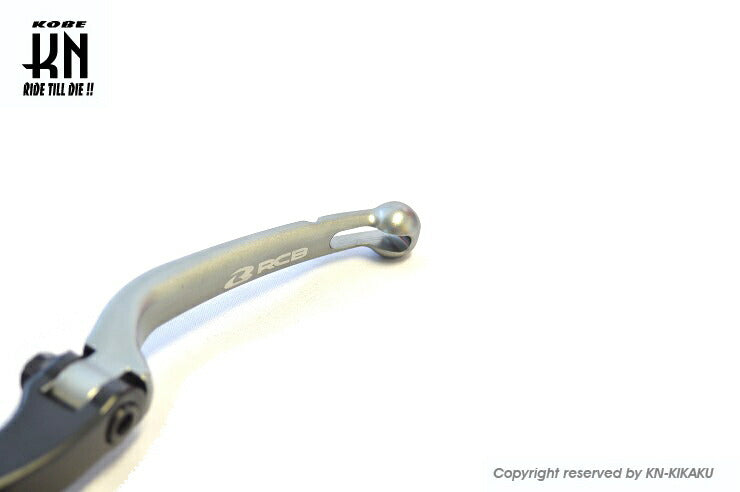

・The lever has a foldable structure, which is strong against breaking and bending in the event of a fall.
・It can be used to increase braking capacity, for repairs, or as a replacement part.
・It can be installed on handlebars with a diameter of 22.2mm.

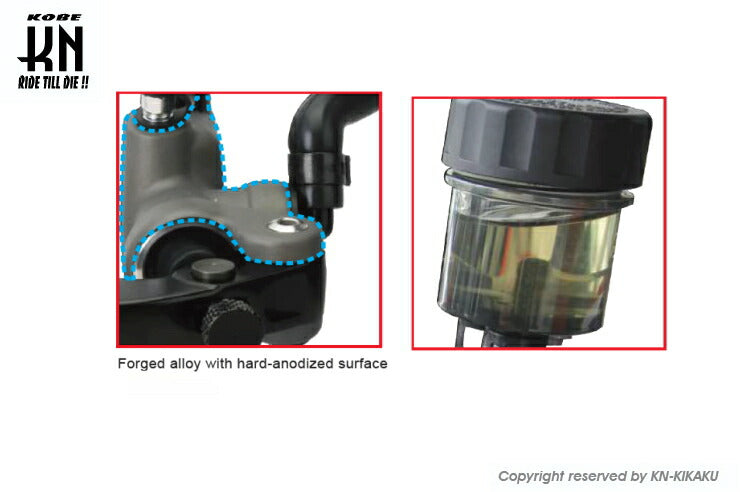

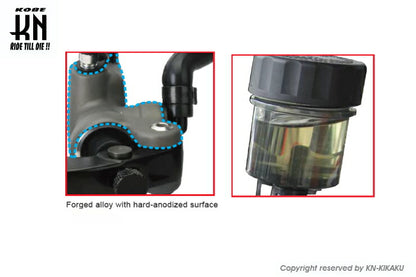

・The fluid reservoir is made of clear resin, making it easy to check the oil level.
・The screw hole on the reservoir holder is M10 right-hand thread.
・When installing a rearview mirror, it will be tightened together with the reservoir holder.
・Brake lever adjustment is stepless.
[Type]
Left side
[Color]
Gray
[Size]

・Reservoir holder: M10 Right-hand thread

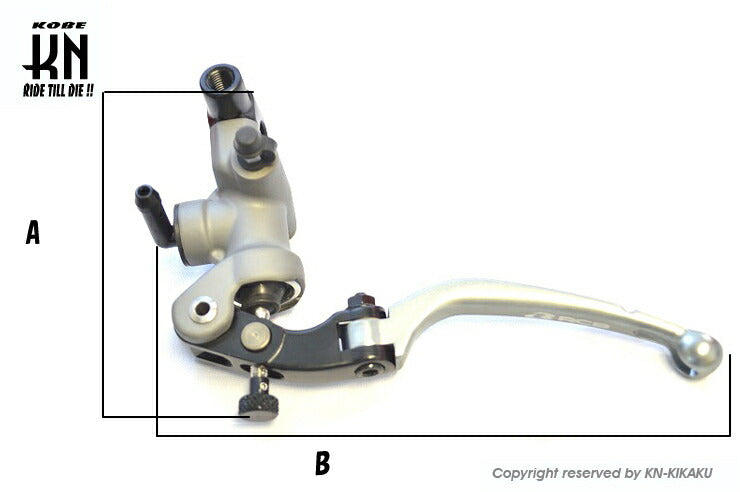

・A=120mm
・B=190mm
[Compatibility]

・Universal
[Set Contents/Accessories]

・Master cylinder body x 1
・Brake lever x 1
・Washer x 2

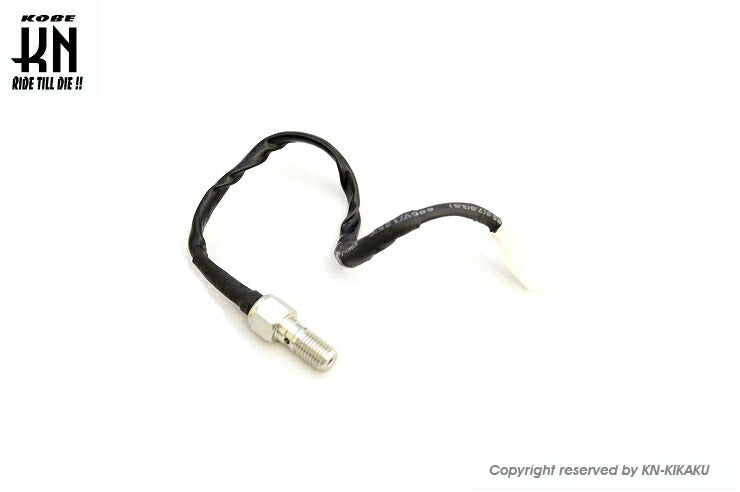

・Banjo bolt with hydraulic pressure switch x 1
[Precautions]

*This product is universal. It is not designed specifically for any particular vehicle model.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
