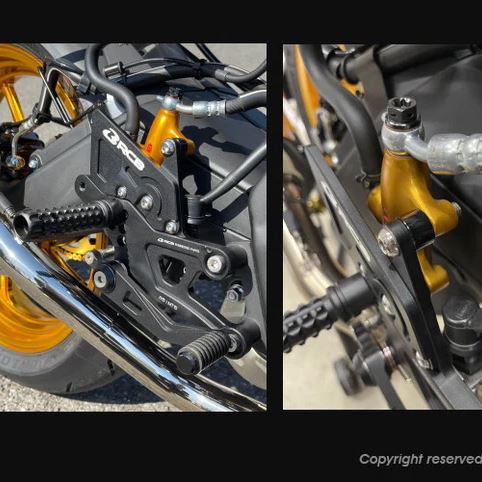

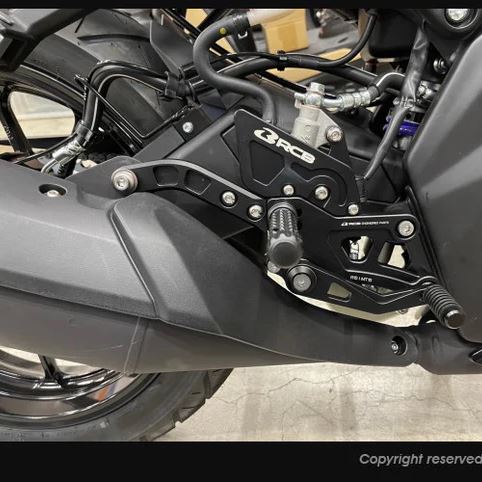

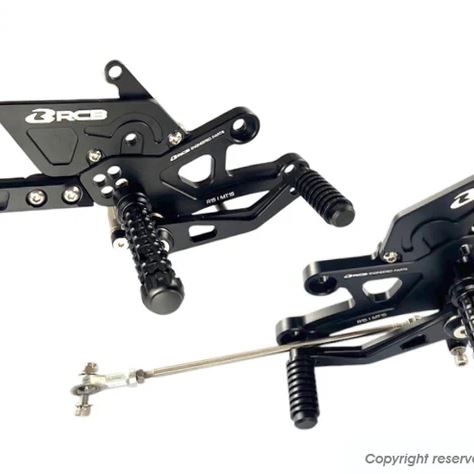

RCB Aluminum Rear Set Black YZF-R15 YZF-R125 MT125

【KN Planning 01FR040B-KN RCB Aluminum Rear Sets Black YZF-R15 YZF-R125 MT125 Motorcycle Parts】
These are V2 rear sets manufactured by RCB, a Malaysian manufacturer well-known in MotoGP.
This V2 product has been improved for both race use and street use.
The simplified structure allows for smooth installation.
The footpeg position is determined from data based on various uses.
The footpeg bar mounting position is adjustable in 5 places. Please adjust to your preference.
The muffler stay can be removed, making it useful when creating an upswept muffler.
Compared to the stock position, the footpeg position is as follows:
Moves approximately 15mm to 30mm rearward
Moves approximately 25mm to 50mm upward

Compatible Models
YAMAHA YZF-R15 [BVC] Japanese specification
YAMAHA YZF-R125 [BVD] Japanese specification
YAMAHA MT125 [BVE] Japanese specification
*Confirmed installation on domestic models.
*For overseas specifications such as R15V3/V4, adjustments or modifications may be required for installation.

Specifications
Color: Black

■Image Notes
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please understand.

Precautions
*Installation of genuine optional quick shifter is possible, but rod adjustment is required.
*Adjustment is required for installation of the shift rod section, brake/shift pedal section, and footpeg section.
*Genuine brake switch can be installed.
*Depending on your desired installation method, the bolt length, etc., may need to be changed.
*Reverse shifting is not supported as the rod interferes with the kit as is. Please deal with it by processing, etc.
*Our genuine RCB products are shipped in a pre-assembled state to prevent incorrect assembly. Since it is pre-assembled, please be sure to tighten all fasteners.
*This product takes approximately 7 days for delivery.
