UmaRacing Racing Big Throttle Body Kit 42Φ Y15ZR/EXCITER150/SNIPER150/MXKING150 Motorcycle

【KN Planning 02TB0006-KN UmaRacing Racing Big Throttle Body Kit 42Φ Y15ZR/EXCITER150/SNIPER150/MXKING150 Motorcycle】

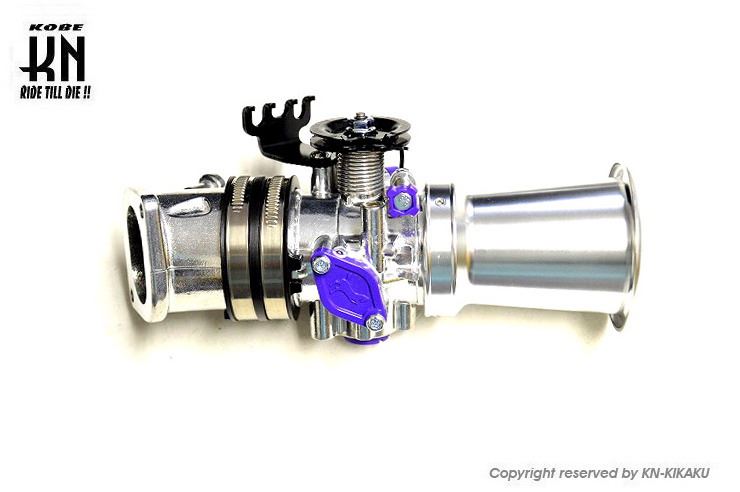

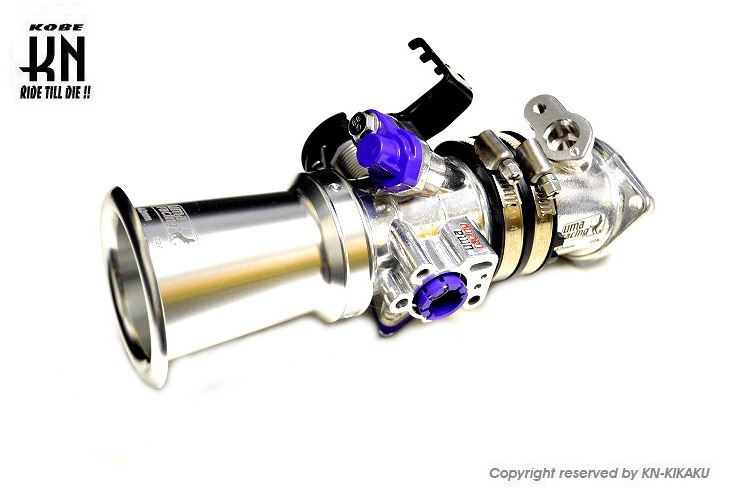

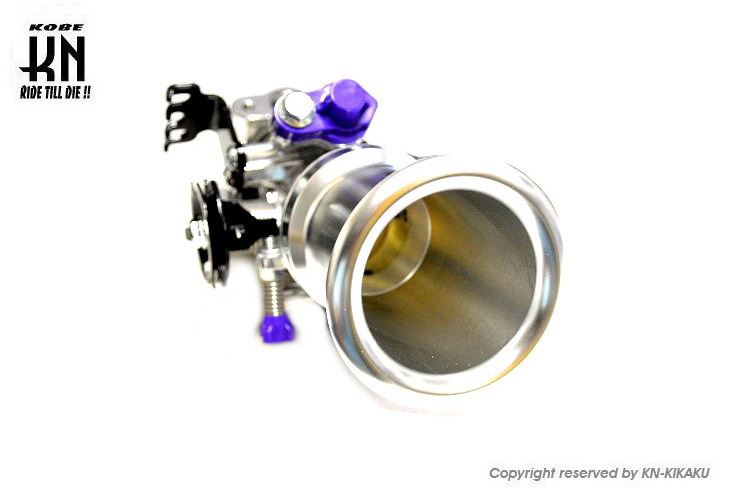

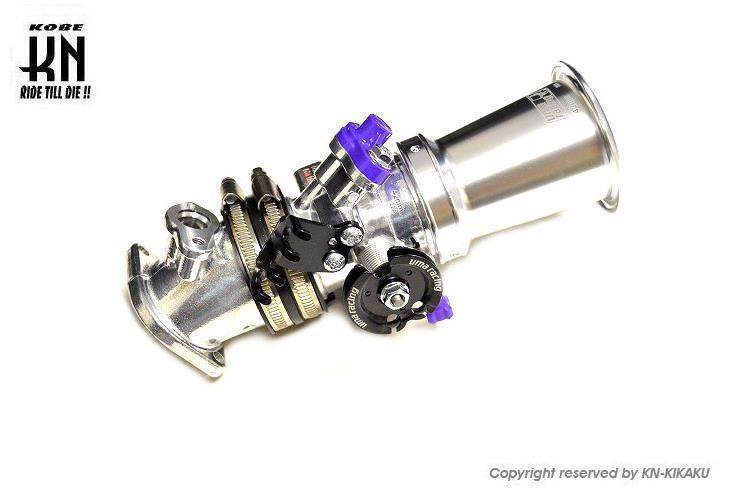

■This is a 42mm racing type BIG throttle body kit.
The throttle body has an injector mounting section, allowing for twin injector conversion.
The ISC mounting section has been eliminated and an air screw has been installed, allowing for simple idle adjustment.
It can also be diverted to models such as the Cygnus Gryphus!
Although modification is required, it has been successfully installed on KN Planning's GSX-R125 racer.
Specifications
Size
Throttle valve diameter: 42mm
Engine side mounting outer diameter: 52mm
Funnel side mounting outer diameter: 52.5mm
Funnel length: Approximately 90mm
Funnel outer diameter: 77mm
Intake manifold mounting pitch: Approximately 64mm
■Compatible models
YAMAHA Y15ZR/EXCITER150/SNIPER150/MXKING150
*Limited to models with a manifold mounting pitch of 64mm, even for the above models.
Set contents
Throttle body x 1
Funnel x 1
Intake manifold x 1
Insulator & band x 1 set
*Images are for illustration purposes only. The design and specifications of the products shown may change without prior notice. Thank you for your understanding.
