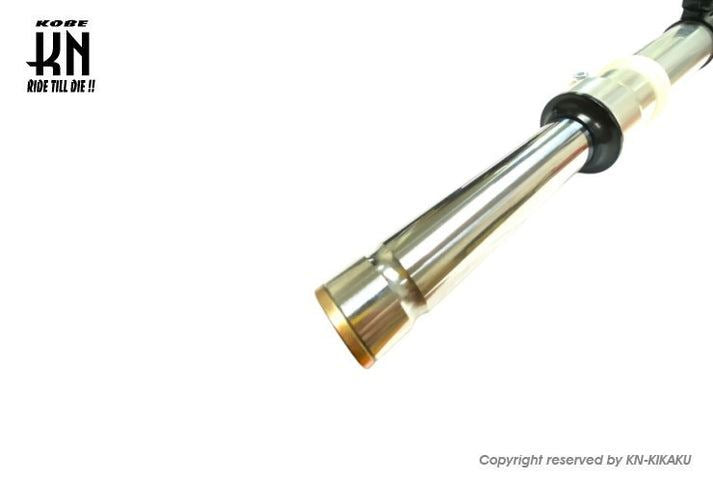

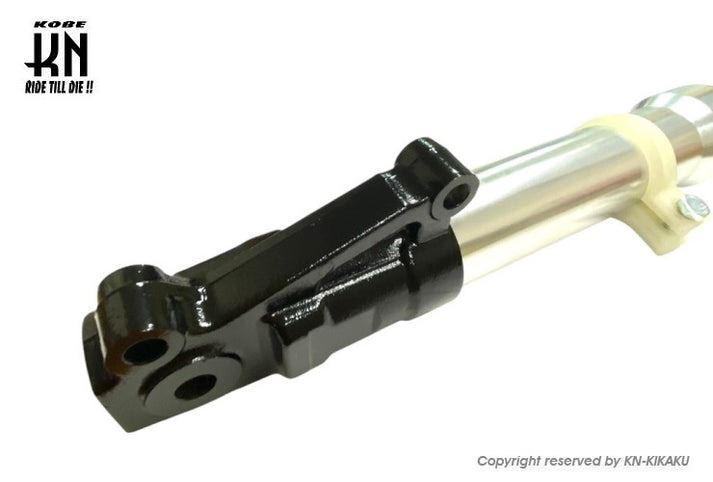

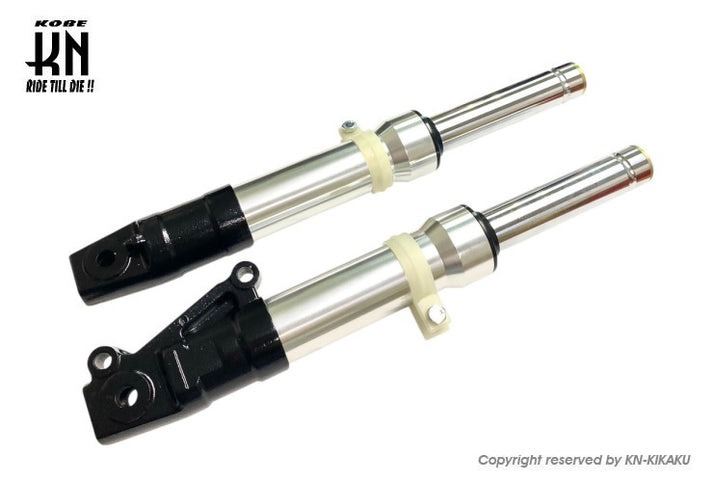

Lowered Front Forks Black/Silver

【KN Planning FF00-2-L-BKSV Lowdown Front Fork Black/Silver Dio Series Disc Motorcycle Parts Custom Parts Suspension】
■Product Description
Lowdown Front Fork [Dio Series DISC] Black/Silver

【Features】
Dio Series Lowdown Front Fork
KN's best-selling product, re-released in 2025.
It is 30mm lower than the genuine product.
This product is compatible with the genuine gold suspension of Honda Live Dio ZX.
Not only the inner tube but also the length of the outer tube has been changed.
Hardness and style have been considered.
We have kept the lowdown to 30mm to ensure no issues when installed.
Generally, the image of a lowdown is rigid, but
Our forks are designed with ride comfort in mind for city riding.
The bottom is cast black paint.
The body is
Machined aluminum with anodized finish.

■Compatible Models
Live Dio ZX 1997 onwards~ AF35-1500001 onwards
*Bolt-on installation for the above models.
*For HD-SUS, if the stem fixing bolt part
The upper part passes through the inner tube.
It can be installed if it is that type.
*Please note that there are some HD-SUS stems that cannot be installed.
DIO-SR/SP(AF25) Super Dio SR/ZX(AF28)
*For the above models, it is for diversion.
*Please devise the installation, etc.

■Specifications

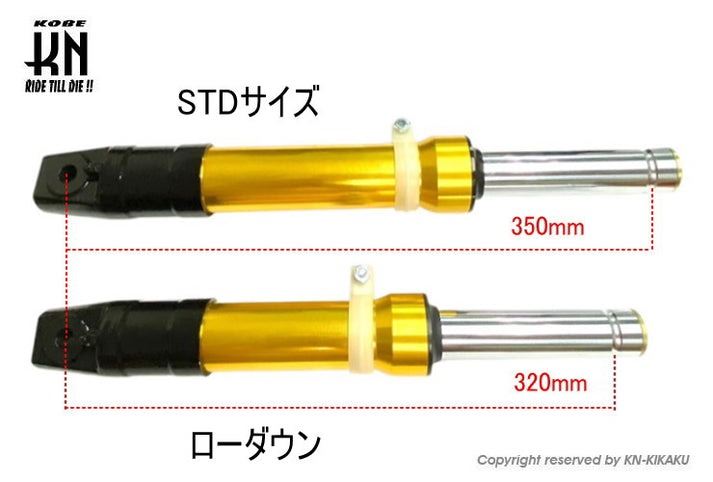

Size: Overall length is approx. 360mm
From the upper groove of the inner tube to the center of the lower shaft part is approx. 320mm

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please understand.
