Final Gear Kit, Primary Side, 34/12, Dio Series

KN Planning G3412 Final Gear Kit Primary Side/34/12 Dio Series Motorcycle】

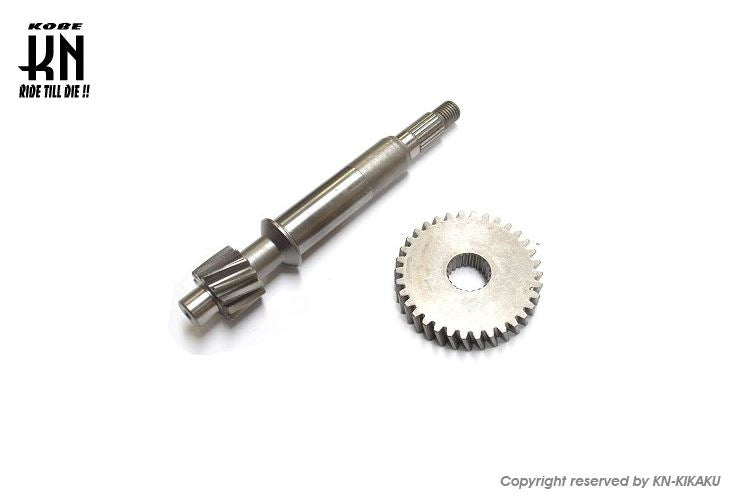

■Product Description This is a primary side final gear kit for vertical DIO series. The kit includes the two parts shown in the image: d (drive shaft) and c (counter gear). It is intended to be used in combination with genuine secondary side gears, so if it is used with G-Craft's secondary side final gear kit or an aftermarket secondary side kit, there is a risk that the combination may not be possible or that the gearing may become quite high. Specifications [Final Reduction Ratio Table] *Combination of secondary side normal (13x45) and primary side kit 13x40 10.650885 12x34 9.807689 [This product] 15x30 6.923076 *The smaller the number, the higher the gear. [Normal Final Reduction Ratio] DIO/SR [AF18/25] 12.115383 Super DIO/SR [AF27/28] 12.115383 Super DIO ZX [AF28] 10.917157 Live DIO/ST/SR [AF34/35] 12.115383 Live DIO ZX [AF35] 10.917157 TACT/S [AF24/30/31] 12.115383 Giorno [AF24] 12.115383 DJ-1RR [AF19] 12.115383 G' [AF23] 10.650885 [Size] d=12 teeth c=34 teeth ■Compatible models DIO/SR [AF18/25] SK50MJ 1091257~ Super DIO [AF27] Super DIO SR/ZX [AF28] Live DIO/ST/SR/ZX [AF34/35] ~SK50MT *Not compatible with models after SK50MV. TACT/S/Stand Up [AF24/30/31] Giorno [AF24] DJ-1RR [AF19] G' [AF23] Notes *When installing, since the [d] gear is press-fitted, a hydraulic press or shaft puller is required for replacement. *For Live DIO, there are several types of counter gear thickness, and even if it is a compatible model, if the internal gears have been changed in a used vehicle, or if aftermarket parts are combined, or if a gear case cover from a different model year is combined, it may not be possible to install. Please carefully check the vehicle and engine number, gear thickness, etc. *Depending on the gear ratio of the vehicle to be installed, the gearing may become higher or lower.
