Horizontal Engine JOG Series Air Cleaner Turbo Type Pre-emission Model Reverse Print Pattern

【KN Planning JH066-TBF Horizontal Engine JOG Series Air Element Turbo Type Pre-Regulation Reverse Print Turbo Type】
This is a coarse turbo type.
It increases intake efficiency compared to the genuine product.

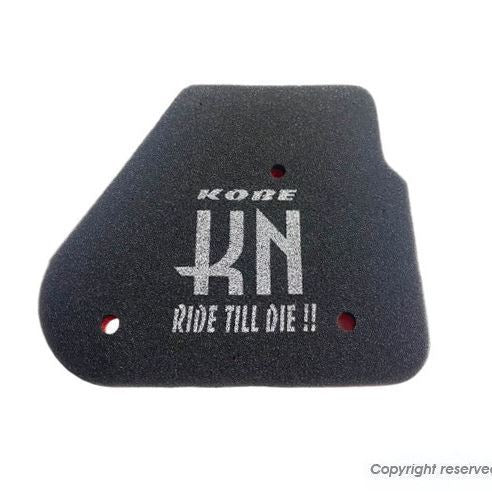

It is basically the same as the JH06-TBF. The "KN" text faces the installation side.
When using a clear cover, the printing will be visible from the front.
While we have designed this product to generally not require fuel adjustments,
the intake volume is not completely standard, and the intake efficiency is increased compared to stock. Therefore, after installation,
please be sure to check the fuel system, such as spark plug burning.
The concentration of the air-fuel mixture varies greatly depending on the combination of parts. Always perform on-vehicle tuning after installation.
【Compatible Genuine Part Numbers】
51Y-14462-00
3KJ-14452-30
3KJ-14451-00
Compatible Models: JOG【3KJ/3YJ/3RY】　
JOG90【3WF】　
Aprio【4JP5/7-8】
Aprio Type 2/EX【4LV】
Vino【5AU1～8】
Super JOG Z/ZR【3YK】
*For Aprio 4JP1/2/3/4/6, please select JH07.
*For Aprio 4JP9 and later (regulated models), please select JH17.
■Notes on Images
*Images are for illustration purposes only. They may include products of different sizes or colors. Product design and specifications are subject to change without notice. Please be aware of this.
Precautions
*Please carefully check the air element shape before purchasing.
*There is no data available for diversion to models other than those listed as compatible.
