【KN Planning KN-BLCCGP-GD UBS Canceller Gold Cygnus Gryphus Motorcycle】
■This product cancels the UBS (Unified Brake System) and allows for independent left and right braking.
The genuine system features a combined brake that engages both front and rear brakes when the left lever is operated.
This product cancels that system, allowing for independent front and rear brakes with a more natural braking feel.
By removing the linked wire from the brake lever and related parts from the holder, and installing this product,
you can apply the front and rear brakes independently.
Specifications
【Installation Method】

*Assemble according to the instructions below, referring to the images.

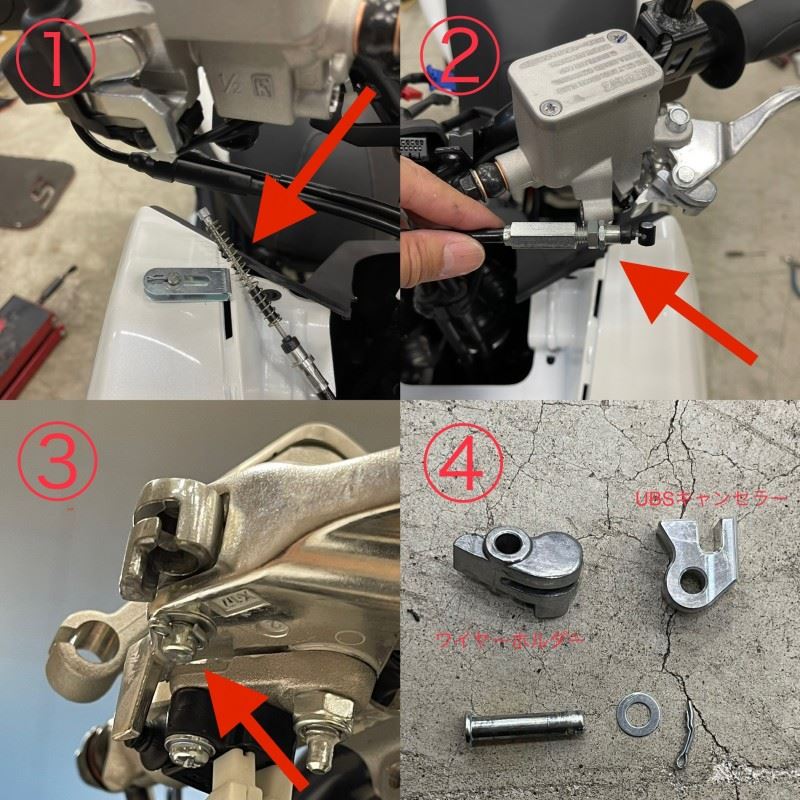

■Removing the link wire
(1) Remove the link wire from the front brake side.
(2) Remove the link wire from the rear brake side.
(3) Remove the wire holder (remove the cotter pin).
(4) Removed parts (left side) and UBS Canceller (right side).
■Installing the canceller

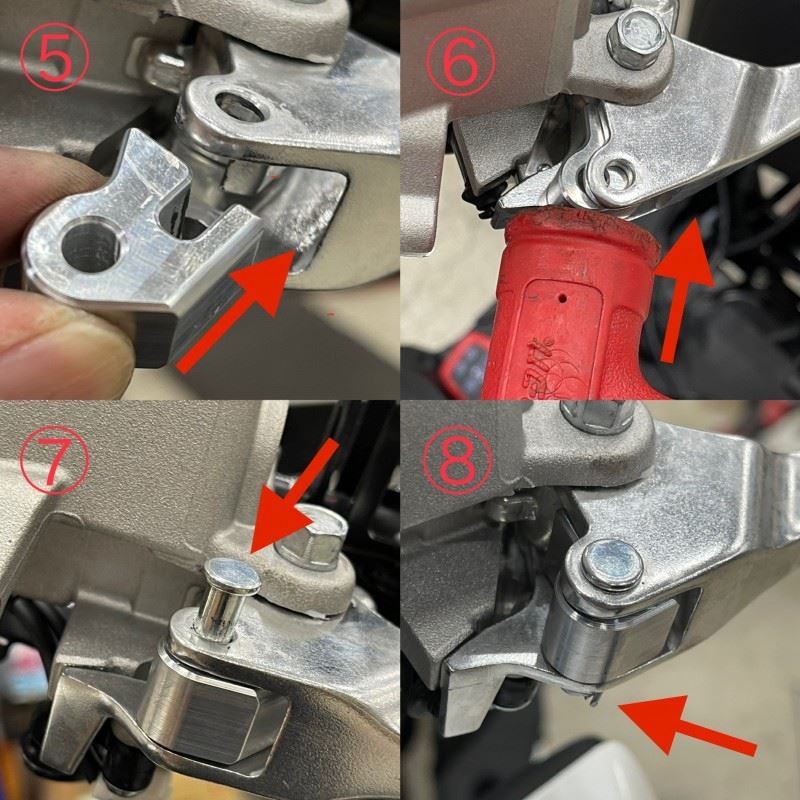

(5) Insert the canceller into the holder removed in (3), paying attention to the orientation.
(6) As the clearance is narrow, tap it in with a plastic hammer or similar tool.
(7) Align the hole positions and install the pin removed in (3).
(8) Reattach the cotter pin to prevent it from coming off, and the installation is complete.
Color: Gold
■Compatible Models
Cygnus Gryphus 6th Gen Domestic Model [BKG]
UBS
Cygnus Gryphus 6th Gen Taiwan Model [B8R]
UBS
BW'S125 3rd Gen Taiwan Model [BBJ]
UBS
*Can be installed with genuine levers and KN dual-color levers.
Manufacturer's Notes
*There is no installation data for levers from other manufacturers.
*The images are for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
