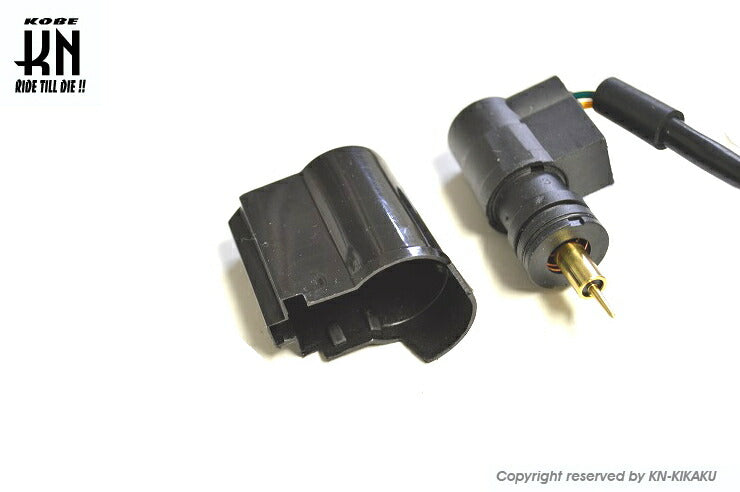

Replacement Auto Choke for Honda 50-100cc Scooters

【KN Planning KN-CBN-ATCK Replacement Auto Choke for Honda Scooters 50-100cc Series】
・Auto choke replacement for Honda scooters 50-100cc series
【Features】

・This is a replacement auto choke.
・It is compatible with Honda genuine carburetors (Keihin PB series).
・You can restore a broken and inoperable auto choke by replacing it with this product.
・Auto chokes are a very convenient feature in Japan, which has four seasons.
・It is compatible with vehicles equipped with an auto choke fixing plate (genuine part number 16186-GJ2-004).
【Models requiring wiring modification】
*Lead 50/100 【AF48・JF06】
*Live Dio/J/S/ZX 【AF34/35】
SK50MY～ *Tact 【AF51】
*Dio FIT 【AF27】
*Giorno 【AF52】
*It can be installed by modifying the wiring and coupler to match the vehicle's harness side.
【Size】

・Outer diameter of carb insertion part: 19.85mm
・Outer dimension of cover (round part): 25.03mm
・Outer dimension of cover (corner part): 18.77mm x 14.86mm
・Height: 46.56mm

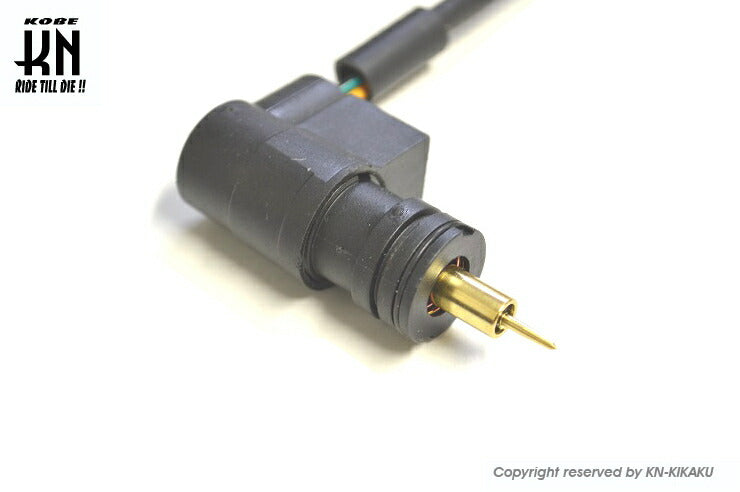

・Needle length (cold): 9.39mm
・Needle cylinder thickness: 7.03mm
・Needle cylinder length: 10.48mm

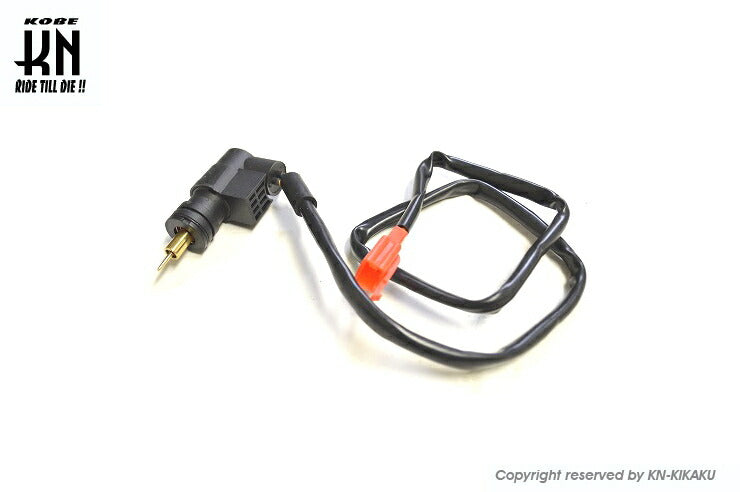

・Wiring length: Approximately 60cm
・Coupler shape: 110 type 2-pin (male side)
*All measurements are actual values when cold. Please use them as a reference when diverting the product.
【Compatibility】

・DJ1/R/RR/L 【AF12/19・DF01】

・Lead 50/90 【AF20・HF05】

・Dio/SR 【AF18/25】

・Super Dio/SR/ZX/XR 【AF27/28】

・Live Dio/ST/SR/ZX 【AF34/35】
～SK50MW
・Giorno 【AF24】

・Tact 【AF16/24/30/31】

【Precautions】

*There may be other models that can be installed besides the compatible models. Please refer to the size specifications.
*Stays and screws are not included. Please use the ones already on the vehicle.
*Even with compatible models, installation may not be possible if the carburetor has been processed or modified.
*If diverting the product, please thoroughly measure the auto choke on the vehicle side and compare before purchasing.
*There is no data available for diversion to models other than those listed as compatible.
*The images are for illustration purposes, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
