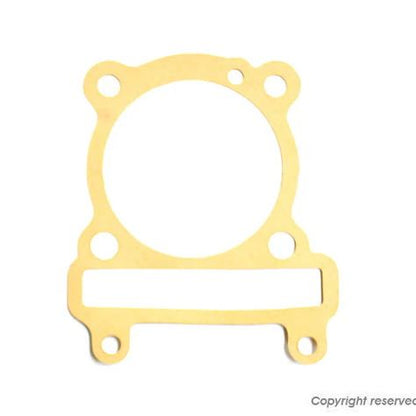

Cylinder Base Gasket, 0.5mm thick, 68.5mm inner diameter, for Cygnus X BW'S125 BW'S X BW'S R

【KN Planning KN-GKCYP-68505 Cylinder Base Gasket, 0.5mm Thickness, 68.5mm Inner Diameter, for Cygnus X, BW'S125, BW'S X, BW'S R, Motorcycle Compression Adjustment】
This is an adjustment base gasket.
It can be used for compression adjustment or as a spacer when installing a long crankshaft.

Compatible Models
Cygnus X 1st Gen: Japan spec [5UA] / Taiwan spec [5TY]
Cygnus X 2nd Gen: Japan spec [28S] / Taiwan spec [4C6・1CJ]
Cygnus X 3rd Gen: Japan spec [1YP] / Taiwan spec [1MS]
Cygnus X 4th Gen: Japan spec [BF9] / Taiwan spec [2UB]
Cygnus X 5th Gen: Japan spec [B8S] / Taiwan spec [B2J]
BW'S125 1st Gen: Taiwan spec [5S9]
BW'S X 1st Gen: Taiwan spec [46P]
BW'S 125 2nd Gen: Japan spec [BG1]
BW'S R 2nd Gen: Taiwan spec [2JS]

Specifications
Thickness: 0.5mm
Inner Diameter: 68.5mm
For cylinders with sleeve outer diameter up to: 68mm
STD size to 63mm cylinder (180cc) with normal stroke

■Notes on Images
*Images are for illustration purposes only. Products with different sizes and colors are included. Product design and specifications are subject to change without notice. Thank you for your understanding.

Precautions
*Separate tuning is required.
*Cylinder sleeve outer diameters may vary between individual units. If it is difficult to install, please cut it before use.
