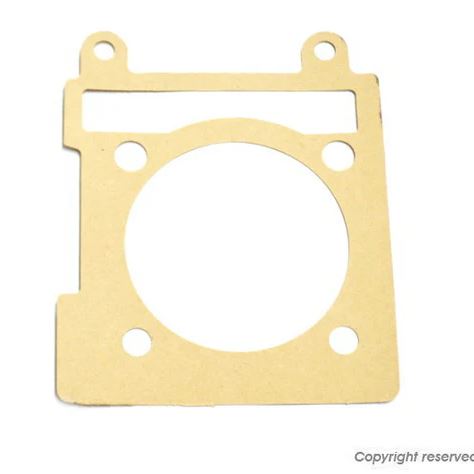

Cylinder Base Gasket, 0.5mm Thickness, 70.5mm Inner Diameter, for Cygnus X, BW'S 125, BW'S X, BW'S R

【KN Planning KN-GKCYP-70505 Cylinder Base Gasket, 0.5mm Thickness, 70.5mm Inner Diameter, for Cygnus X, BW'S125, BW'S X, BW'S R, Motorcycle Compression Adjustment】
This is a base gasket for adjustment.
It can be used for compression adjustment or as a spacer when installing a long crankshaft.

Compatible Models
Cygnus X 1st Gen Domestic Spec【5UA】・Taiwan Spec【5TY】
Cygnus X 2nd Gen Domestic Spec【28S】・Taiwan Spec【4C6・1CJ】
Cygnus X 3rd Gen Domestic Spec【1YP】・Taiwan Spec【1MS】
Cygnus X 4th Gen Domestic Spec【BF9】・Taiwan Spec【2UB】
Cygnus X 5th Gen Domestic Spec【B8S】・Taiwan Spec【B2J】
BW'S125 1st Gen Taiwan Spec【5S9】
BW'S X 1st Gen Taiwan Spec【46P】
BW'S 125 2nd Gen Domestic Spec【BG1】
BW'S R 2nd Gen Taiwan Spec【2JS】

Specifications
Thickness: 0.5mm
Inner Diameter: 70.5mm
Cylinder Sleeve Outer Diameter: Cylinders up to 70.5mm
65-67mm cylinders (192-204cc) with normal stroke

■Notes on Images
※Images are for illustration purposes only. They may include products of different sizes or colors. Product design and specifications are subject to change without notice. Please understand.

Precautions
※Additional adjustments will be required.
※Cylinder sleeve outer diameter may vary between individual units, so if it is difficult to fit, please cut and use it.
