Lowdown Super Shock 2 with Damping Adjustment - Gold

【KN Planning KN-GP-SSLD-GD Low-Down Super Shock 2 with Damping Adjustment Gold for Cygnus Gryphus / Gryphus 6th Gen (BKG/B8R) / X-Force / NMAX Motorcycle Parts】
■Product Description

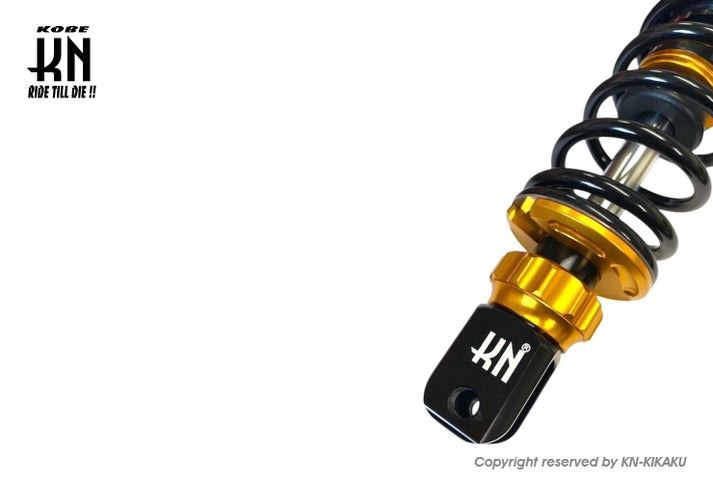

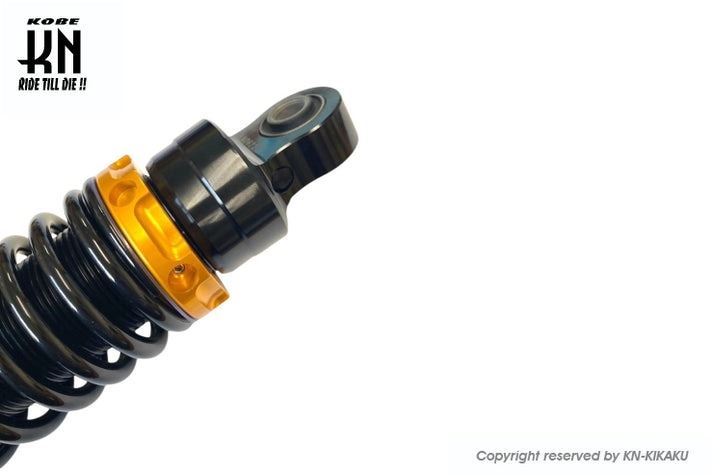

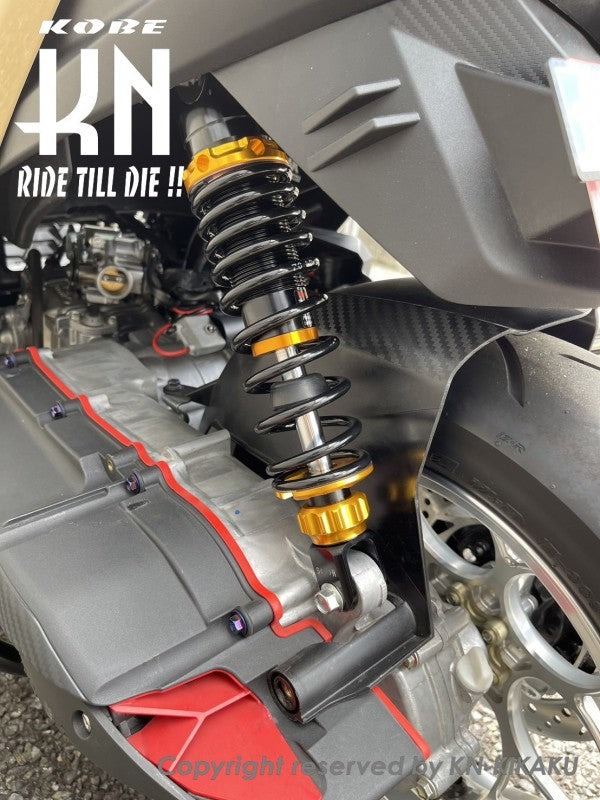

Low-Down Super Shock 2 [Cygnus Gryphus / GRYPHUS 6th Gen (BKG/B8R) / X FORCE / NMAX] with Damping Adjustment
【Features】
The popular Super Shock series now includes
a low-down version for Gryphus, XFORCE, and NMAX 2nd Gen!!
This is a low-down shock for Cygnus Gryphus, XFORCE, and NMAX 2nd Gen.
Easily adjustable with damping adjustment.
This shock is primarily for street use.
The damping adjustment offers a wide range of settings with 22 stages, despite being 1-way.
Stepless initial adjustment.
Comes with anti-loosening bolt.

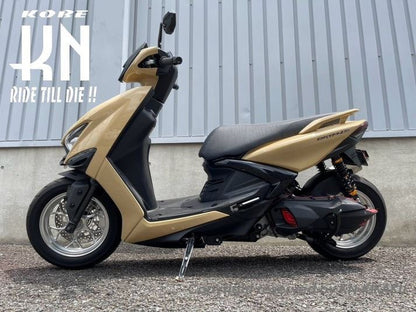

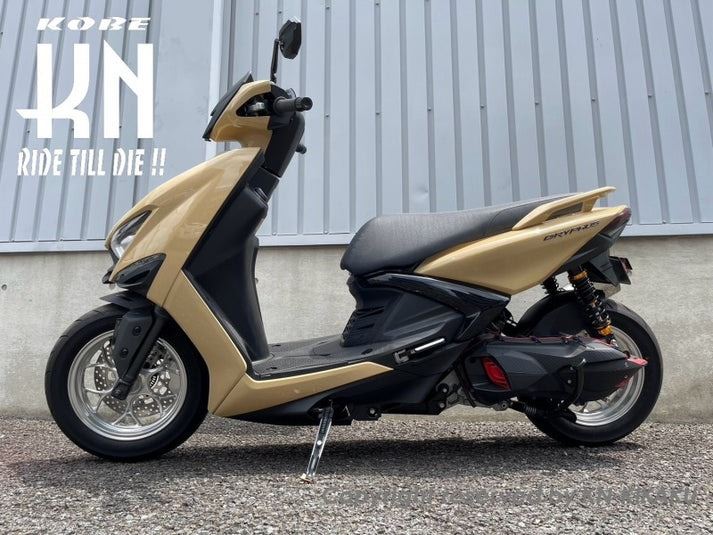

■Compatible Models
Cygnus Gryphus 6th Gen Japanese Spec [BKG] UBS
Cygnus Gryphus 6th Gen Taiwanese Spec [B8R] UBS/ABS
X FORCE [BLB] Japanese Spec
FORCE2.0 [BFV] Taiwanese Spec
NMAX155 [B4V] 2nd Gen V2 Taiwanese/Indonesian Spec
NMAX125 [BAL] 2nd Gen V2 Japanese Spec
NMAX155 [BBD] 2nd Gen V2 Japanese Spec

■Specifications
Size: ■Rebound, Compression 22 stages
■Bolt center-to-center 285mm
■Maximum diameter spring part 58mm
■Rod diameter 14mm
■Upper mounting part width 20mm
■Lower mounting part U-shaped inner diameter 20mm

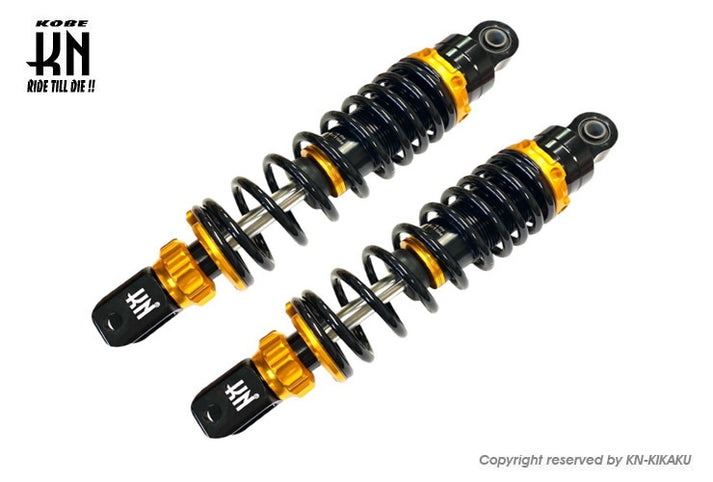

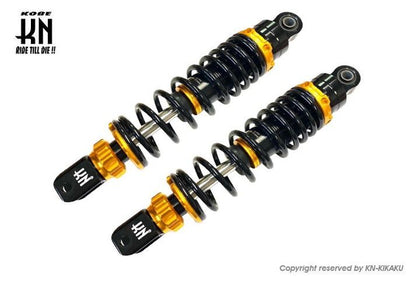

Accessories: Shock unit ×2
Adjustment wrench ×1

■Other Notes

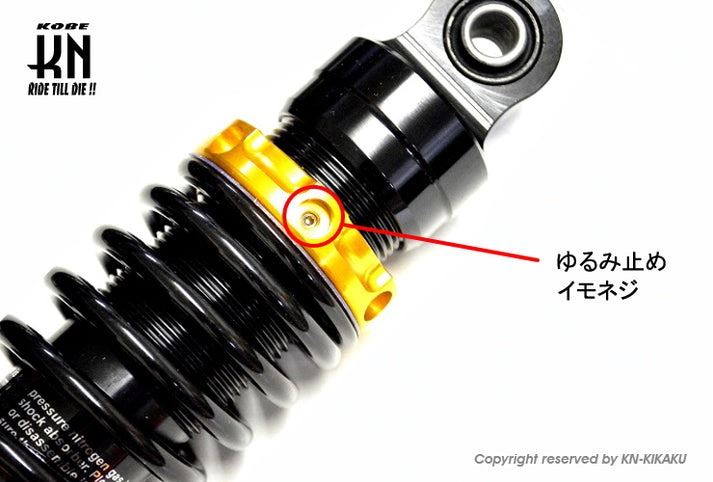

※The anti-loosening grub screw tool is not included. It is a 2mm hex wrench.
※When adjusting the initial setting, loosen this anti-loosening screw before adjusting.
※The genuine suspension length for Cygnus Gryphus and XFORCE is 308mm.

■Notes
※Images are for illustration purposes only. May include products of different sizes or colors.
※Product design and specifications are subject to change without notice. Please understand.
