Lightweight Compact Outer Rotor Kit for AF18E Engine / Vertical Dio Series

【KN Planning KN-ORD-01 Lightweight Compact Outer Rotor Kit for AF18E Equipped Vehicles / Vertical Dio Series】
・Lightweight compact outer rotor kit [for AF18E equipped vehicles / vertical DIO series]

【Features】

・Superb response!
・This product reduces rotational resistance, resulting in sharp engine response and improved acceleration from a standstill.

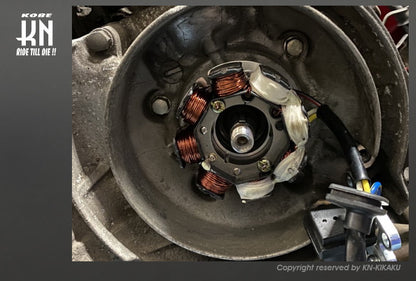

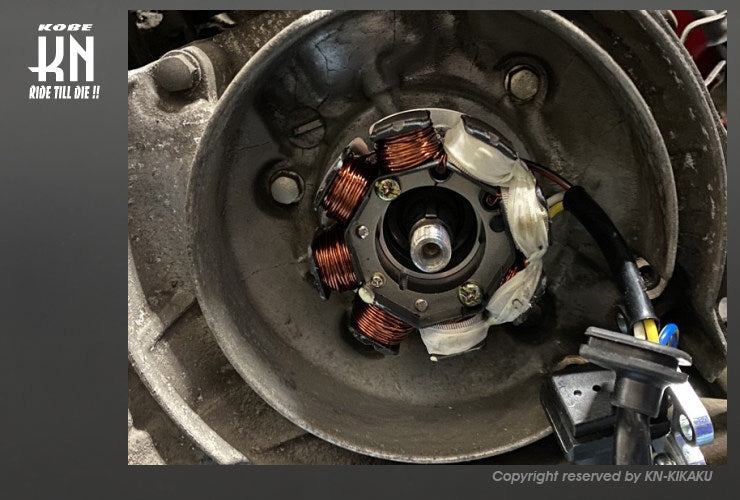

・The coil part is smaller than the genuine one, and it is a stator coil with low magnetic resistance.

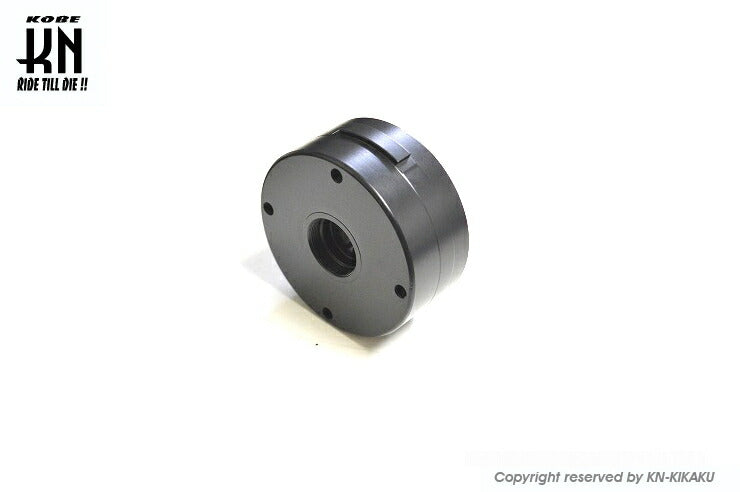

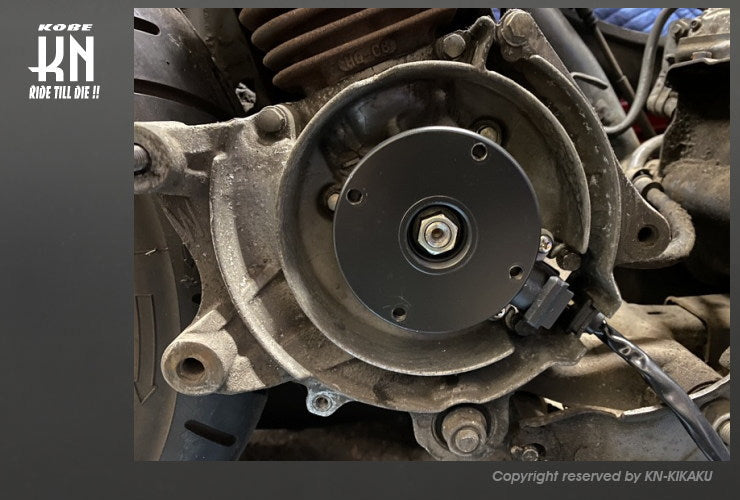

・Comes with a dedicated lightweight small-diameter outer rotor (flywheel)
・Comes with a dedicated cooling fan (mounting pitch is the same as genuine)
・Although charging capacity will decrease in exchange for response & power, the headlights can still be lit while driving.
【Measured Power Generation Capacity (Reference Values)】

・Genuine rotor & coil: Approx. 12.2V/0.5A at idle, Max. approx. 12.7V/2.2A at high rpm
・Lightweight outer rotor: Approx. 12.15V/0.0A at idle, Max. approx. 12.3V/1.0A at high rpm
*Test results from a Super DIO ZX (actual vehicle).
【Compatibility】

・DIO 【AF18】

・DIO SR 【AF25】

・G Dash 【AF23】

・Super DIO 【AF27】

・Super DIO SR/ZX/XR 【AF28】

*Vehicles equipped with AF18E
*DJ1RR 【AF19】
Fitment unconfirmed

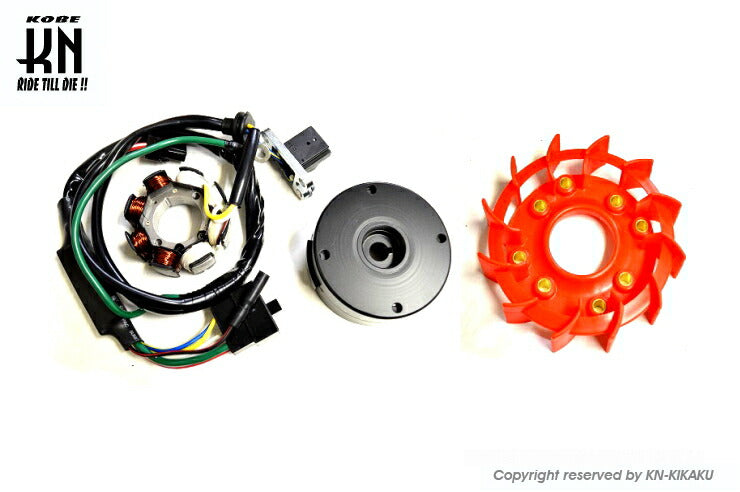

【Set Contents/Accessories】

・Lightweight compact outer rotor x 1
・Dedicated generator coil x 1

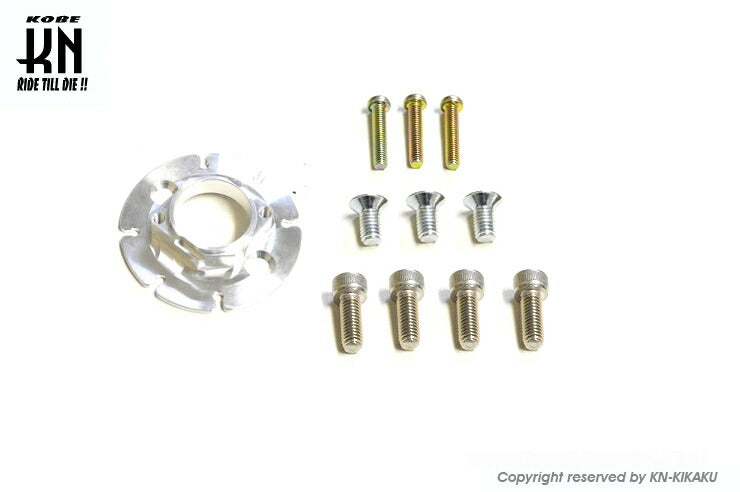

・Base plate x 1
・Lightweight cooling fan x 1
・M6 screws x 3
・M4 screws x 3
・M6 cap bolts x 4
【Manufacturer's Notes】

*Due to the design with low rotational resistance and low power generation, lighting may not function correctly if combined with a weak battery.
*Please pay close attention to the battery voltage.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
