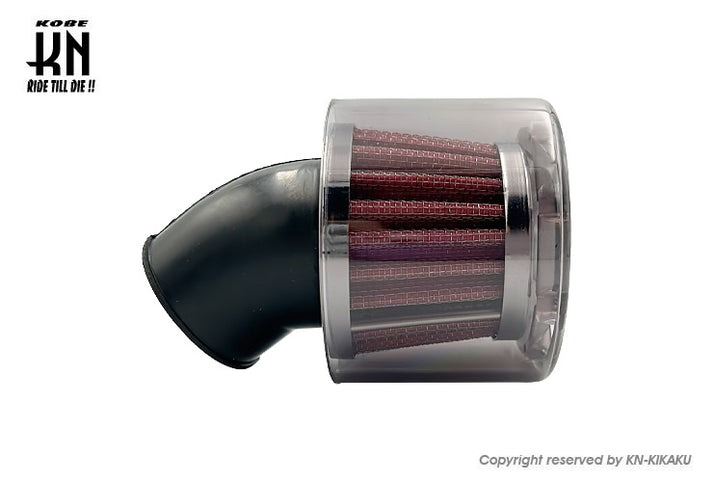

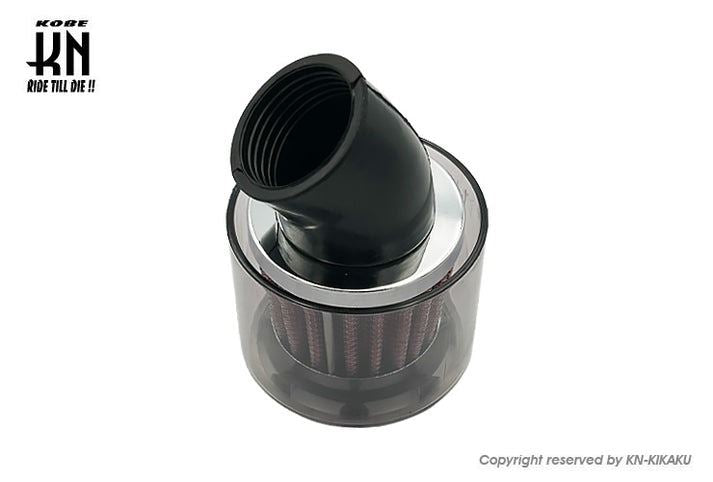

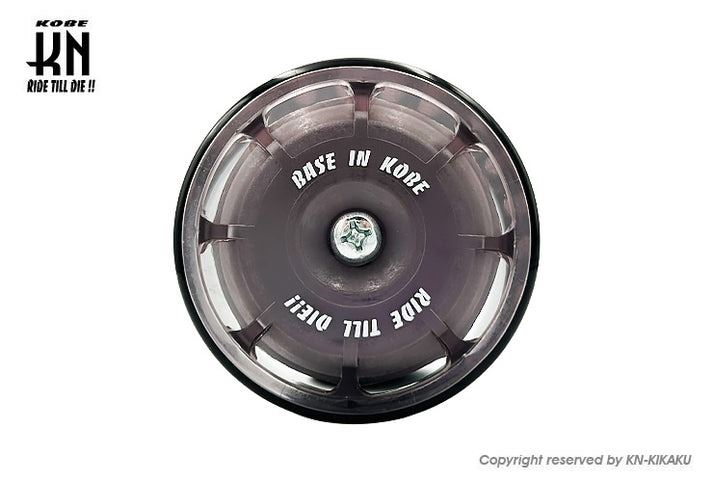

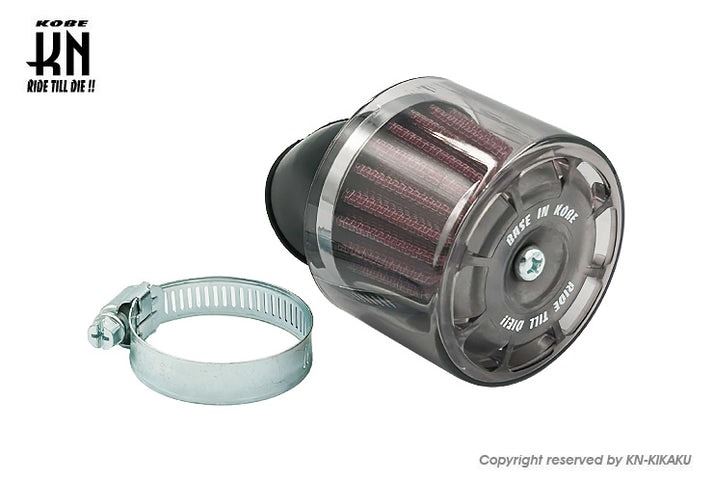

Universal Power Filter 45 Degree Type 2 Black 35mm-37mm

【KN Planning KN-PF01-BK Universal Power Filter 45 Degree Type 2 Black 35mm-37mm Motorcycle Parts Custom Parts Air Cleaner】
■Product Description
Universal Normal Carburetor Power Filter 45° 【Type 2】
【Features】
Replacing it will increase the intake rate compared to the genuine part.
Depending on the model, changes to the main jet, spark plug, etc. may be necessary.
A duct opening is provided on the top of the cover, increasing the intake rate more than Type 1.
Although the cover makes it difficult for rain to enter,
due to the duct opening, riding in the rain is not recommended.

■Compatible Models
Magna 50
JAZZ
Little Cub
Live Dio/ZX (91-99)
Super Dio (All models)
Super Dio ZX/SR (All models)
DIO (AF18, AF25)
Tact/S
Stand Up Tact
TZM50R
TZR50/R
RZ50
JOG Sports (2JA)
4.5-6PS JOG
Champ (5.2-5.8PS)
Active (5.5-6PS)
Excel
Champ RS/CX
Voxon
BWS50 (3AA Vertical Engine)
Lets/S, Street Magic

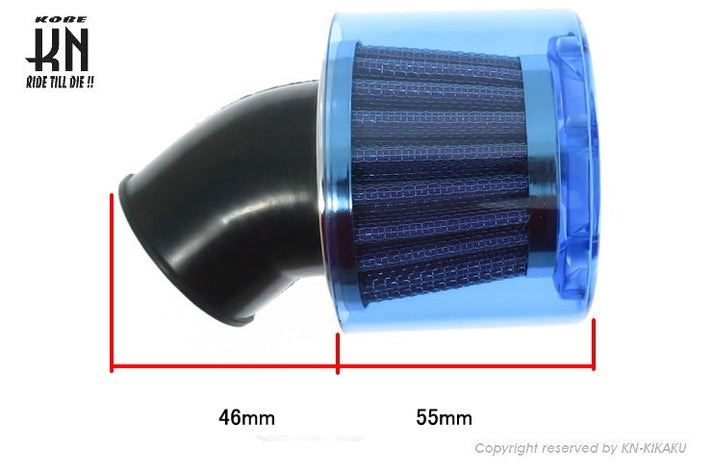

■Specifications
Size: ■Mounting inner diameter approx. 36mm
■Maximum diameter 72mm
*Adjustable from 35-37mm by tightening the band.

■Other Notes
*Note: Not compatible with JOG horizontal engines (ZR, Aprio, etc.).
Please select product number KN-PF03. For straight type, KN-PF02.
*The mounting angle is 45°. Please check the size carefully to ensure it does not interfere with the vehicle body.

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Thank you for your understanding.
