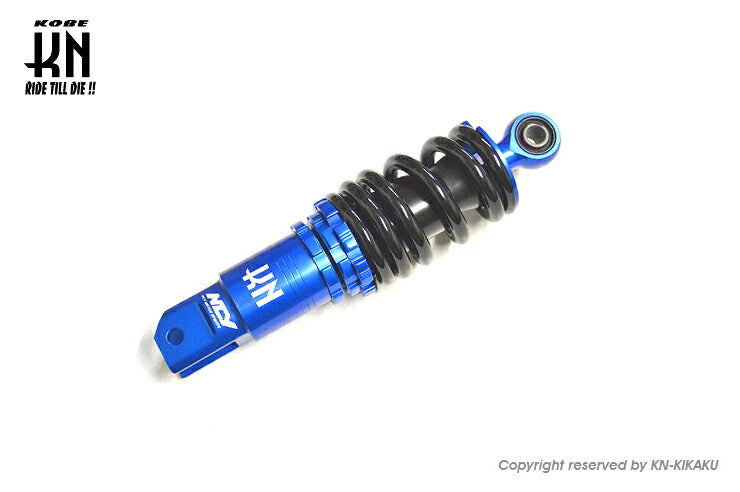

NCY+Oil Shock 220-240mm Ride Height Adjustment Kit - Blue Honda Scooters

【KN Planning KN-RSZM-DB NCY+KN Planning Oil Shock 220-240mm Ride Height Adjustable Kit Blue Honda Scooters】
・NCY+KN Planning Oil Shock【220-240mm Ride Height Adjustable Kit】

【Features】

・A collaboration product between NCY and KN Planning.
・An offset Honda scooter shock.
【Main Body Color】
Blue
【Size】

・Adjustable between bolt centers (220-240mm)
・Maximum diameter = 63mm
・Inner tube diameter 12.5mm
・Lower bracket offset = approx. 6mm
・Upper width 20mm
・Upper hole inner diameter 10mm
・Lower U-shape width 20.5mm
・Lower hole bolt 8mm hole
【Compatibility】

・Honda scooters
・ZOOMER【AF58】
※
【Notes regarding ZOOMER】

※For stock vehicles, the upper bolt cannot be installed.
※This is for vehicles where the suspension mounting position has been changed.
※The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
