Super Aluminum Big Secondary Kit Blue BW'S100 Grand Axis Aerox 100

[KN Planning KN-SCGA-DB Super Aluminum Big Secondary Kit Blue BW'S100 Grand Axis Aerox 100]

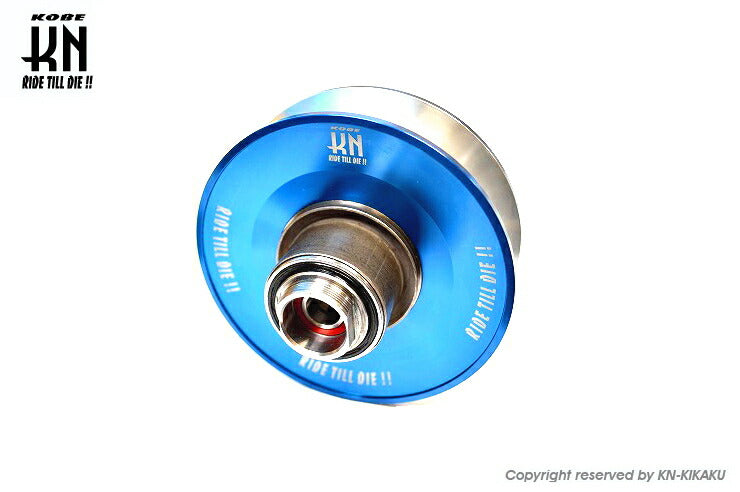

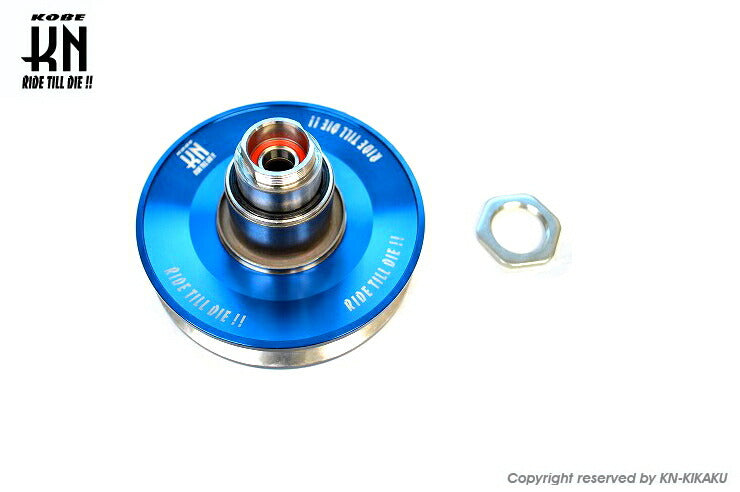

・This is an aluminum large-diameter secondary pulley ASSY for customization.
[Features]

・The popular big secondary has been redesigned for an even larger diameter! And it's made of aluminum!
・By making the material aluminum, the weight increase associated with the larger diameter is suppressed, making it lighter!
・The precision of the belt contact surface is improved through the machining process. This minimizes runout and suppresses belt slip.
・Both the opening and closing sides have significantly increased movable stroke, aiding in shifting.
・There is no longer any concern about belt breakage after installing a high-speed pulley.

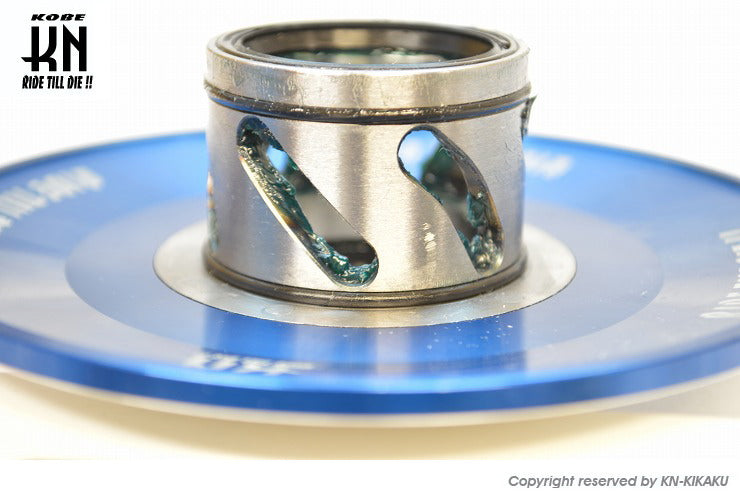

・The torque cam has two angles: straight and angled ("he-no-ji").
・Other colors are also available.
[Main body color]
Blue
[Compatibility]

・Grand Axis [5FA]

・BW'S100 [4VP]

・RX100 [5CP]

・AEROX100 [5BR]

[Set contents/accessories]

・Pulley ASSY body weight approx. 617g
・Pulley diameter approx. 122mm
[Manufacturer's Precautions]

*Due to its large diameter, there is a possibility of interference with the crankcase cover, clutch, and outer casing.
Please check carefully and perform any necessary modifications.
*The drive system needs to be balanced as a whole. Please try various combinations!
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
