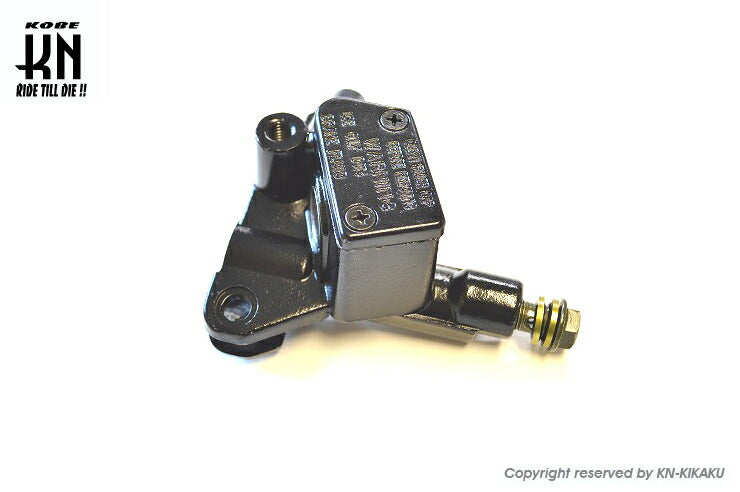

Suzuki-type Master Cylinder Adress V125

【KN Planning MASTER-S-03 Suzuki Master Cylinder Address V125】
・Suzuki replacement master cylinder V125
【Features】

・Master cylinder with a piston diameter of 12.7mm.
・Can be used for customization or repair.
・Vehicles with an 11mm piston will be upgraded to 12.7mm, which will change the feel.
・Compatible with opposing 2-pot and 4-pot calipers.
【Size】

・Banjo bolt 1.0mm pitch
・Mirror hole 8mm standard thread specification
【Compatibility】

・Address V125/G 【CF46A】
(K5/K6)
*Address V125/G 【CF46A】
(K7)
*Address V125/G/Limited 【CF46A】
(K9) with O2 sensor
*Address V125 【CF4EA】
(K9~L3)
【Manufacturer's Notes】

*The mirror mounting hole diameter is 8mm standard thread. Some model years may have 10mm vehicles.
*Can be used with K7~ models, but since the mirror diameter is 10mm, if installing this product, please change the mirror to 8mm.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
