aRacer RC MiniX Complete ECU AF2 Wideband O2 Sensor LSU4.9 included Air-Fuel Ratio Module CRF110F Motorcycle

【KN企画 PA-CX093-SET aRacer RC MiniX Complete ECU AF2 Wideband O2 Sensor LSU4.9 Included Air-Fuel Ratio Module CRF110F Motorcycle】
■aRacer【RC MiniX Complete ECU】
+【AF2 Wideband O2 Sensor LSU4.9 Included Air-Fuel Ratio Module】

Specifications
The RC MiniX is a full-fledged ECU that can be easily adjusted using a smartphone app, similar to a sub-controller.
It is an essential tuning ECU (full-fledged ECU) for modifying EFI vehicles. The RC series also features data logging functionality, and the system is integrated.
The RC MiniX is a normal evolution of its predecessor, the RCMini5! Equipped with a 4-core MCU, processing speed is boosted by 200%!
Since the ECU unit itself is replaced, there are no blocks from the genuine ECU, which is common with sub-controllers, allowing for straightforward settings.
Connection with smartphones is via Wi-Fi, significantly increasing communication speed!
This kit is a set with the AF2 Wideband O2 sensor module.
Auto-tune function and closed-loop correction can be used.
The vehicle side is plug-and-play with no modifications required. Ingenuity is needed for securing the main unit.
■Compatible Models
CRF110F【2019～】

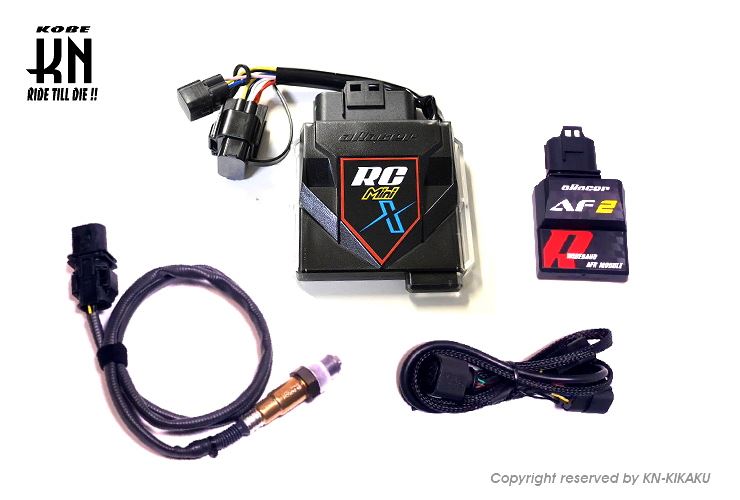

Set Contents
RC MiniX ECU Unit x 1
AF2 Wideband O2 Sensor LSU4.9 Included Air-Fuel Ratio Module x 1
Dedicated app aRacer X Tune Japanese instruction manual (download version)
Precautions
*ECU tuning should be performed by experienced individuals with knowledge.
Incorrect settings can cause engine damage.
*A smartphone and dedicated app are required. The dedicated app needs to be downloaded.
*iOS (iPhone) is recommended. Android may not connect depending on the model.
*Upgrade operations cannot be performed on Android.
Operations must be performed on an iPhone or PC.
*Depending on the ECU version of the RC MiniX, some functions are optional,
and features are limited.
*The included O2 sensor AF2 is not compatible with normal mufflers with 12mm ports.
It is for 18mm sensor types found on aftermarket mufflers, etc.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without prior notice. Please be aware of this.
