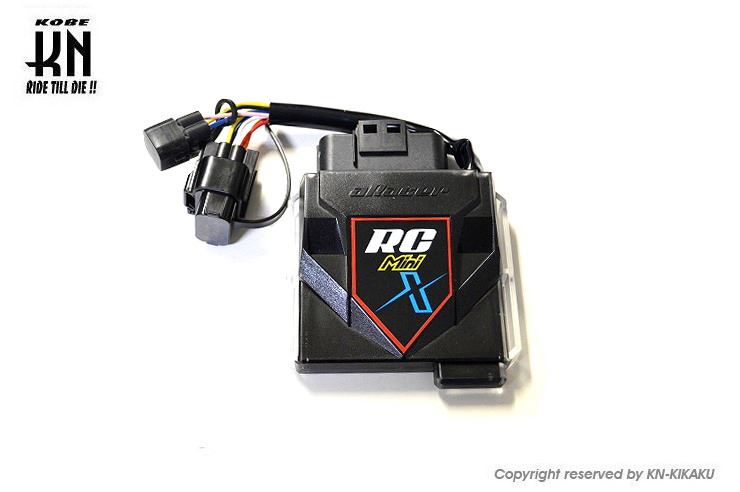

aRacer RC MiniX Complete ECU YZF-R15 V2 Motorcycle

[KN Planning PA-CX104 aRacer RC MiniX Complete ECU YZF-R15 V2 Motorcycle]
■aRacer [RC MiniX Complete ECU]
CRF110F
Specifications
The RC MiniX is a full-control unit with sub-controller-like capabilities that allows for easy adjustment using a smartphone app.
An essential tuning ECU (full-control unit) for modifying EFI vehicles, the RC series also features a data logging function, with the entire system integrated.
The RC MiniX is an evolved version of its predecessor, the RC Mini5! Equipped with a 4-core MCU, it boasts a 200% increase in processing speed!
Since the ECU itself is replaced, there are no blockages by the genuine ECU, which can be an issue with sub-controllers, allowing for straightforward setup.
Connection with smartphones is via Wi-Fi, significantly increasing communication speed!
This kit includes the ECU only. To use the automatic fuel map creation function (auto-tune) or feedback via a wideband O2 sensor, a separate WBO2 sensor module AF2 is required.
The vehicle side is plug-and-play with no modifications required. Ingenuity is needed for mounting the unit.
■Compatible models
Yamaha YZF-R15 [V2 only]

*The ECU varies depending on the model year.
Set Contents
RC MiniX ECU unit ×1
Dedicated app aRacer X Tune Japanese manual (download version)
Precautions
*ECU tuning should be performed by knowledgeable and experienced individuals. Incorrect settings can
cause engine damage.
*A smartphone and the dedicated app are required. The dedicated app must be downloaded.
*iOS (iPhone) is recommended. Android devices may not be able to connect depending on the model.
*Upgrade operations cannot be performed on Android. Operations require an iPhone or PC.
*Setting up with the ECU alone is extremely difficult, so installation of the WBO2 sensor module AF2 is recommended.
*Depending on the ECU version, some functions of the RC MiniX are optional, and features are restricted.
*The image is for illustration purposes, and the design and specifications of the products shown are subject to change without notice. Please understand.
