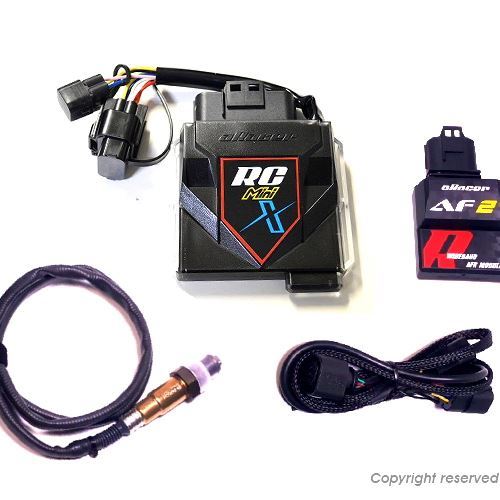

aRacer RC MiniX Complete ECU + AF2 Wideband O2 Sensor (LSU4.9 included) Air-Fuel Ratio Module for Cross Cub/CC110 (JA45)

KN Planning PA-CX127-SET aRacer RC MiniX Complete ECU + AF2 Wideband O2 Sensor LSU4.9 included Air-Fuel Ratio Module Cross Cub / CC110 JA45 Full Control
The RC MiniX is a full-control system that functions like a sub-controller, allowing easy adjustments using a smartphone app.
It's an essential tuning ECU (full control) for modifying EFI vehicles. The RC series also features a data logging function, and the system is integrated.
The RC MiniX is a natural evolution of its predecessor, the RCMini5! Equipped with a 4-core MCU, processing speed is boosted by 200%!
Since it replaces the ECU itself, there are no blocks of the genuine ECU, which are common with sub-controllers, allowing for straightforward settings.
Connection to smartphones is via Wi-Fi, significantly increasing communication speed!
This kit is a set with the AF2 Wideband O2 Sensor Module. It enables auto-tune functions and closed-loop correction.
The vehicle side is plug-and-play with no modification required. Ingenuity is needed for securing the main unit.
For more details, please visit the aRacer website.
Compatible models: Cross Cub / CC110 [JA45]
*ECUs vary by model year. Please inquire for details.
Set contents/accessories: RC MiniX ECU unit x 1
AF2 Wideband O2 Sensor LSU4.9 included Air-Fuel Ratio Module x 1
Dedicated app aRacer X Tune Japanese manual (downloadable version)
■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please understand.
Precautions
*ECU tuning should be performed by experienced individuals with knowledge. Incorrect settings can lead to engine damage.
*A smartphone and a dedicated app are required. The dedicated app must be downloaded.
*iOS (iPhone) is recommended. Android may not be able to connect depending on the model.
*Upgrade operations cannot be performed on Android. Operations must be performed on an iPhone or PC.
*Depending on the ECU version of the RC MiniX, some functions may be optional, and features are limited.
Restrictions can be removed by paying a fee. Customers can remove them themselves, but credit card payment is required on an overseas website (English/Chinese), which some may find difficult. Therefore, our aRacer Japan Online offers support for remote function unlocking. [Only applicable to manufacturer-authorized products]
*The included O2 sensor AF2 is not compatible with the normal muffler's 12mm port.
It is designed for aftermarket mufflers with an 18mm sensor type.
