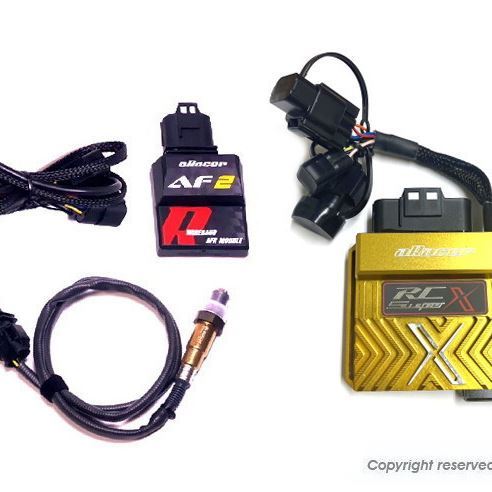

aRacer RC SuperX Complete ECU + AF2 Wideband O2 Sensor LSU4.9 (Air-Fuel Ratio Module) for Z125 PRO

【KN Planning PA-SG0140-SET aRacer RC SuperX Complete ECU + AF2 Wideband O2 Sensor LSU4.9 with Air-Fuel Ratio Module Z125 PRO Motorcycle Tuning ECU】
The latest version of the tuning ECU, essential for injection tuning! aRacer RC SuperX.
This kit is a set of a vehicle-specific full-control ECU unit and an AF2 O2 sensor module.
With AF2 included, creating fuel maps with the auto-tune function is incredibly easy.
High-performance compensation (closed-loop compensation) functions, quickly adapting to changes in atmospheric pressure and temperature.
Data log traces can be displayed on the map, allowing for smooth adjustments.
The ECU unit is a coupler-on replacement for the stock unit. *Note:
Vehicle-specific base maps are provided, allowing for smooth setup.
The ECU unit has built-in Wi-Fi, enabling wireless communication.
Simple adjustments are also possible by downloading the smartphone app.
PC software and manuals can be downloaded here.
Please refer to this for usage instructions.
For more details, please visit the aRacer website.
Specifications
【Evolution from Super2】
The MCU is now 6-core, significantly improving processing speed. Control accuracy is further enhanced.
The external design has changed, improving heat dissipation.
Wireless connection is now Wi-Fi, greatly increasing file transfer speed!
Logging is now possible with 33% increased onboard memory capacity.
The PC software SpeedTuningX has improved usability. We have incorporated our experience
and added functions to better suit the usage conditions of our Japanese customers.
The scale values for fuel map and ignition timing map graphs can now be set arbitrarily,
allowing for more detailed setting of frequently used RPMs.
In addition to the conventional method, auto-tune can now be executed with a map based on the graph's vertical axis TPS%,
improving usability.
Compatible model: Z125 PRO
*ECUs differ by model year. Please inquire for details.
Set contents/accessories: RC SuperX ECU unit x 1
AF2 Wideband O2 Sensor LSU4.9 with Air-Fuel Ratio Module x 1
Dedicated app aRacer X Tune Japanese manual (downloadable version)
■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications may change without notice. Please understand.
Precautions
*ECU tuning should be performed by skilled individuals with knowledge. Incorrect settings can cause engine damage.
*A PC and internet connection environment are required. Dedicated software SpeedTuningX is used for setting.
*The dedicated app aRacer X Tune can be used for simple settings,
but iOS (iPhone) is recommended. Android devices may not be able to connect depending on the model.
*For wired connections, conventional iLink cables cannot be used. Please use a dedicated ProLink cable.
*The O2 sensor alone is only covered by warranty for initial defects. Defects after the first ride are not covered by warranty. Please be aware.
*Please inquire before purchasing if you have any questions.
*The included O2 sensor AF2 is not compatible with standard 12mm exhaust pipes.
It is designed for 18mm sensor types, such as aftermarket exhaust pipes.
