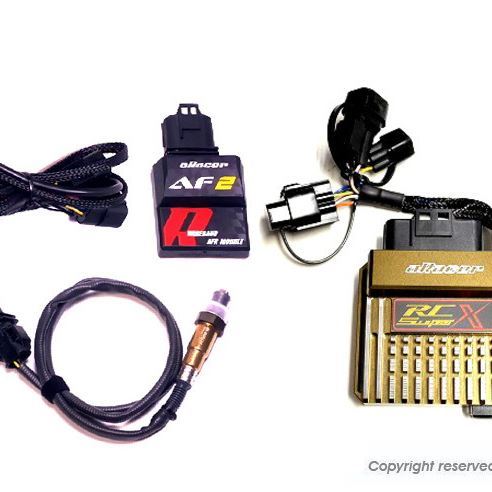

aRacer RC SuperX Complete ECU + AF2 Wideband O2 Sensor LSU4.9 with AFR Module GSX-R150

【KN Planning PA-SG096-SET aRacer RC SuperX Complete ECU + AF2 Wideband O2 Sensor LSU4.9 Included Air-Fuel Ratio Module for GSX-R150 Motorcycle Tuning ECU】
The latest version of the tuning ECU, indispensable for injection tuning: aRacer RC SuperX.
This kit is a set of a vehicle-specific full-control ECU unit and an AF2 O2 sensor module.
With the included AF2, creating fuel maps is extremely easy using the auto-tune function.
High-performance compensation (closed-loop compensation) functions, quickly adapting to changes in atmospheric pressure and temperature.
Data log traces can be displayed on the map, allowing for smooth adjustments.
The ECU unit is a coupler-on replacement for the genuine one.
Vehicle-specific base maps are provided, ensuring smooth setup.
The ECU unit has built-in Wi-Fi, enabling wireless communication.
Simple adjustments are possible by downloading the smartphone app.
PC software and manuals can be downloaded here.
Please refer here for usage instructions.
For more details, please visit the aRacer website.
Specifications
【Evolution from Super2】
The MCU now has 6 cores, significantly improving processing speed. Control precision is now finer.
The exterior design has changed, leading to improved heat dissipation.
Wireless connection is now Wi-Fi, greatly increasing file transfer speed!
Logging is possible with a 33% increase in main memory capacity.
PC software SpeedTuningX has improved usability. We have incorporated our experience
and added functions to better suit the usage patterns of our Japanese customers.
The scale values for fuel maps and ignition timing maps can now be set arbitrarily,
allowing for more precise settings at frequently used RPMs.
In addition to the conventional method, auto-tune can now be executed on maps with a vertical graph scale of TPS%,
further improving usability.
Compatible model: SUZUKI GSX-R150
*While we have information on diversion to the GSX-R125,
it is not compatible with models from 2023 onwards due to a different ECU connector shape.
Set contents/accessories: RC SuperX ECU unit ×1
AF2 Wideband O2 Sensor LSU4.9 included Air-Fuel Ratio Module ×1
Dedicated app aRacer X Tune Japanese manual (downloadable version)
■Notes on images
*Images are for illustration purposes only. Includes products of different sizes and colors. Product designs and specifications are subject to change without notice. Please be aware.
Precautions
*ECU tuning should be performed by skilled individuals with knowledge. Incorrect settings can cause engine damage.
*A PC and internet connection are required. Dedicated software SpeedTuningX is used for tuning.
*The dedicated app aRacer X Tune can be used for simple settings, but
iOS (iPhone) is recommended. Android devices may not be able to connect depending on the model.
*For wired connections, conventional iLink cables cannot be used. Please use the dedicated ProLink cable.
*The O2 sensor alone is only covered for initial defects. Defects after the first ride are not covered by warranty. Please be aware.
*Please inquire before purchasing if you have any questions.
*The included O2 sensor AF2 is not compatible with 12mm standard mufflers.
It is designed for 18mm sensor types found on aftermarket mufflers, etc.
