aRacer RC SuperX Complete ECU NMAX 125/155 V2/2nd Gen Motorcycle

【KN企画 PA-SGM03 aRacer RC SuperX Complete ECU for NMAX125/155 V2/Type 2 Motorcycle】
■aRacer【RC SuperX Complete ECU】

Specifications
The latest version of the tuning ECU essential for injection tuning! This is the aRacer RC SuperX.

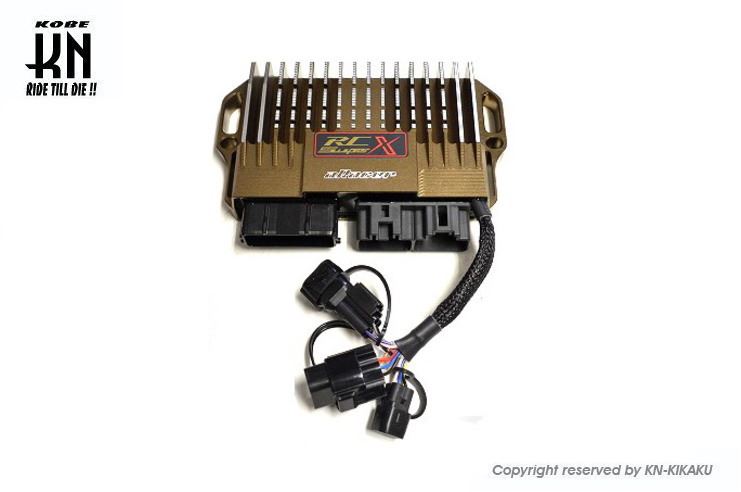

This kit is a set of a vehicle-specific full-control ECU unit and an AF2 O2 sensor module.
Since AF2 is included, it is very easy to create a fuel map using the auto-tune function.
High-performance compensation (closed-loop compensation) functions to quickly follow changes in atmospheric pressure and temperature.
The trajectory of the data log can be displayed on the map, allowing for smooth adjustments.
The ECU unit is a coupler-on replacement for the genuine one.
Vehicle-specific base maps are provided, allowing for smooth setup.
The ECU unit has Wi-Fi built-in, enabling wireless communication.
Simple adjustments are also possible by downloading the smartphone app.
【Evolution from Super2】

The MCU is now 6-core, significantly improving processing speed. Control accuracy is further enhanced.
The exterior design has changed, improving heat dissipation.
Wireless connection is now Wi-Fi, greatly increasing file transfer speed!
The internal memory capacity has increased by 33%, allowing for more logging.
The PC software SpeedTuningX has improved usability. Functions have been added to better suit Japanese customers' usage based on feedback from KN Kikaku.
The graph scale values for the fuel map and ignition timing map can now be set arbitrarily, allowing for finer tuning of frequently used RPMs.
In addition to the conventional method, auto-tune can now be performed using a map with a vertical TPS% axis on the graph, further improving usability.
■Compatible Models
Yamaha NMAX125/155 【V2/Type 2】
(Genuine app Y-Connect cannot be used)
*The ECU differs depending on the model year.
Set Contents
RC SuperX ECU Unit x 1
Dedicated app aRacer X Tune Japanese Instruction Manual (downloadable)
Precautions
*ECU tuning should be performed by experienced individuals with knowledge. Incorrect settings can cause engine damage.
*A PC and internet connection environment are required. The dedicated software SpeedTuningX is used for settings.
*The dedicated app aRacer X Tune can be used for simple settings, but
iOS (iPhone) is recommended. Android may not be able to connect depending on the model.
*For wired connections, the conventional iLink cable cannot be used. Please use the dedicated ProLink cable.
*Simultaneous use with the AF2 O2 sensor module is recommended.
*For vehicles with TCS, the operation method will be different from the genuine one, and settings can be made on the ECU.
*The Yamaha genuine app Y-Connect cannot be used.
*The images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
