Aracer RC SuperX Complete ECU AF2 Wideband O2 Sensor LSU4.9 Included Air-Fuel Ratio Module Aerox 155/NVX155 '17-'20 Motorcycle

【KN企画 PA-SGM04-SET aRacer RC SuperX Complete ECU with AF2 Wideband O2 Sensor LSU4.9 and Air-Fuel Ratio Module for Aerox 155/NVX 155 '17-'20 Motorcycles】
■aRacer【RC SuperX Complete ECU】
+【AF2 Wideband O2 Sensor LSU4.9 Included Air-Fuel Ratio Module】

Specifications
The latest version of the tuning ECU essential for injection tuning: the aRacer RC SuperX.
This kit includes the vehicle-specific full ECU unit and the AF2 O2 sensor module.
Since AF2 is included, creating a fuel map is very easy with the auto-tune function.
High-performance correction (closed-loop correction) functions to quickly adapt to changes in atmospheric pressure and temperature.
The data log trajectory can be displayed on the map, allowing for smooth adjustments.
The ECU unit is a coupler-on replacement for the genuine one.
Vehicle-specific base maps are provided, allowing for smooth setup.
The ECU unit has built-in Wi-Fi, enabling wireless communication.
Simple adjustments are also possible by downloading the smartphone app.
【Evolution from Super2】

The MCU is now 6-core, significantly improving processing speed. Control precision is further enhanced.
The exterior design has changed, and heat dissipation has improved.
Wireless connection is now Wi-Fi, greatly increasing file transfer speed!
The main unit's memory capacity has increased by 33%, allowing for more logging.
The PC software SpeedTuningX has improved usability. Based on KN Planning's experience, functions have been added to better suit the usage conditions of Japanese customers.
The graph scale values for the fuel map and ignition timing map can now be set arbitrarily, allowing for more precise tuning of frequently used RPMs.
In addition to the conventional method, auto-tune can now be executed on a map with TPS% as the vertical axis of the graph, further improving usability.
■Compatible Models
AEROX155/NVX155【2017-2020】

*The ECU varies depending on the model year.

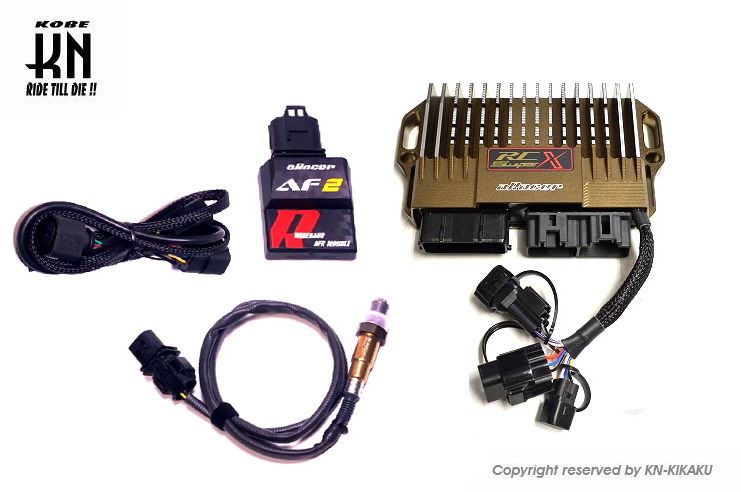

Set Contents
RC SuperX ECU unit ×1
AF2 Wideband O2 Sensor LSU4.9 Included Air-Fuel Ratio Module ×1
Dedicated app aRacer X Tune Japanese manual (downloadable version)
Precautions
*ECU tuning should be performed by skilled individuals with knowledge. Incorrect settings can cause engine damage.
*A PC and internet connection are required. The dedicated software SpeedTuningX is used for settings.
*The dedicated app aRacer X Tune can be used for simple settings, but iOS (iPhone) is recommended.
Android devices may not connect depending on the model.
*For wired connections, the conventional iLink cable cannot be used. Please use the dedicated ProLink cable.
*For vehicles with TCS, the operation method will differ from genuine, and settings can be made on the ECU.
*The Yamaha genuine app Y-Connect cannot be used.
*The included O2 sensor AF2 is not compatible with normal 12mm exhaust pipes.
It is for 18mm sensor type aftermarket mufflers.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
