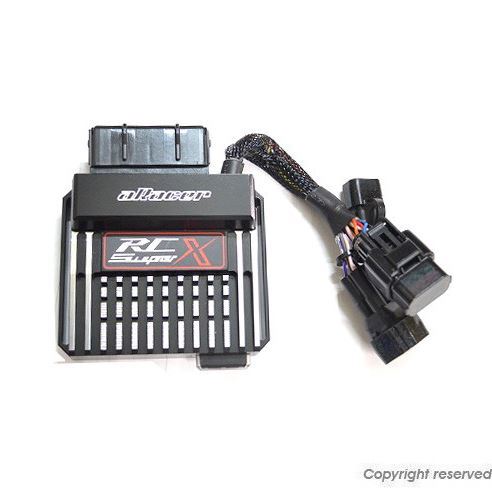

aRacer RC SuperX Complete ECU GSX-R150

【KN Planning PA-SX096 aRacer RC SuperX Complete ECU GSX-R150 Motorcycle Tuning ECU】
The latest version of tuning ECUs, indispensable for injection tuning! This is the aRacer RC SuperX.
If you connect the separately sold O2 sensor module AF2,
creating a fuel map is very easy with the auto-tune function.
The data log trace can be displayed on the map, allowing for smooth adjustments.
The ECU unit is a coupler-on replacement for the genuine one.
Since a base map for each vehicle model is prepared, settings can be made smoothly.
The ECU unit has built-in Wi-Fi, enabling wireless communication.
Simple adjustments are possible by downloading the smartphone app.
PC software and instructions can be downloaded from here.
Please refer to here for usage instructions.
For more details, please visit the aRacer website.
Specifications
【Evolution from Super2】
The MCU now has 6 cores, significantly improving processing speed. Control accuracy is more precise.
The exterior design has changed, and heat dissipation has improved.
Wireless connection is now Wi-Fi, significantly increasing file transfer speed!
Logging is possible with a 33% increase in main unit memory capacity.
The PC software SpeedTuningX has improved usability. We have incorporated our experience
and added functions to better suit the usage patterns of Japanese customers.
The graph scale values for the fuel map and ignition timing map can now be set arbitrarily,
allowing for more detailed settings for frequently used RPMs.
In addition to the conventional method, auto-tune can now be executed with a map using TPS% as the vertical axis of the graph,
improving usability.
Compatible model: SUZUKI GSX-R150
※Although we have received information about its use on GSX-R125,
it is not compatible with models from 2023 onwards due to a different ECU connector shape.
Set contents/accessories: RC SuperX ECU unit x 1
Dedicated app aRacer X Tune Japanese manual (downloadable version)
■Notes on images
※Images are for illustration purposes only. Includes products with different sizes and colors. Product designs and specifications are subject to change without notice. Please understand.
Precautions
※ECU tuning should be performed by experienced and knowledgeable individuals. Incorrect settings can cause engine damage.
※A PC and internet connection environment are required. The dedicated software SpeedTuningX is used for settings.
※The dedicated app aRacer X Tune can be used for simple settings, but iOS (iPhone) is recommended.
Android devices may not be able to connect depending on the model.
※For wired connections, conventional iLink cables cannot be used.
Please use the dedicated ProLink cable.
※Simultaneous use with the AF2 O2 sensor module is recommended.
※Please inquire before purchasing if you have any questions.
