aRacer RC SuperX Complete ECU + AF2 Wideband O2 Sensor with LSU4.9 Air-Fuel Ratio Module XMAX250 BPV 2023

【KN Planning PA-SX158-SET aRacer RC SuperX Complete ECU + AF2 Wideband O2 Sensor LSU4.9 included Air-Fuel Ratio Module XMAX250 BPV 2023】
The latest version of the tuning ECU essential for injection tuning! This is the aRacer RC SuperX.
This kit is a set of a vehicle-specific full-control ECU unit and an AF2 O2 sensor module.
With AF2 included, creating fuel maps is incredibly easy thanks to the auto-tune function.
High-performance compensation (closed-loop compensation) functions, quickly adapting to changes in atmospheric pressure and temperature.
The trajectory of data logs can be displayed on the map, allowing for smooth adjustments.
The ECU unit is a coupler-on replacement for the genuine one.
Vehicle-specific base maps are available, enabling smooth setup.
The ECU unit is equipped with Wi-Fi for wireless communication.
Simple adjustments are possible by downloading the smartphone app.
PC software and manuals can be downloaded here.
Please refer here for usage instructions.
For more details, please visit the aRacer website.
Specifications
【Evolution from Super2】
The MCU now has 6 cores, significantly improving processing speed. Control accuracy is further refined.
The exterior design has changed, improving heat dissipation effectiveness.
Wireless connectivity is now Wi-Fi, greatly increasing file transfer speed!
Onboard memory capacity increased by 33% for logging.
PC software SpeedTuningX has improved usability. Incorporating our feedback,
functions tailored to the usage conditions of Japanese customers have been added.
The graph scale values for fuel maps and ignition timing maps can now be set arbitrarily,
allowing for finer tuning of frequently used RPM ranges.
In addition to the conventional method, auto-tune can now be executed with maps using the graph vertical axis TPS%
making it even more user-friendly.
Compatible models: XMAX250【BPV】2023～
*ECUs differ by model year. Please inquire for details.
*At present, it is not known if it can be installed on 【BDR】2022～.

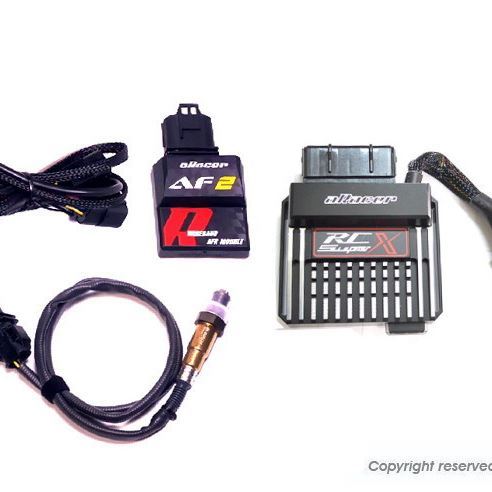

Set contents/accessories: RC SuperX ECU unit ×1
AF2 Wideband O2 Sensor LSU4.9 included Air-Fuel Ratio Module ×1
Dedicated app aRacer X Tune Japanese manual (downloadable version)
■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please understand.
Precautions
*ECU tuning should be performed by experienced individuals with knowledge. Incorrect settings can cause engine damage.
*A PC and internet connection environment are required. Dedicated software SpeedTuningX is used for tuning.
*The dedicated app aRacer X Tune can be used for simple tuning,
but iOS (iPhone) is recommended. Android devices may not be able to connect depending on the model.
*For wired connections, conventional iLink cables cannot be used. Please use the dedicated ProLink cable.
*The O2 sensor alone is only covered by warranty for initial defects. Defects after the initial run are not covered by warranty. Please be aware.
*Please inquire before purchasing if you have any questions.
