Aluminum Big Bore Kit 68mm/149/177cc for GSX-R125/150/GSX-S125/150 Motorcycle Custom Parts

【KN企画 S1016 Aluminum Big Bore Kit 68mm/149/177cc GSX-R125/150/GSX-S125/150 Motorcycle Custom Parts】
■Aluminum Plated Big Bore Kit【GSX-R125/150/GSX-S125/150】
68mm【149/177cc】

Specifications
Piston diameter 68mm, big bore cylinder kit.
Piston is forged aluminum, high compression specification.
Cylinder is aluminum with plating.
GSX-R(S)150 stock 62Φ×48.8mm(147cc) → 68Φ×48.8mm(177cc).
GSX-R(S)125 stock 62Φ×41.2mm(124cc) → 68Φ×41.2mm(149cc).
■Compatible Models
Suzuki GSX-R150 (2017-)
Suzuki GSX-S150 (2017-)
Suzuki GSX-R125 (2017-)
Suzuki GSX-S125 (2017-)

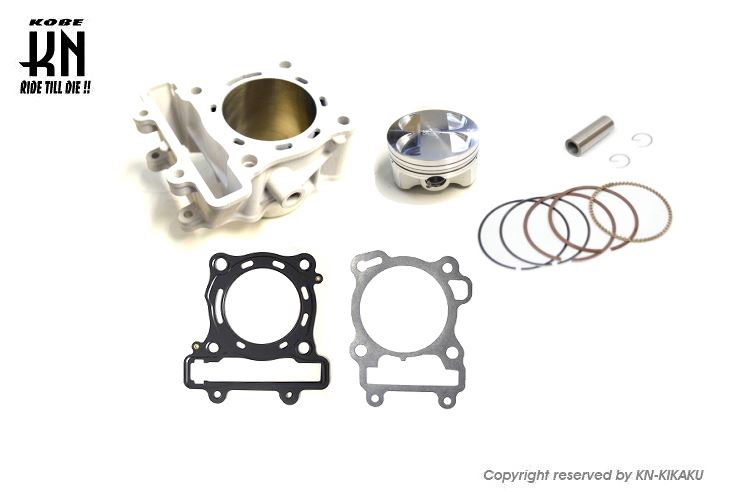

Set Contents
Cylinder ×1
Piston ×1
Head Gasket ×1
Base Gasket ×1
Piston Ring ×1 set
Piston Pin ×1
Circlip ×2
Precautions
*Basically for stock 150cc engines. Can also be installed on 125cc engines.
*Settings such as fuel adjustment are required. aRacer ECU is recommended.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
