STAGE6 High Speed Pulley Kit for Horizontal Engine JOG 50 Series

【KN Planning SG6-PL-01 STAGE6 High-Speed Pulley Kit for Horizontal Engine JOG50 Series】
・STAGE6 Horizontal Engine JOG50 Series High-Speed Pulley Kit
【Features】

・Race results: Achieved two consecutive championships in the Multi Cup FP class.
・A high-revving specification unprecedented for Yamaha-based pulleys.
・Compatible with a wide range of vehicles, from stock engines to those with big bore kits, high gears, or expansion chambers.

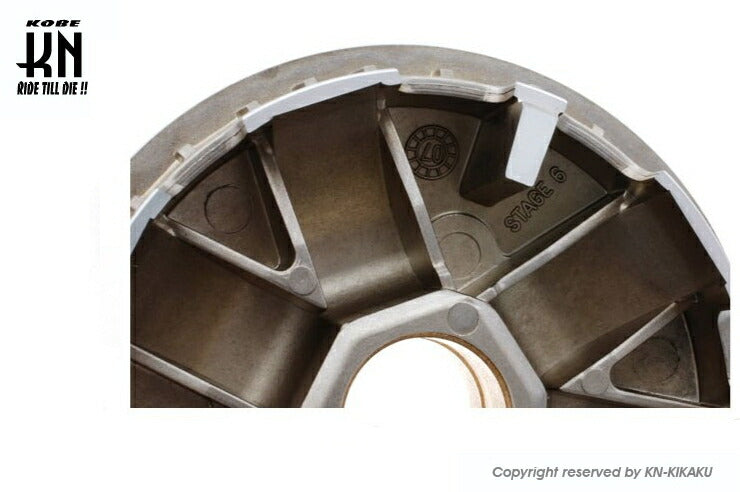

・The pulley body is forged, providing ample durability for fully tuned vehicles.
・Utilizing 16X13mm weight rollers provides a wider shifting range than standard pulleys.
・High compatibility is expected for engines that excel at high RPMs.
【Sizes】

・Pulley diameter: 96mm
・Face angle: approx. 15 degrees
・Boss length: 40mm
・Boss outer diameter: 20mm
・Shim washer outer diameter: 19.85mm
・Shim washer thickness: 0.5mm
・Ramp plate roller guide angle: approx. 25 degrees
・Weight roller size: 16X13
・Initial setting weight: 5g x 6
・Center spring: approx. 5% UP (compared to 3YK stock)
【Compatibility】

・Super JOG ZR【All years】

・JOG/-C【5BM】

・Aprio【4JP】

・Aprio Type 2【4LV】

・Aprio EX【4LV】

・JOG【3KJ/3YJ】

・JOG-Sports【3RY】

・Vino【5AU,SA10J】

・JOG-EX【3YK】

・JOG-Z【3YK】

・Super JOG-Z【3YK】

・JOG【3YJ】

・JOG-Z【3RY】

・JOG-Poche【5GD】

・Axis 50【3VR】

・Gear【4KN】

・Champ CX【3FC】
*Limited to Champ CX.
・BW'S 50【3AA】

・BW'S 50【5DA】

・JOG/Z(2)【5EM】

・Remote Control JOG Z(2)【5SW】

・Remote Control JOG【CV50R 5KN】

・Remote Control JOG ZR【CV50ZR 5PT】

・JOG Poche【SA08J】

・JOG【SA16J】

・BJ【SA24J】

・JOG【SA01J】

*Compatible with vehicles with thin crankshafts.

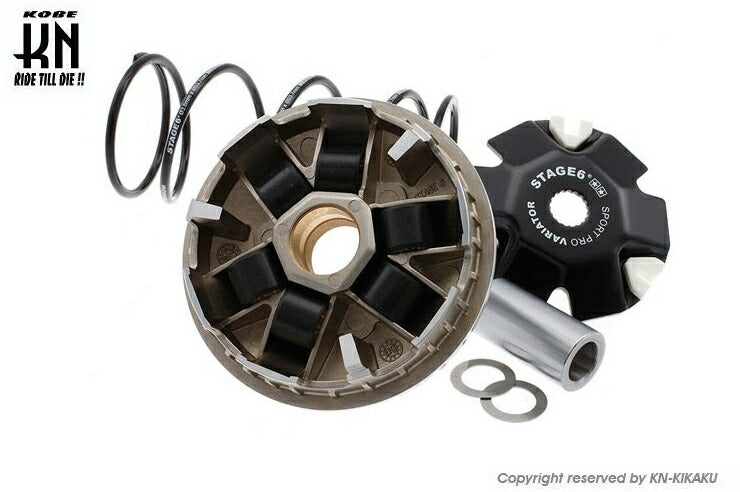

【Set Contents/Accessories】

・Pulley body x1
・Ramp plate x1
・Dedicated slide pieces x3
・Pulley boss x1
・Shim washers x2
・Center spring x1
・Weight rollers x6
【Manufacturer's Notes】

*There is no data available for diversion to models other than those listed as compatible.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
