Universal Shock Absorber 240mm Black

【KN Planning SU-240-BK Universal Shock Absorber 240mm Black 240mm Motorcycle Parts Custom Parts Suspension】
■Product Description

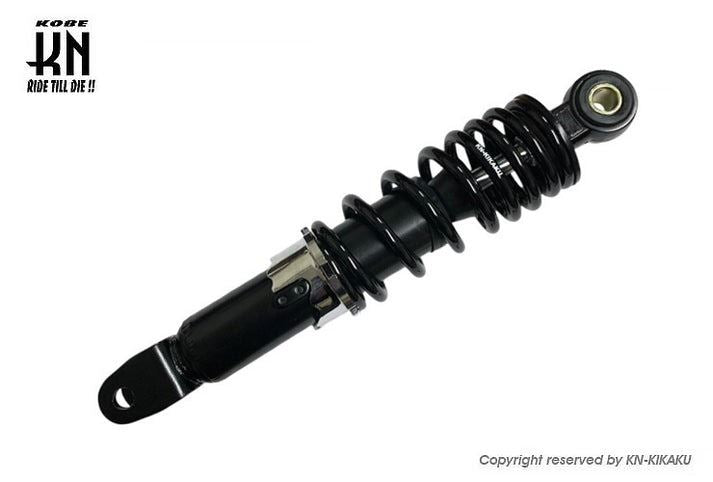

Universal Shock Absorber 240mm [Black]
【Features】
This is a universal 240mm cantilever type scooter rear shock.
5-step adjustable type
Depending on the model, the lower mounting width (crankcase side) may be narrow,
so please adjust with the included washer.
*Please consider the length before purchasing.
Can also be used universally.

■Specifications
【HONDA Reference Values】
Dio110【JF31】 310mm
Lead110/EX【JF19】 325mm
Lead50【AF20】 290mm
Lead90【HF05】 290mm
Live Dio/SR/ZX【AF34/35】 300mm
Super Dio/SR/ZX【AF27/28】 260mm
Dio【AF18/25】 245mm
Stand-up Tact ('91～'94) 260mm
Tact/S 260mm
DJ1-RR 260mm
Joker50 315mm
ZOOMER 254mm
TODAY【AF61】 256mm
Dio/Cesta【AF62】 256mm
Bite【AF59】 250mm
Smart Dio/DX/Z4【AF56・AF57】 250mm
【YAMAHA Reference Values】
Axis Street 315mm
BWS100 285mm
Grand Axis 240mm
AXIS90【3VR】 250mm
JOG90【3WF】 225mm
JOG/C【SA16J】 225mm
JOG-Z(2)【SA16J】 240mm
Remote JOG-ZR 240mm
BJ【SA24J】 220mm
JOG【SA01J/SA04J/SA12J】 220mm
Super JOG-ZR【3YK】 240mm
Aprio Type 2 235mm
Aprio/EX 225mm
JOG Z(2)【SA04J】 220mm
JOG【3YJ】 225mm
Super JOG-Z【3YK】 225mm
JOG-Z/EX【3YK】 225mm
JOG【3KJ】 225mm
JOG/Sports【3RY】 225mm
Vino【5AU】 225mm
VOX 215mm
AXIS50【3VP】 250mm
BWS50【5DA】 285mm
Champ RS 280mm
Champ 235mm
【SUZUKI Reference Values】
Address V125 315mm
Address 110【CF11A】 300mm
Address V100 285mm
ZZ 12 inch 【AZ50RY】 300mm
Street Magic【TR50】 315mm
Let's (2)【CA1KA/CA1PA/CA1KB】 245mm
Let's【AS50】 245mm
Verde 245mm
Sepia ZZ【AJ50】 265mm
Sepia ZZ【AF50】 265mm
Sepia【AJ50】 265mm
Sepia【AF50】 265mm
Sepia RS 265mm
Address 50 ('98) 285mm
Address V/Tune ('91～'92) 265mm
Address/Way ('87～'90) 265mm
Hi-UP R ('88～'90) 255mm
Hi-R 275mm
Hi 255mm
*For Let's (2), processing is required to install an aftermarket rear shock as it interferes with the genuine rear fender/air cleaner box.
*Please refer to the genuine size reference values.
*Some models may have difficulty with the length, or it may be physically impossible to install.
Please carefully consider the size before ordering.
Color: Body...Black
Spring...Black
Size: ■Bolt spacing 240mm
■Overall width: 50mm (maximum spring diameter)
■Thickness of upper bush side mounting part: 20mm
■Inner diameter of color inside upper bush: 10mm
■Spacing of lower U-shaped part: 20.5mm
■Mounting bolt for lower U-shaped part: M8

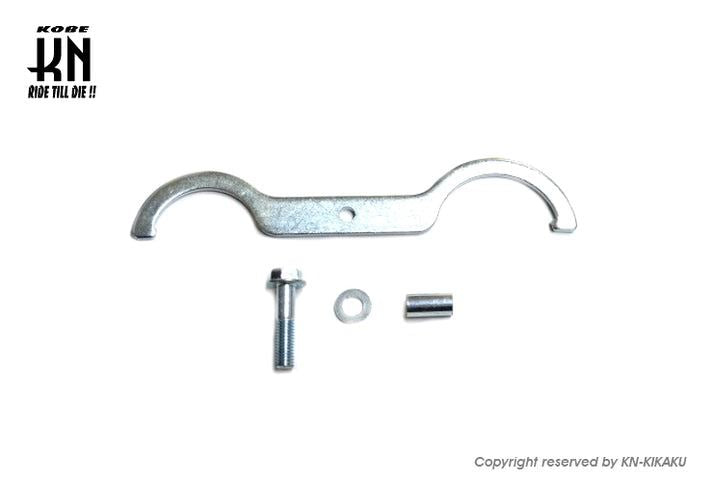

Accessories: Main shock x 1
Adjustment washer x 1
8mm bolt x 1
Conversion collar (for Suzuki models with existing 10mm bolt hole, etc.) x 1

■Other Notes
■Before purchasing, please be sure to measure the actual length of your current shock.
■We recommend a value of around 20mm as a standard.
■If the length is different from the genuine part, it may interfere with driving.
■Please consider the length of your motorcycle before purchasing.
■The shape of the wrench may change depending on the rod.

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications may change without prior notice. Please understand.
