Universal Shock Absorbers Black 245mm

【KN Planning SU-245-BK2 Universal Shock Absorber Black 245mm Motorcycle Parts Custom Parts Suspension】
■Product Description

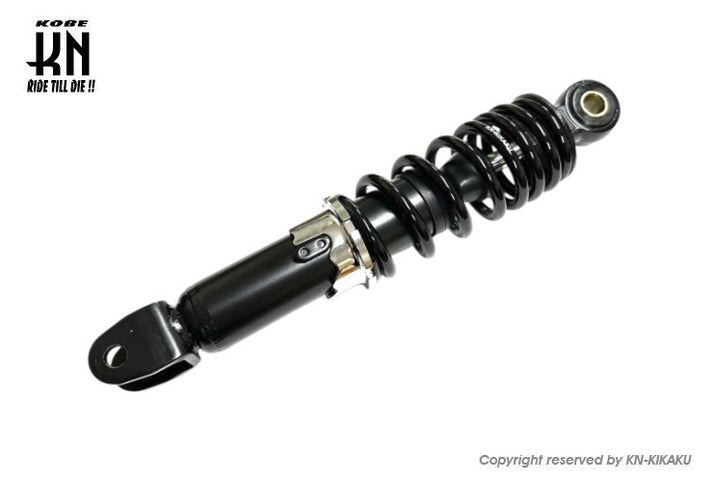

Universal Shock Absorber 245mm [Black]
【Contents】
5-step adjustable type
Depending on the model, the lower mounting point (crankcase side)
has a narrow mounting width, so adjust with the included washer.

■Specifications
【HONDA Reference Values】
Dio110【JF31】 310mm
Lead110/EX【JF19】 325mm
Lead50【AF20】 290mm
Lead90【HF05】 290mm
Live Dio/SR/ZX【AF34/35】 300mm
Super Dio/SR/ZX【AF27/28】 260mm
Dio【AF18/25】 245mm
Stand-up Tact ('91～'94) 260mm
Tact/S 260mm
DJ1-RR 260mm
Joker50 315mm
ZOOMER 254mm
TODAY【AF61】 256mm
Dio/Cesta【AF62】 256mm
Bite【AF59】 250mm
Smart Dio/DX/Z4【AF56・AF57】 250mm
【YAMAHA Reference Values】
Axis Street 315mm
BWS100 285mm
Grand Axis 240mm
AXIS90【3VR】 250mm
JOG90【3WF】 225mm
JOG/C【SA16J】 225mm
JOG-Z(2)【SA16J】 240mm
Remote JOG-ZR 240mm
BJ【SA24J】 220mm
JOG【SA01J/SA04J/SA12J】 220mm
Super JOG-ZR【3YK】 240mm
Aprio Type 2 235mm
Aprio/EX 225mm
JOG Z(2)【SA04J】 220mm
JOG【3YJ】 225mm
Super JOG-Z【3YK】 225mm
JOG-Z/EX【3YK】 225mm
JOG【3KJ】 225mm
JOG/Sport【3RY】 225mm
Vino【5AU】 225mm
VOX 215mm
AXIS50【3VP】 250mm
BWS50【5DA】 285mm
Champ RS 280mm
Champ 235mm
【SUZUKI Reference Values】
Address V125 315mm
Address 110【CF11A】 300mm
Address V100 285mm
ZZ 12 inch 【AZ50RY】 300mm
Street Magic【TR50】 315mm
Lets(2)【CA1KA/CA1PA/CA1KB】 245mm
Lets【AS50】 245mm
Verde 245mm
Sepia ZZ【AJ50】 265mm
Sepia ZZ【AF50】 265mm
Sepia【AJ50】 265mm
Sepia【AF50】 265mm
Sepia RS 265mm
Address 50('98) 285mm
Address V/Tune('91～'92) 265mm
Address/Way('87～'90) 265mm
Hi-UP R('88～'90) 255mm
Hi-R 275mm
Hi 255mm
* For Lets(2), processing is required to install aftermarket rear shocks due to interference with the genuine rear fender/air cleaner box.
* Please use genuine size as a reference.
* Depending on the model, the length may be difficult or physically impossible to install.
Please consider the size carefully before ordering.
Color: Body...Black
Spring...Black
Size: ■Bolt spacing 245mm
■Overall width: 50mm (maximum spring diameter)
■Thickness of bushing side mounting part: 20mm
■Inner diameter of color inside bushing: 10mm
■Distance of U-shaped part opposite to bushing: 20.5mm (inner dimension)
■Inner diameter of mounting bolt hole of the same U-shaped part: M8 (same as mirror's right-hand thread) 7.5mm

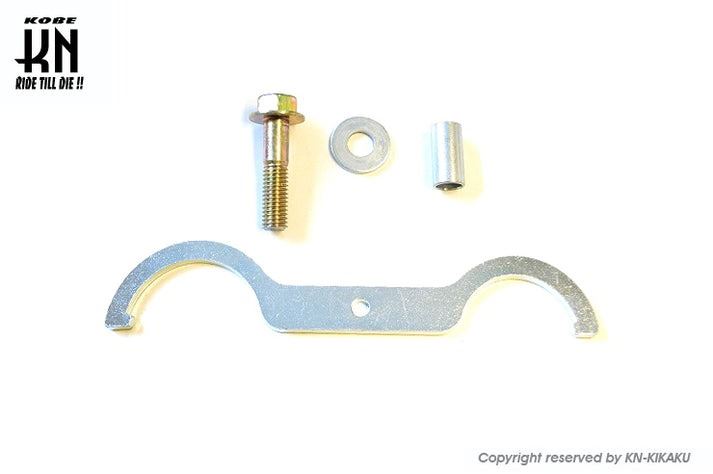

Accessories: Shock body
Adjustment washer
8mm bolt
Conversion color (e.g., when existing bolt hole is 10mm)
*Conversion for Suzuki vehicles included

■Other Notes
■Before purchasing, please be sure to measure the actual length of your current shock absorber.
■We recommend a value of approximately 20mm as a standard.
■If the length differs from the genuine part, it may interfere with driving.
■Please consider the length of your motorcycle before purchasing.
■The shape of the wrench may change depending on the production lot.

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Thank you for your understanding.
