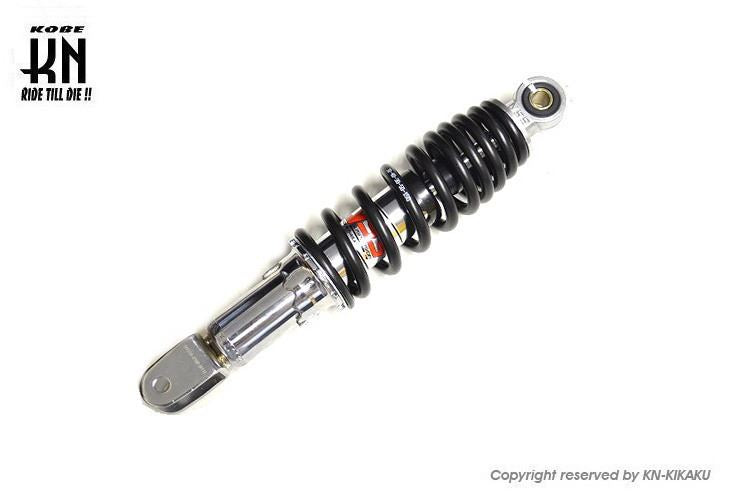

YSS Shock Absorber Chrome/Black 270mm Universal Motorcycle

【KN Planning SU-270-BK YSS Shock Absorber Chrome/Black 270mm Universal Motorcycle】
■5-step adjustable type
Depending on the model, the mounting width of the lower part (crankcase side) may be narrow. In that case, please adjust with washers etc.
A collar is included that allows the inner diameter of the upper collar to be changed from 10mm to 12mm, making this a highly versatile shock.
Specifications
Color: Chrome/Black
Size
Bolt spacing: 270mm
Overall width: 50mm (maximum spring diameter)

Thickness of upper mounting part: 20mm
Gap of U-shaped part: 20.5mm (inner dimension)

Mounting bolt for U-shaped part: M8
■Compatible models
Super Dio series
Live Dio series will result in a 40mm lowered ride height.
Address V125 will result in a lowered ride height.
Can also be used universally.
Honda scooters
Yamaha scooters
Suzuki scooters
*For SUZUKI scooters, please purchase this product. Product number: BOLT-S
*Some models may be difficult due to length or physically impossible to install. Please consider the size carefully before ordering.
Set contents
Main shock absorber
Adjustment washer

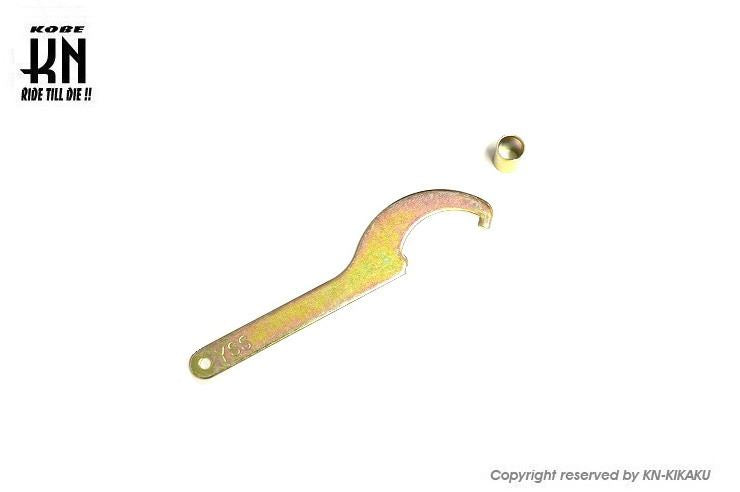

One separate collar with an inner diameter of 12mm included
*This collar is used when changing the upper collar's inner diameter from 10mm to 12mm.
*Images are for illustration purposes only, and the design and specifications of the products shown may be changed without notice. Please understand.
