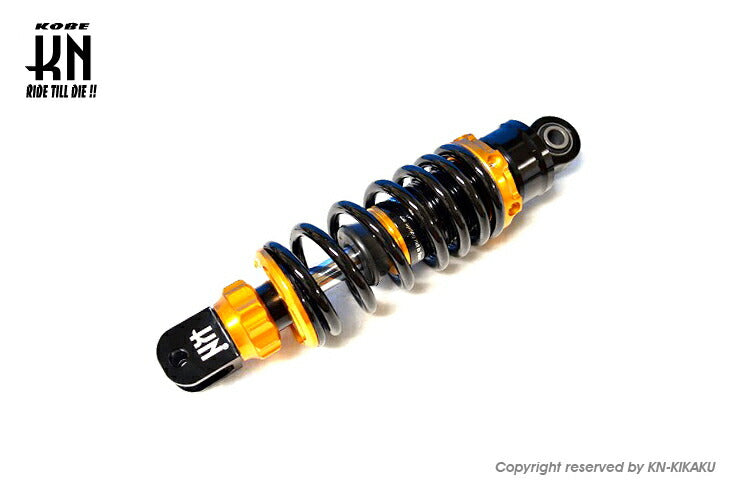

Super Shock 2 Adjustable Damping Gold 230mm

[KN Planning SU11-KN2-GD Super Shock 2 with Damping Adjustment, Gold, 230mm]
・Super Shock 2 [with damping adjustment]
230mm
[Product contents]

・Based on the original Super Shock, we pursued even more supple movement, and the Super Shock 2 was completed as a 2018 model.
・This is a general-purpose shock.
[Main body color]
Gold
[Size]

・Total length 230mm [distance from the center of the upper bolt to the center of the lower bolt]

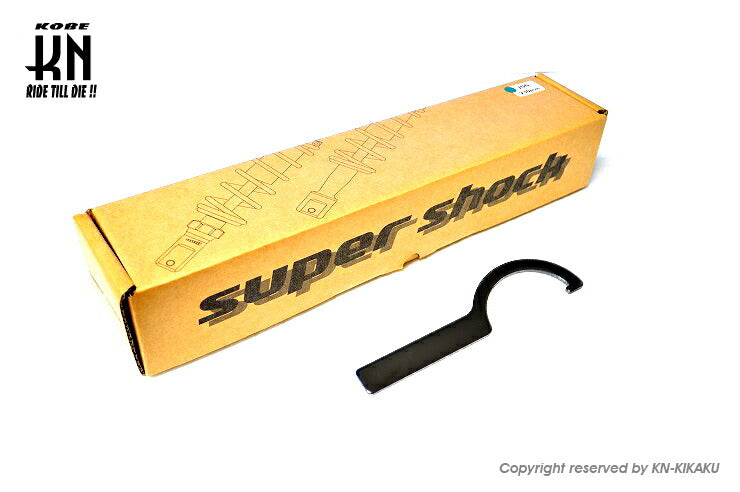

・Adjustment wrench included
・Rebound and compression damping 18-step adjustment
・Stepless initial adjustment
・Set screw bolt for anti-loosening included

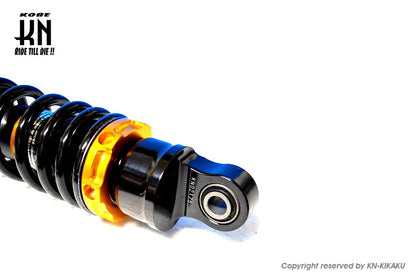

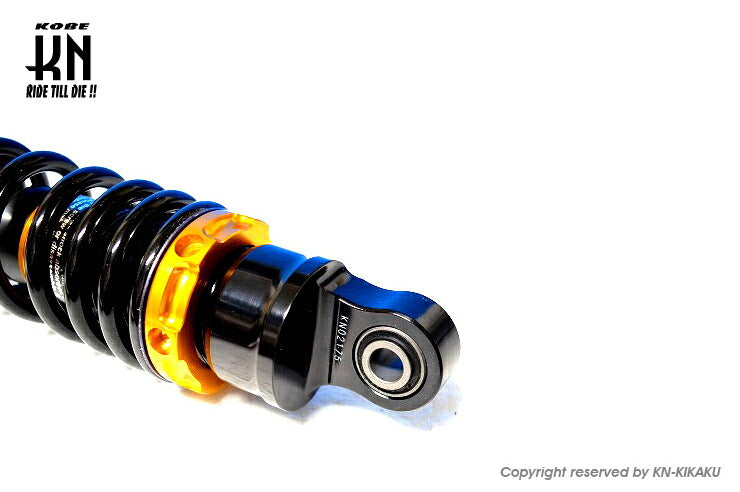

・Serial number included
・Offset amount of upper and lower vehicle mounting parts, A~F, is 0mm

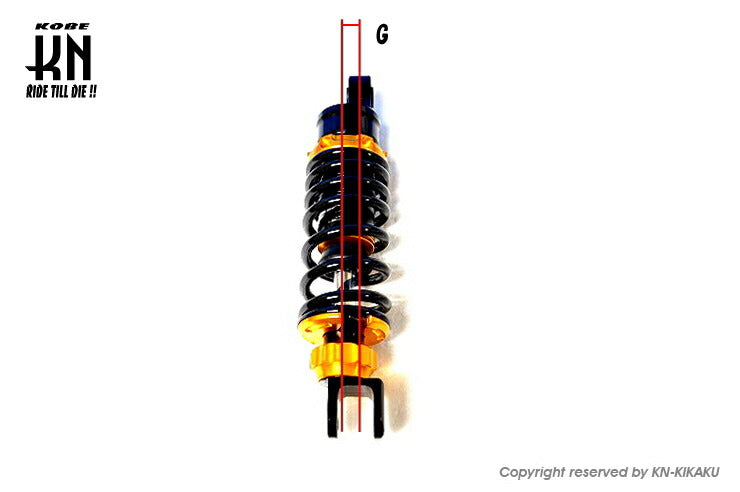

・Only the spring part is offset outwards: G=8mm offset
This allows for the installation of thick tires, etc.
・Rod diameter: 14.5mm

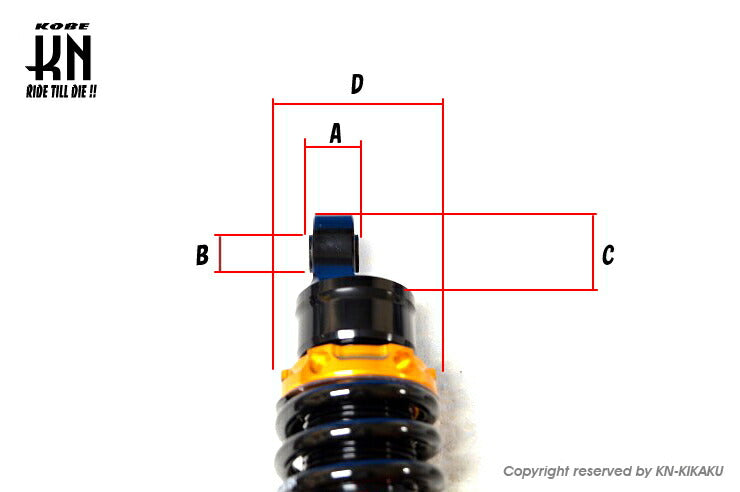

・Maximum diameter of spring part: D=57.5mm
・The upper bolt hole is for 10mm.
・Upper mounting width: A=19.9mm
・Inner diameter for upper bolt: B=10.1mm
・Neck length: C=39mm

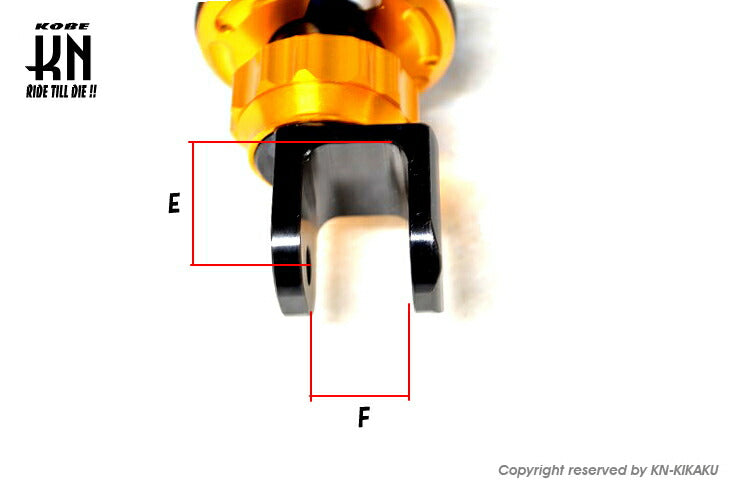

・From the center of the lower bolt to the top of the U-shape: E=23mm
・Maximum inner width of lower U-shape: F=20.1mm
・The lower bolt is for 8mm.
*Note: Consideration and ingenuity are required for interference, etc.
*Please purchase after carefully considering the total length.
[Applicable models]

・JOG series
・VOX
・Grand Axis, etc.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
