YSS DTG Reinforced Rear Shock Red 330mm Lead 125 Motorcycle Suspension Parts

[KN企画 YSS-LD125-01 YSS DTG Reinforced Rear Shock Red 330mm Lead 125 Motorcycle Suspension Parts]

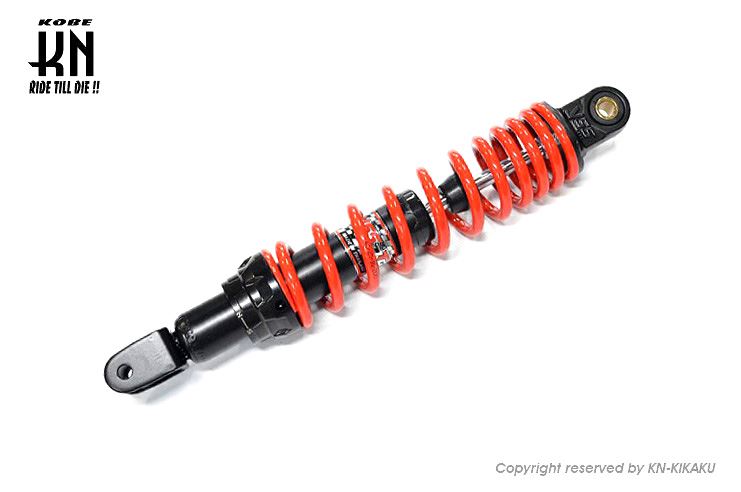

■YSS Reinforced Rear Shock 330mm [Lead 125/JF45]
Red
Specifications
Reinforced Rear Shock: 330mm
Spring Rate Adjustment: 5-step adjustment
Color
Adjuster Part: Black
Body: Black
Spring: Red
Size
Upper and Lower Mounting Center: 330mm

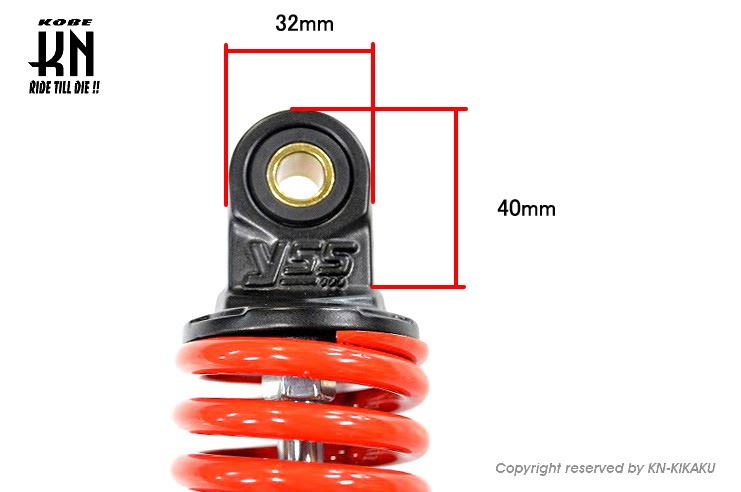

Upper Mounting Width: 20mm
Upper Mounting Collar Inner Diameter: 10mm (initial)
*Conversion collar 10mm -> 12mm included

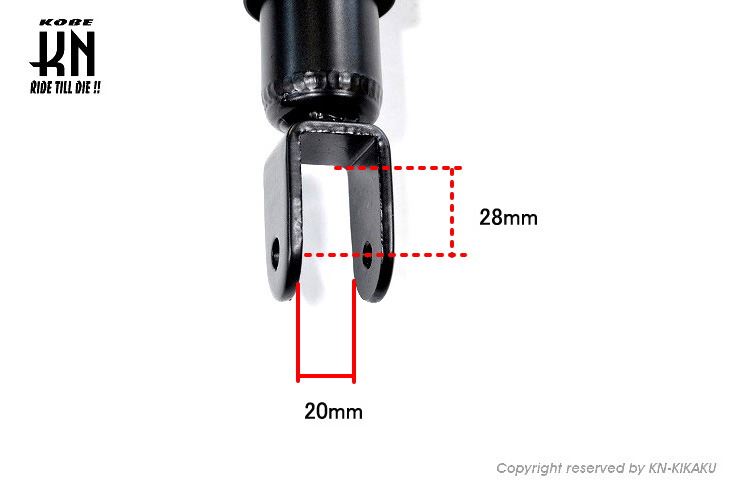

Lower Mounting Width: Inner dimension 20mm
Lower Mounting Screw: 8mm standard thread
Maximum Diameter: 56mm
Inner Tube Diameter: 10mm
■Compatible Models
Lead 125 [JF45]

Notes
*Please check the size of your vehicle before purchasing.
*The image is for illustrative purposes only, and the design and specifications of the product shown may change without notice. Thank you for your understanding.
