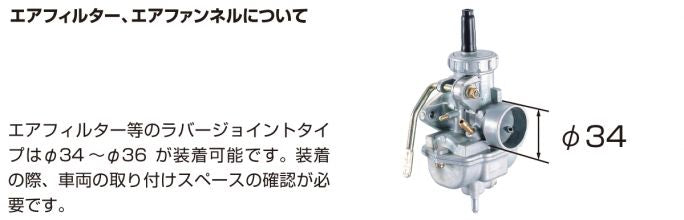

Big Carburetor Kit Keihin PCφ20 Left-side Outlet Type High Throttle Specification for Monkey/Gorilla, etc.

【KITACO 110-1015516 Big Carburetor Kit Keihin PCφ20 Left-Exit Type High-Throttle Specification for Monkey/Gorilla etc.】
・The most popular Keihin φ20 carburetor for 4-stroke mini bikes.
・Achieves power and torque unique to big carburetors.
・Two types available: Light Carburetor Kit, matched to the intake port diameter of stock cylinder heads, and Big Carburetor Kit, matched to the intake port diameter of bore-up cylinder heads.
Specifications
・Compatible with intake port diameter φ22 or larger
・M/J#85 P/J#35 pre-installed
*Cannot use stock air cleaner
Type
・Left-exit type
・High-throttle specification
【Compatible Models】

Monkey/Gorilla
・FNO, Z50J-1300017～
・FNO, AB27-1000001～1899999
Monkey Baja
・All models
Dax 50 (※1)
・6V ST50 all models
Dax 70 (※1)
・6V ST70 all models
Dax 50 (※1)
・12V AB26 all models
CD50
・FNO.CD50-1500001～
Benly 50S
・FNO.CD50-2200005～
Benly CL50
・FNO.CD50-4000001～
XR50R/CRF50F (※2)
・AE03 all models
Notes
*1: When installing on a Dax, a Kitaco Fuel Cock Type 1 is required.
*2: When installing on an XR50R/CRF50F, the stock handlebar cannot be used.
*Installation requires a φ22.2 handlebar, R lever & holder SET, front fork KIT, kill switch, etc.
*The image is for illustration purposes only, and the design and specifications of the product may change without prior notice. Thank you for your understanding.
