Piston Kit STD-Type 2/STD/ULTRA 88cc

【KITACO 350-1017202 Piston Kit STD-Type 2/STD/ULTRA 88cc Big Bore Repair Parts】

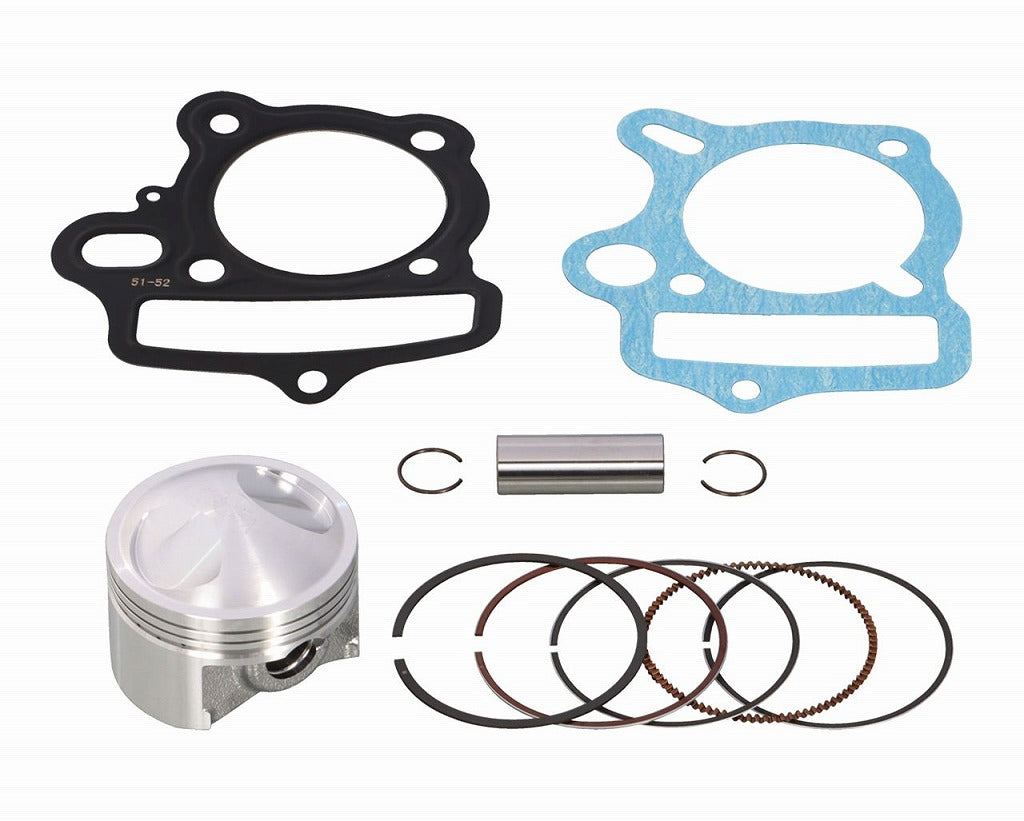

■This is a set of pistons and gaskets that come standard with the big bore kit.
Please use it for repairs, etc.
■Compatible Models
Compatible with the following KITACO big bore kits:
・STD-Type 2 88cc (Compatible Models B/C)
・STD 88cc (Compatible Models B/C)
・ULTRA 88cc (Compatible Models B/C)

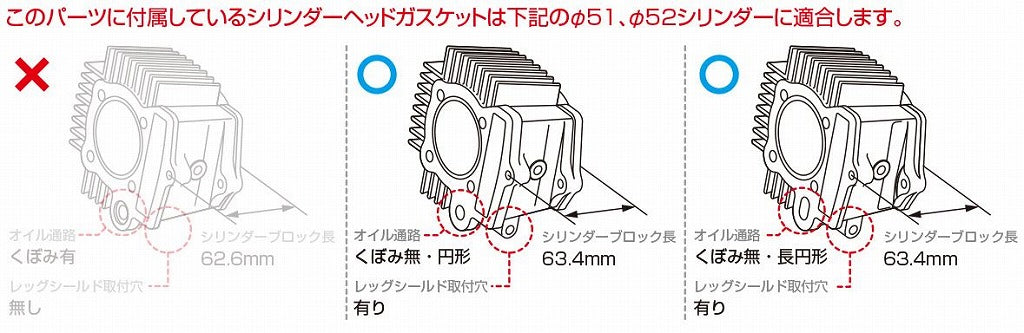

・Compatible with cylinders with cylinder block length 63.4mm, and oil passages with oval holes or circular holes.
■Specifications
Stainless steel head gasket specification
Type: STD-Type 2/STD/ULTRA 88cc
■Notes
*Each piston is designed to match the vehicle's model year, displacement, and cylinder head, so there is no interchangeability between pistons. Please purchase the piston kit after confirming the type of big bore, displacement, and vehicle model year.
*Current 85/88cc pistons are 0.8-0.8-1.5 piston ring specification. When ordering for repairs, etc., please confirm the size before placing your order.
*Pistons with 0.8-0.8-1.5 ring specifications have an "R" stamp.
*Cannot be used with stroke-up crankshafts.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
