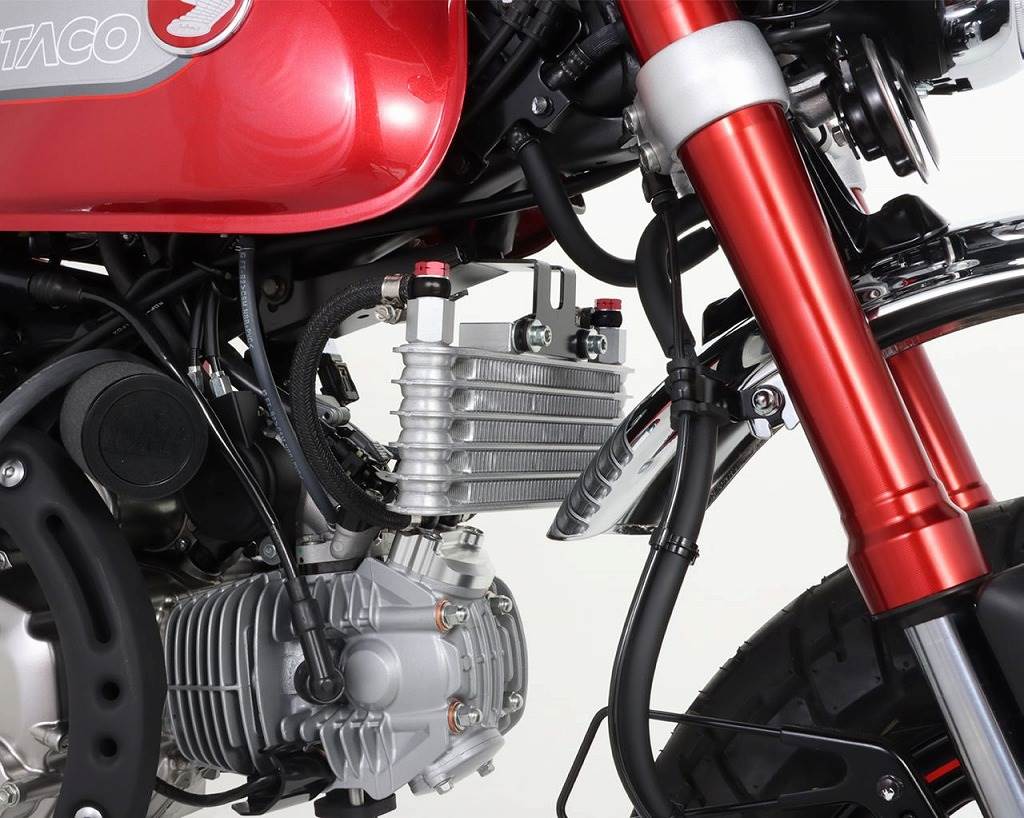

Super Oil Cooler Kit, 5-row Core, Frame Underside Mount, Monkey 125

【KITACO 360-1301200 Super Oil Cooler Kit, 5-stage Core, Frame Lower Mount for Monkey 125 Motorcycle Custom Parts】
An essential item for high-tuned engines, including bore-up engines.
Engines with increased RPM and performance generate enormous heat, and if left stock, they can overheat, seize, or be damaged. Therefore, we recommend installing an oil cooler.
The Super Oil Cooler KIT (5-stage core) boasts a heat dissipation capacity equivalent to a 400cc class oil cooler, ensuring stable engine performance even under harsh conditions such as racing or scorching heat.

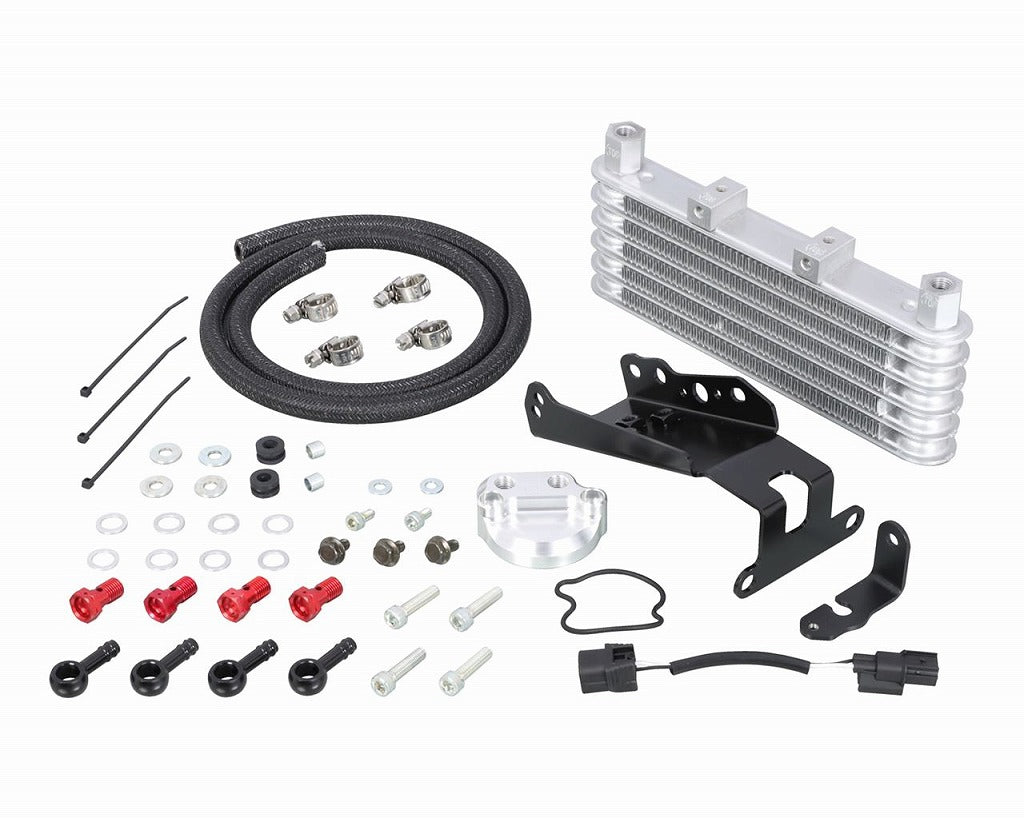

Vehicle-specific stays are included. Bolt-on installation is possible.
The oil cooler uses union bolts that offer greater flexibility in hose routing.
The union bolts are also color anodized.
Compatible models:
・Monkey 125 '21
All JB03 models
Specifications
5-stage core condenser
Extraction unit included
Sensor extension harness included
Stay: Black steel

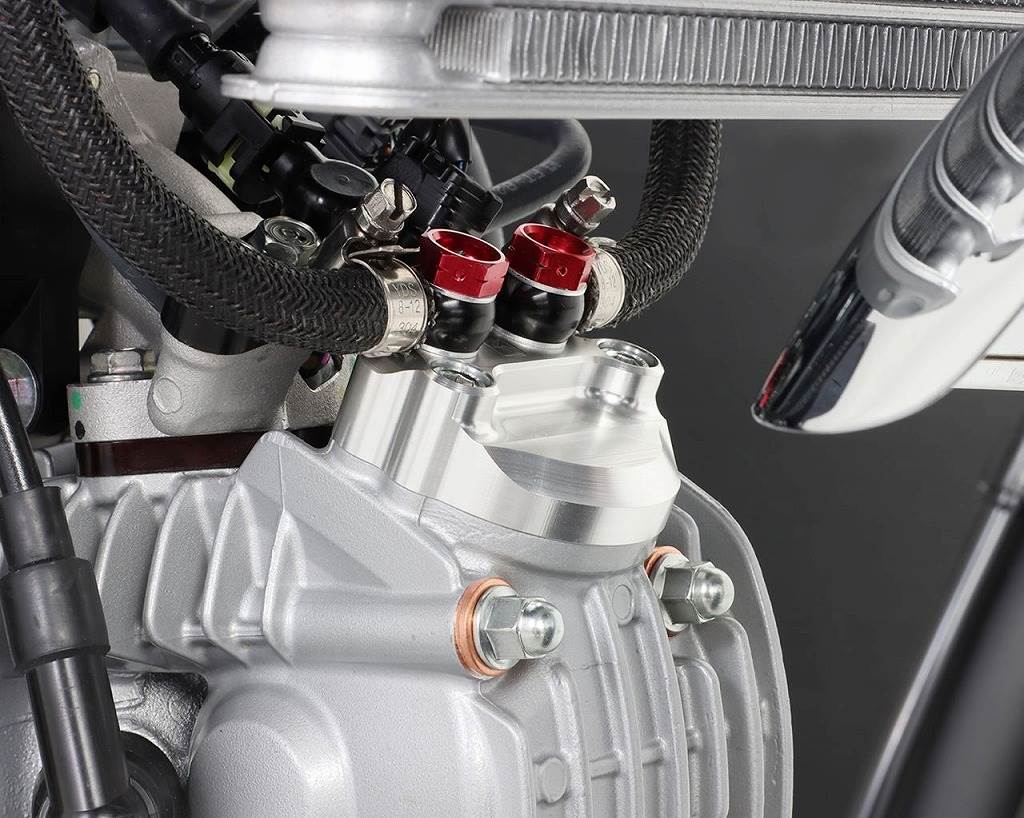

Oil outlet: Cylinder head upper tappet cap
Oil outlet: Machined aluminum / silver anodized
Oil capacity in condenser: 150cc (5-stage core)
Type: 5-stage core, frame lower mount
Precautions
*Cannot be used with normal air cleaner (separate UNI filter KIT is required.)
Please check the size and design before ordering.
*Images are for illustration purposes only, and the design and specifications of the products listed are subject to change without notice. Please understand.
