Super Oil Cooler Kit for 124cc Engines, 3-Stage Core, Mounts under Frame/Cylinder Head, Super Cub 110, Cross Cub 110

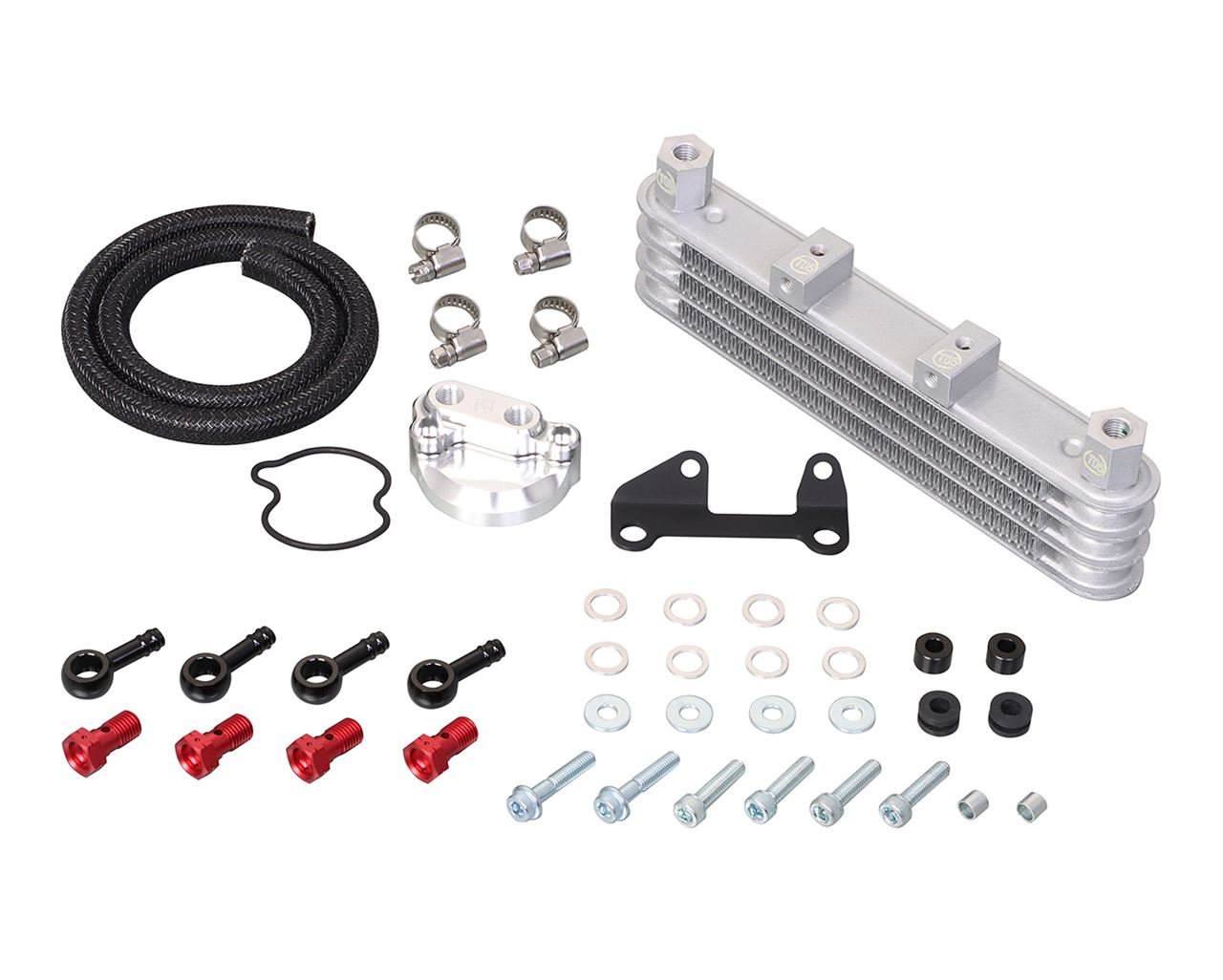

【KITACO 360-1456000 Super Oil Cooler Kit, Compatible with 124cc, 3-Stage Core, Under Frame/Under Cylinder Head Mount, Super Cub 110, Cross Cub 110 Motorcycle】
■Product Description
An essential item for high-tuned engines, including bore-ups. High-revving, high-performance engines generate enormous heat as a trade-off. Without an oil cooler, they may overheat, seize, or otherwise be damaged, so we recommend installing an oil cooler.

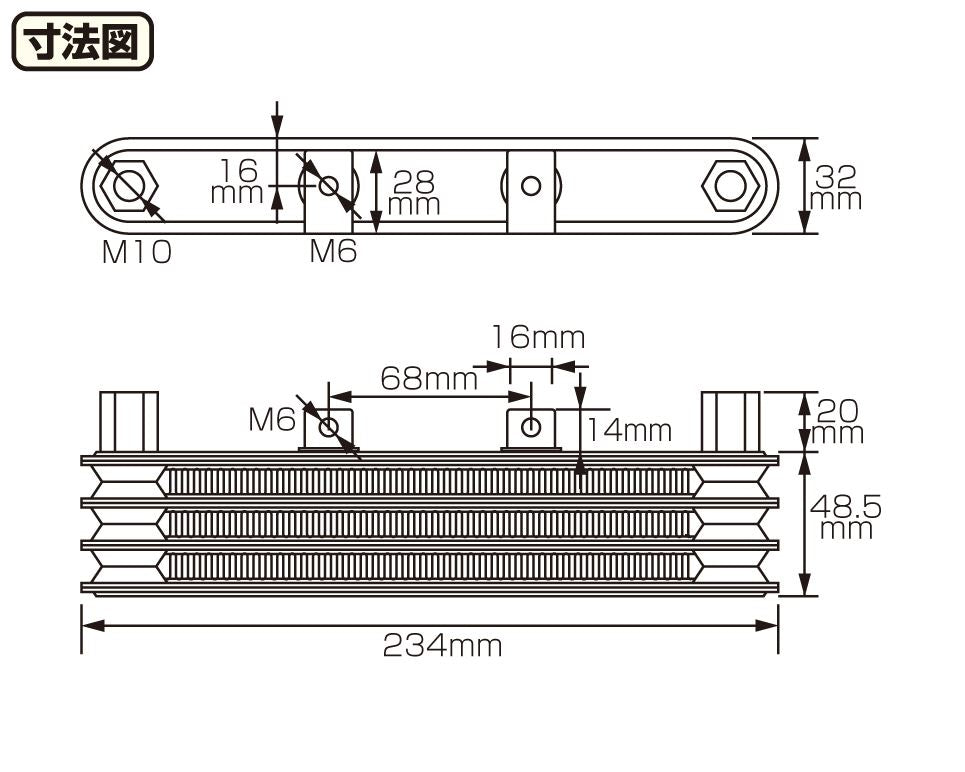

Specifications
Oil capacity in condenser: 75cc
Oil line extraction: Upper tappet cap on cylinder head
Included tappet cap: Machined aluminum
Stay: Steel/Black painted finish
Union nipple: Black specification

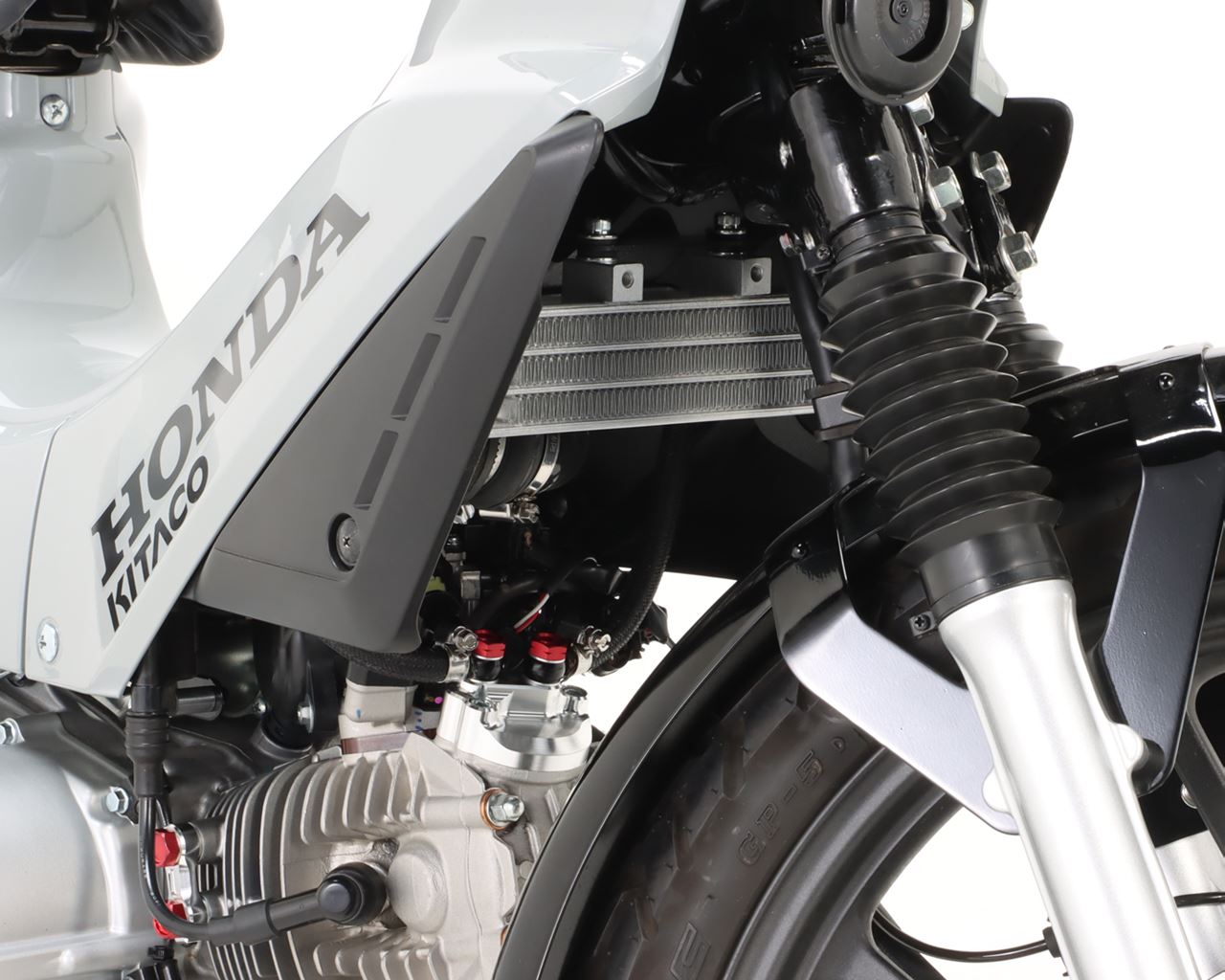

Normal air cleaner can be used when mounted under the cylinder head.
Type: 3-stage core, under frame/under cylinder head mount

■Compatible Models
Super Cub 110
All JA59 models
Cross Cub 110
All JA60 models
●Compatible with normal and KITACO 124cc bore-up kits.

Notes
*When mounting under the frame, the normal air cleaner cannot be used. A separate UNI filter kit and oil cooler hose (100cm) are required.
*For under-cylinder head mounting, the normal muffler cannot be used.
