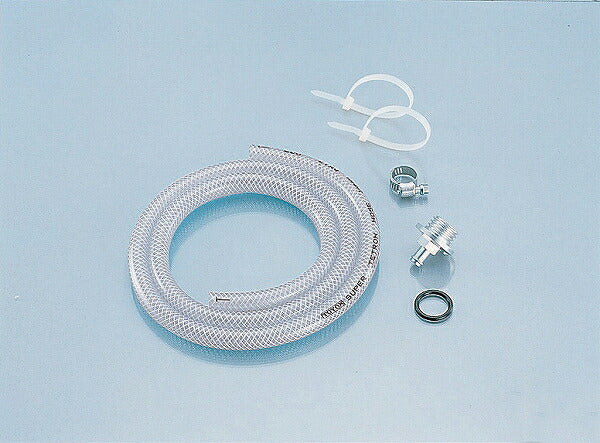

Breather Pipe Set (Type 2) B-3

【KITACO 513-1000002 Breather Pipe Set (Type 2) B-3 KITACO 513-1000002】
This product releases pressure inside the crankcase that hinders piston movement, preventing power loss.
It also suppresses temperature rise inside the crankcase.
The breather pipe vents to the atmosphere.
To prevent foreign objects from entering the engine, we recommend installing a breather filter at the end of the hose.
The breather pipe assembly facilitates the release of pressure inside the crankcase, reducing pumping loss and also suppressing engine temperature rise.
If the breather pipe is left to vent directly to the atmosphere, there is a risk of foreign objects entering the engine, so we recommend using it in conjunction with a breather filter.
Oil filler cap outlet type hose inner diameter φ8.0 / outer diameter φ13.5
The UN1 breather filter UPJ21 can be installed as a breather filter.
Compatible models
Honda: Monkey / Cub series engines (including FI models) / XR50/70R / CRF50/70F / Super Cub 110 / Smart DIO series / Zoomer (including FI models) / Bite / CB50 / APE50/100 / XR50/100 Motard / XR100R / CRF100F / CB90 / TL125S / XL125 / CB125 / FTR223 / CB250RS / ZXL250S/R / NSR250 / CBX250S / CBR250F / JADE / VFR400R (NC30) / CBR250R/250RR
Yamaha: Vino (4-stroke) / Cygnus X / TZR250 (rear exhaust) / TZR250R / TZR250/RI-Z / TDR250 / TZR125 / DT125R/200R / DT200WR / Serow 225 / SDR200 / TW200
*Images are for illustration purposes only. The design and specifications of the products shown may be changed without prior notice. Please understand.
