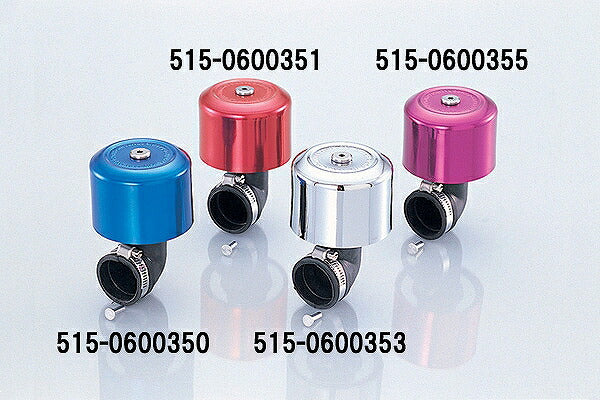

Super Power Filter All-Weather φ35 90° Elbow Chrome Plated

【KITACO 515-0600353 Super Power Filter All-Weather φ35 Elbow 90° Chrome Plated KITACO 515-0600353】
This air filter is recommended for normal carburetors.
As the intake efficiency will change, carburetor settings are required.
When driving in the rain, water may enter the filter, which may alter carburetor settings.
For emission-regulated models from 2000 onwards: For emission-regulated models, setting may not be possible due to lean combustion, so installation of power filters and the like is not recommended.
For F1 vehicles: Do not install power filters, air funnels, etc., as is on F1 vehicles, as this will disrupt fuel regulation.
However, this excludes cases where a device capable of fuel adjustment (injection controller, KITACO I-MAP) is installed and settings can be made.<
If the filter bore is a few millimeters smaller than the carburetor bore of your vehicle, it will be a bit tight when fitting, but can be installed by pushing it on.
If a long rear shock is installed, the filter may interfere with the body.
This type is less affected by conditions.
With a hood, it effectively protects against dust and dirt, as well as rain.
It improves intake efficiency and increases power.
Pay attention to the installation angle. If the cover is installed upside down, water may accumulate inside the cover during rainfall, which could impede air intake.
The dimensions indicate the length from the top of the filter to the bottom of the rubber pipe, with the filter placed vertically.
Carburetor settings are required during installation.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
