Gear Position Indicator 1 Set for CT125 Hunter Cub JA65-1100001~ and Dax125 JB06

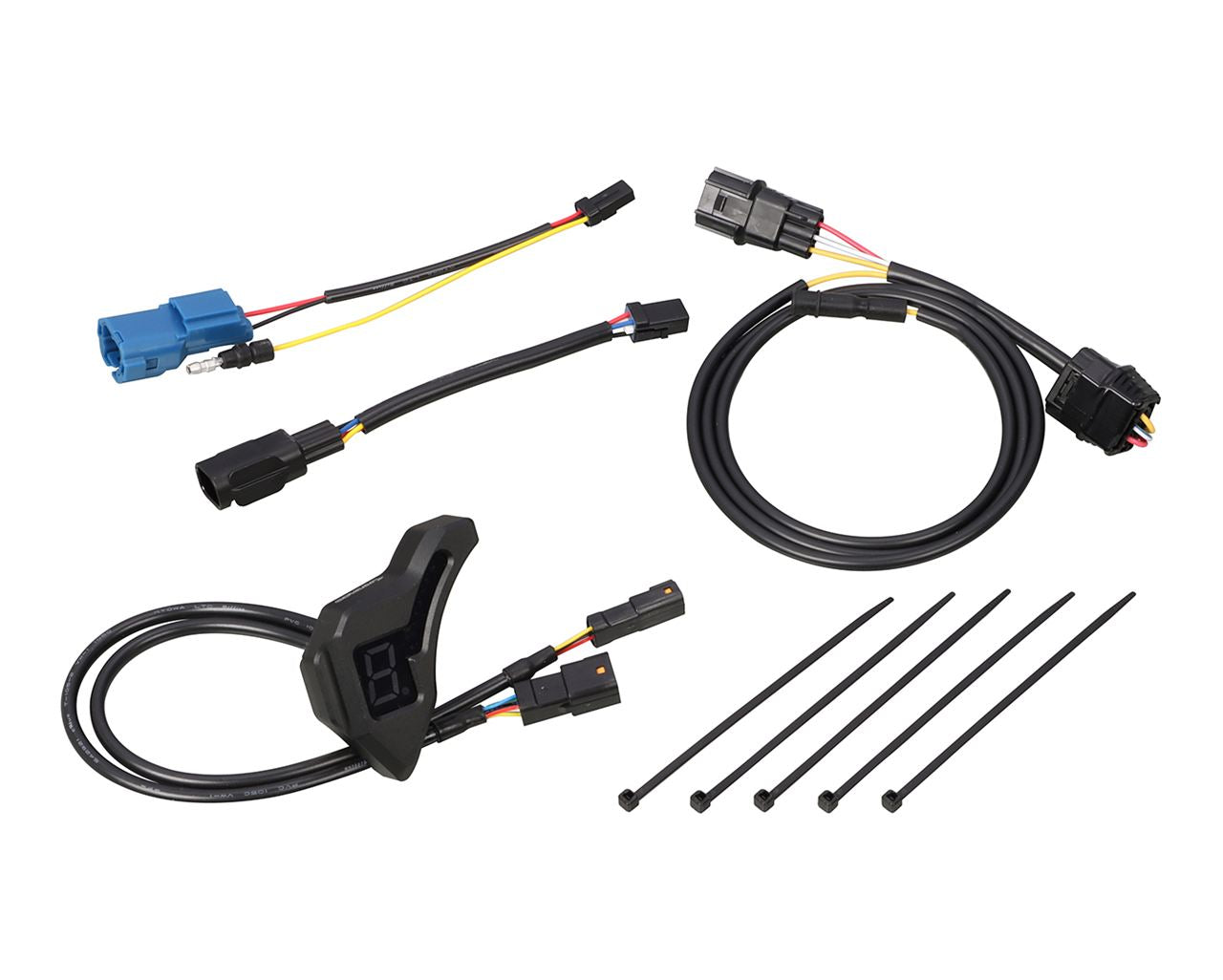

【KITACO 761-1321000 Gear Position Indicator 1 Set for CT125 Hunter Cub JA65-1100001~, Dax125 JB06, Meter System, Motorcycle Parts】
■Product Description

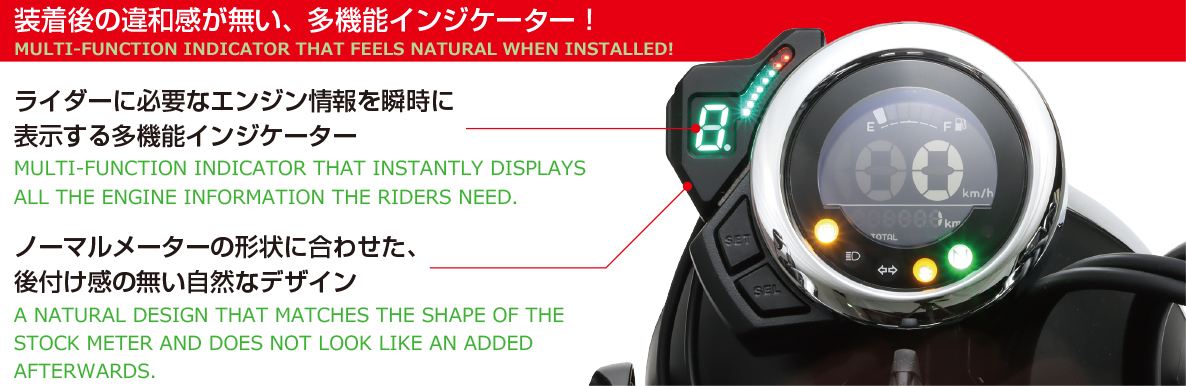

◆A multi-functional indicator with a design that fits the normal meter without feeling out of place!

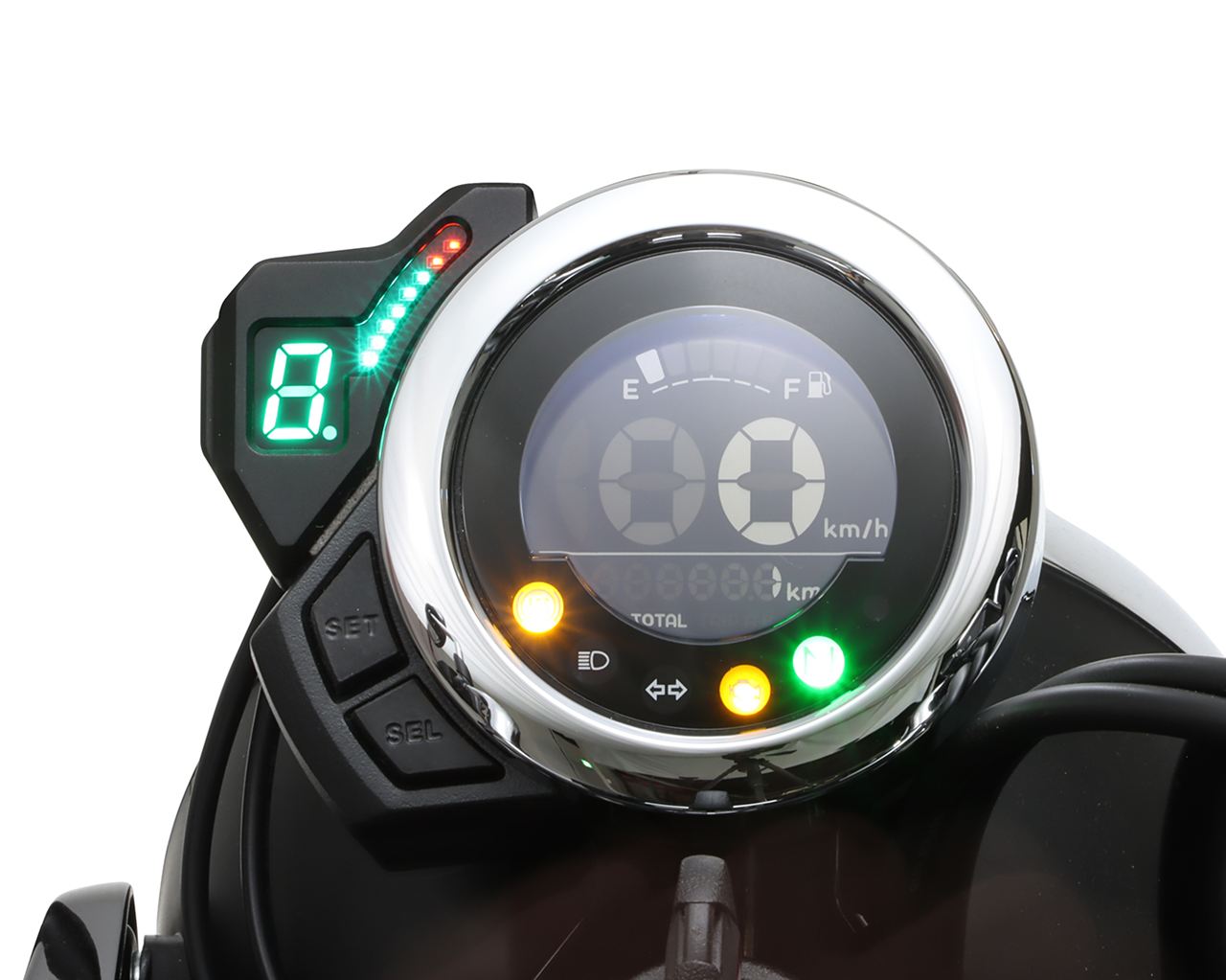

This multi-functional indicator combines a gear position indicator, an LED bar graph tachometer using 8 LEDs, and a shift-up indicator, and can be installed on the genuine speedometer without looking out of place.
It visually displays the current gear position and engine speed to the rider, improving driving precision and safety.
●Main Functions

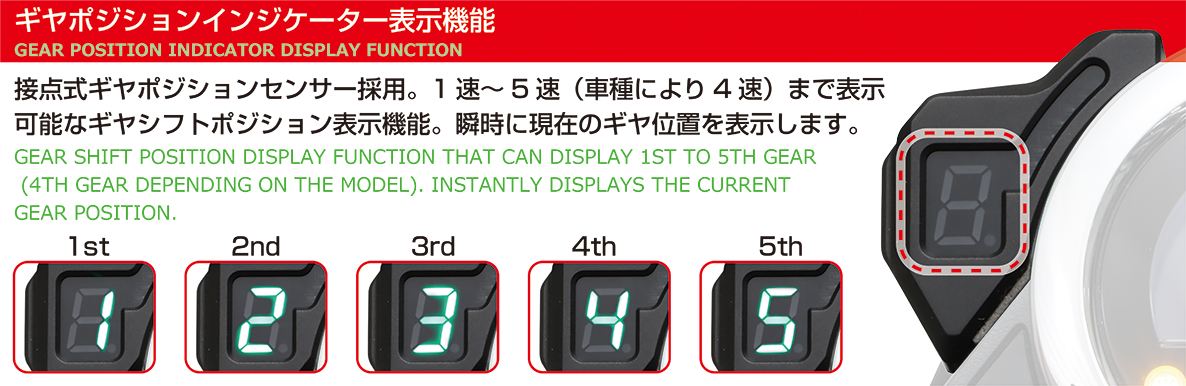

　○Gear Position Indicator: Displays from 1st to a maximum of 5th gear using a contact-type gear position sensor. Instantly displays which gear is engaged.

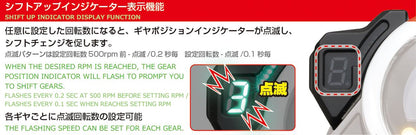

　○Shift-up Indicator: The gear position indicator blinks to prompt a gear change.

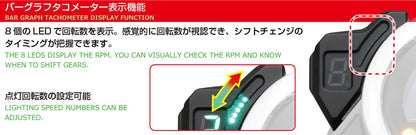

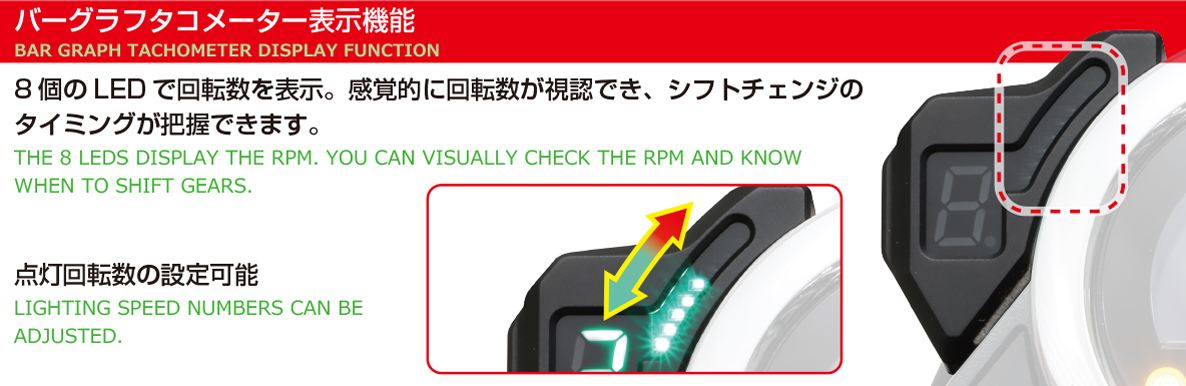

　○Bar Graph Tachometer: Displays engine speed with 8 LEDs, allowing for intuitive recognition of RPMs.

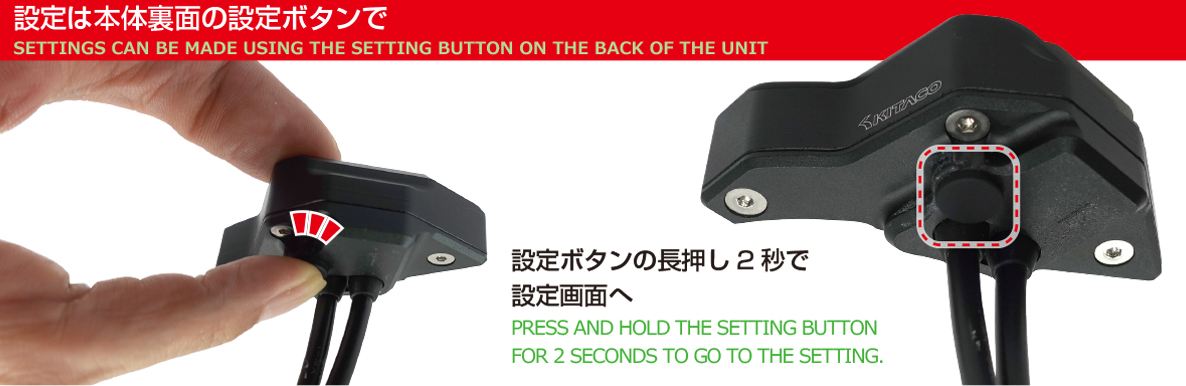

●Function Settings

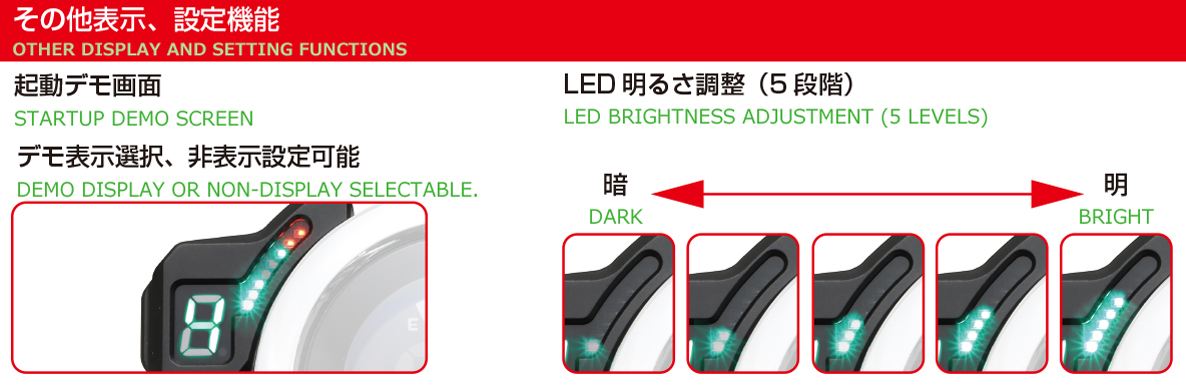

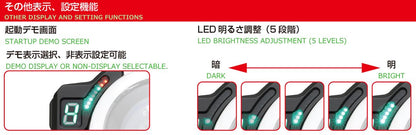

　○LED Brightness Setting Function: Allows adjustment of LED brightness in 5 levels. (Level 1 brightness is the default setting)
　○Pickup Pulse Setting: Allows changing of rotation speed pulses (9 pulses or 34 pulses) according to the vehicle model. (Pre-set for each vehicle model at shipment)
　○Bar Graph Tachometer RPM Setting: The illumination RPM of the bar graph tachometer can be set.
1000rpm start, 1000rpm step (default setting)
3000rpm start, 1000rpm step
2500rpm start, 500rpm step

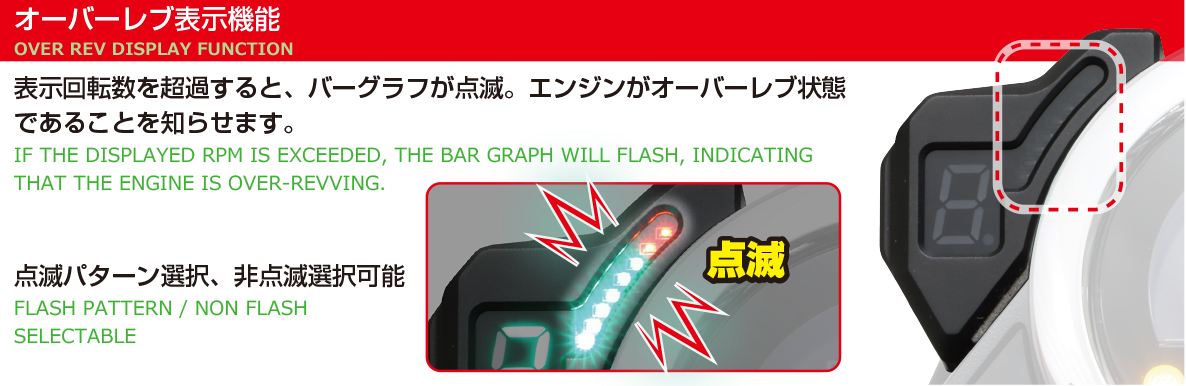

　○Bar Graph Tachometer Over-rev Blink Setting: The bar graph blinks when the displayed RPM is exceeded.
No blinking
Only the red color of the bar graph blinks (default setting)
All of the bar graph blinks

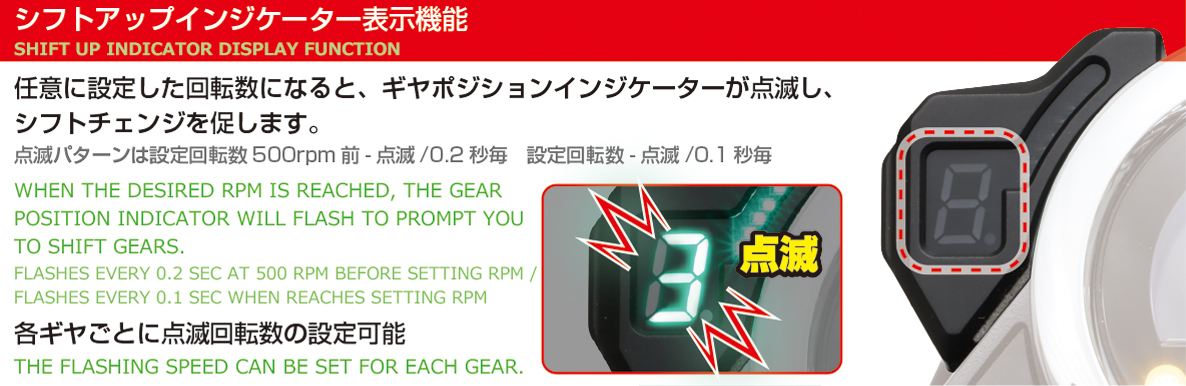

　○Shift-up Indicator Blink Setting: The blinking RPM of the gear position indicator can be set for each gear.
(Blinking pattern: 500rpm before set RPM - blink/0.2 seconds, at set RPM - blink/0.1 seconds)
No blinking
Blinks - common RPM for all gears (default setting)
Blinks - RPM for each gear, can be set arbitrarily in units of 10000, 1000, 100rpm
●Other Functions
　○Startup Demo Setting: Selects the demo operation when power is turned on.
No display
Demo 1 (default setting)
Demo 2

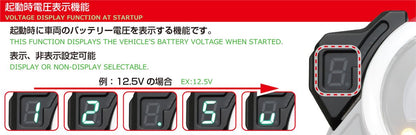

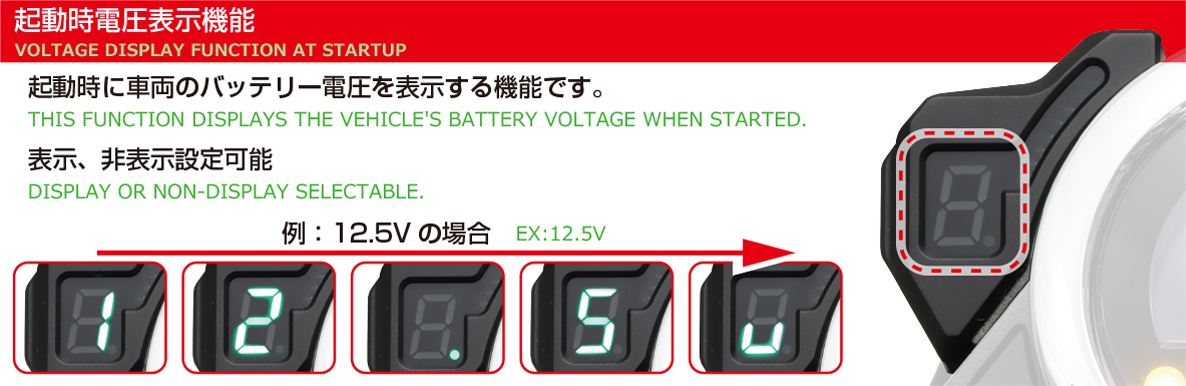

　○Startup Voltage Display Function: Displays vehicle voltage at startup.
No display
Display enabled (default setting)

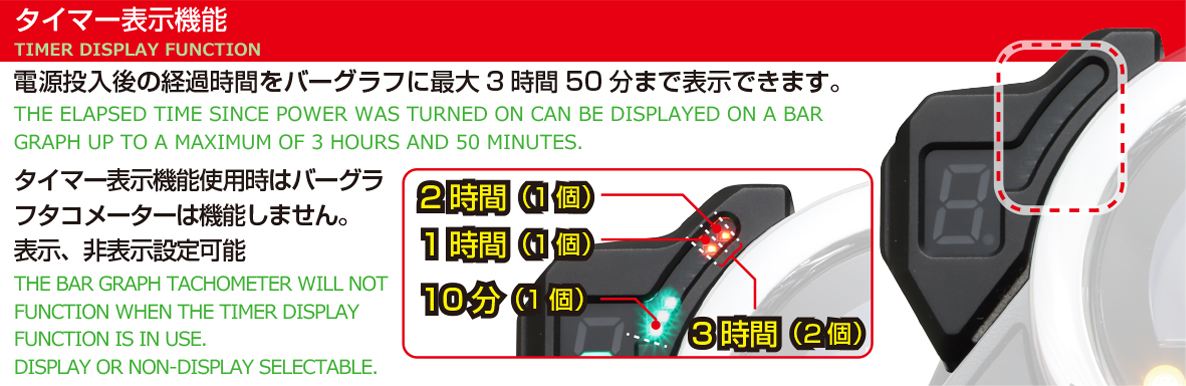

　○Timer Display Function: Displays the elapsed time after power-on on the bar graph for up to 3 hours and 50 minutes.
LEDs 1-5 green lamp (10 minutes per segment)

■Compatible Models
CT125 Hunter Cub
JA65-1100001~
Dax125
JB06
*Only compatible with domestic specification vehicles

■Specifications
Indicator body: CNC machined aluminum, black anodized finish
Quantity: 1 set

■Notes
Images are for illustration purposes only. Includes products with different sizes and colors.
Product design and specifications are subject to change without notice. Please understand.
