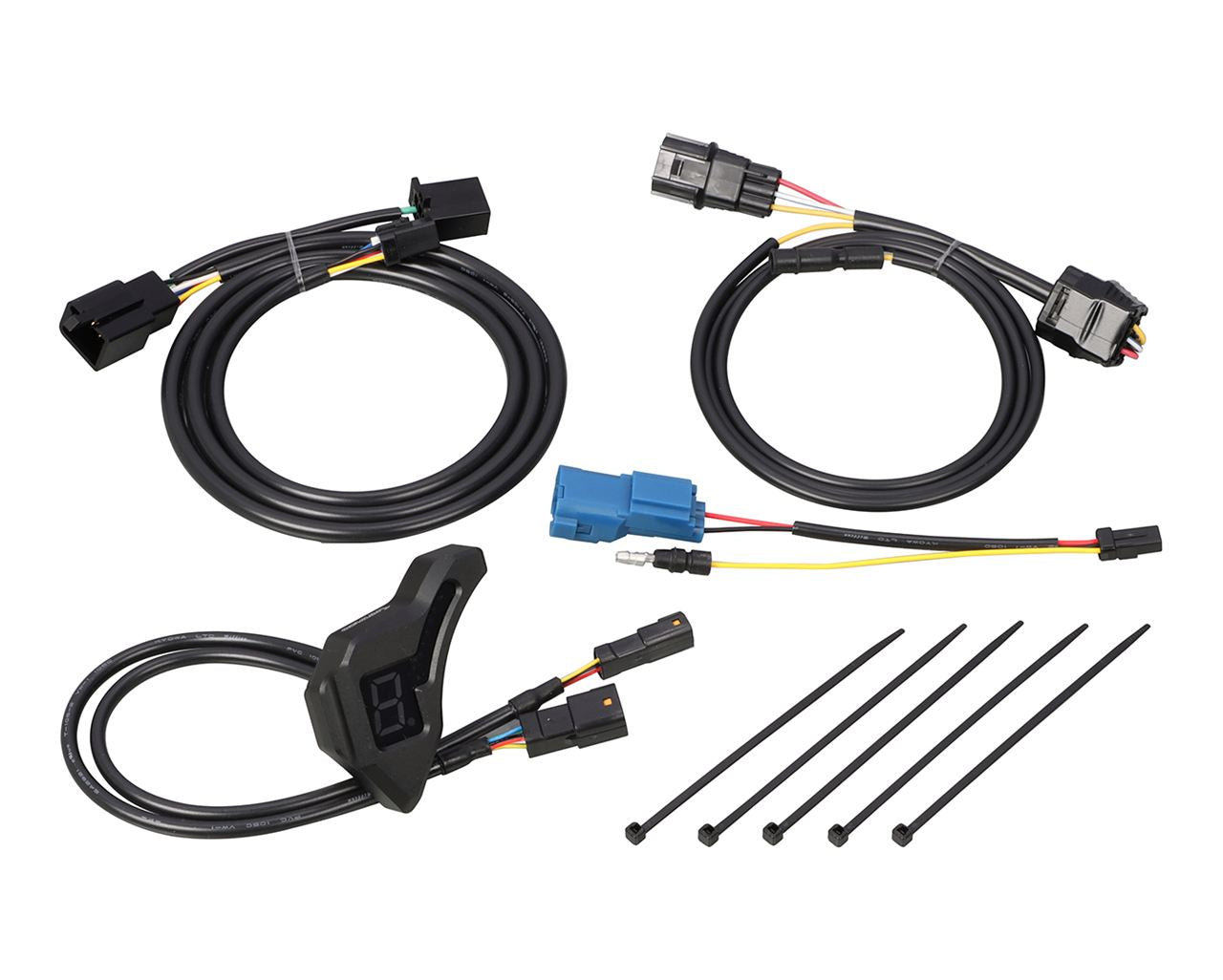

Gear position indicator for CT125 '23 (JA65) and DAX125 (JB04), 1 set. CT125 Hunter Cub JA65, Dax 125 JB04.

【KITACO 761-1471000 Gear Position Indicator CT125 '23 CT125(JA65)．DAX125(JB04) 1 Set CT125 Hunter Cub JA65 Dax 125 JB04 Meter System KITACO】
■Product Description

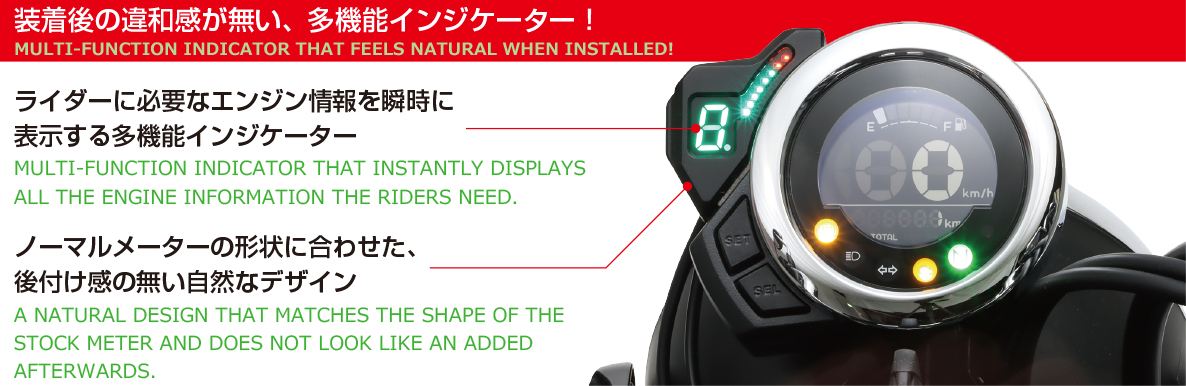

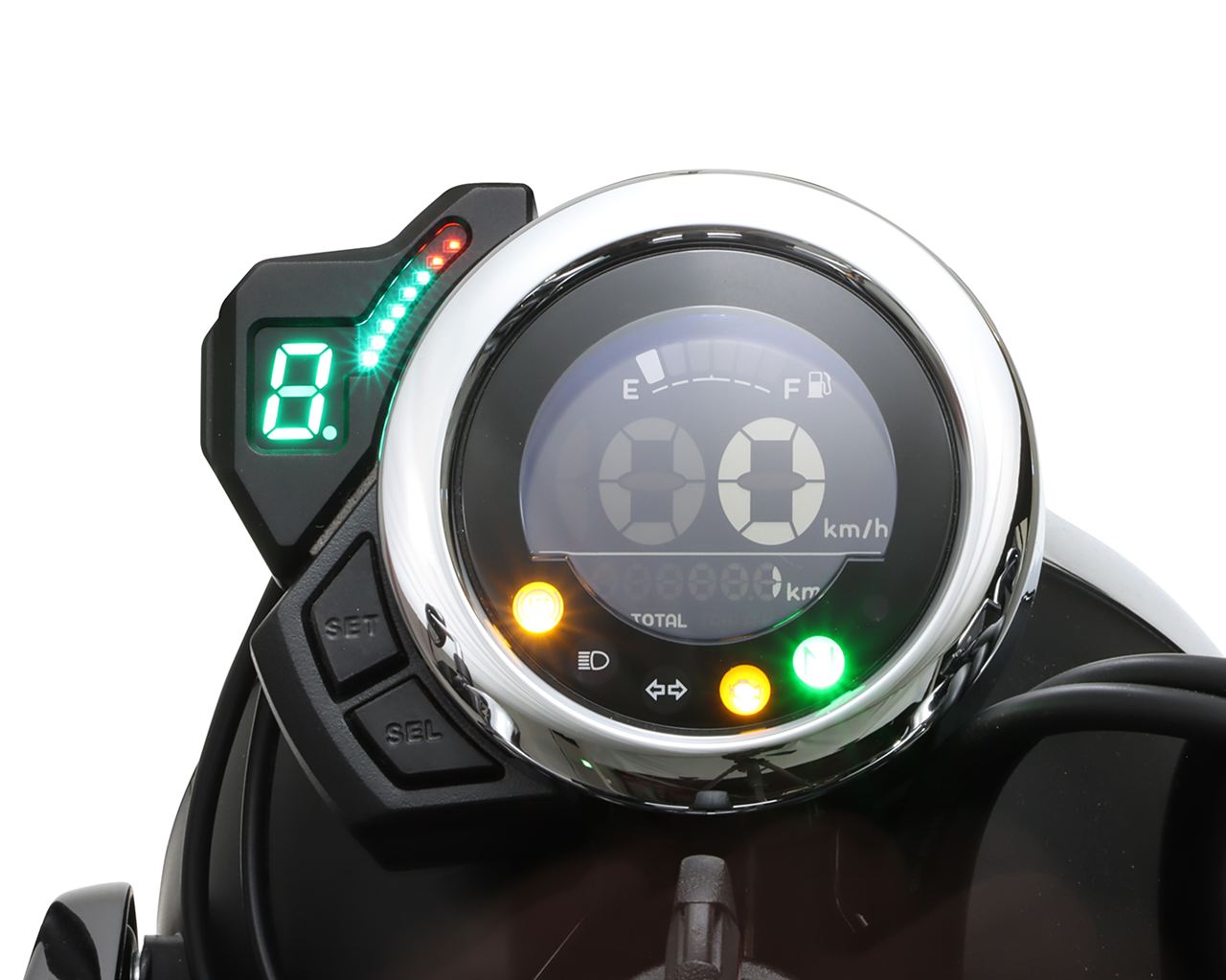

◆A multi-functional indicator with a design that fits the normal meter without looking out of place!
In addition to a gear position indicator, this multi-functional indicator combines an 8-LED bar graph tachometer and a shift-up indicator, and can be installed seamlessly with the genuine speedometer.
It visually displays the current gear position and engine RPM to the rider, improving the accuracy and safety of driving operations.
●Main Functions
　○Gear Position Indicator: With a contact-type gear position sensor, it can display 1st gear to a maximum of 5th gear. It instantly displays which gear is engaged.
　○Shift Up Indicator: The gear position indicator flashes to prompt a shift change.

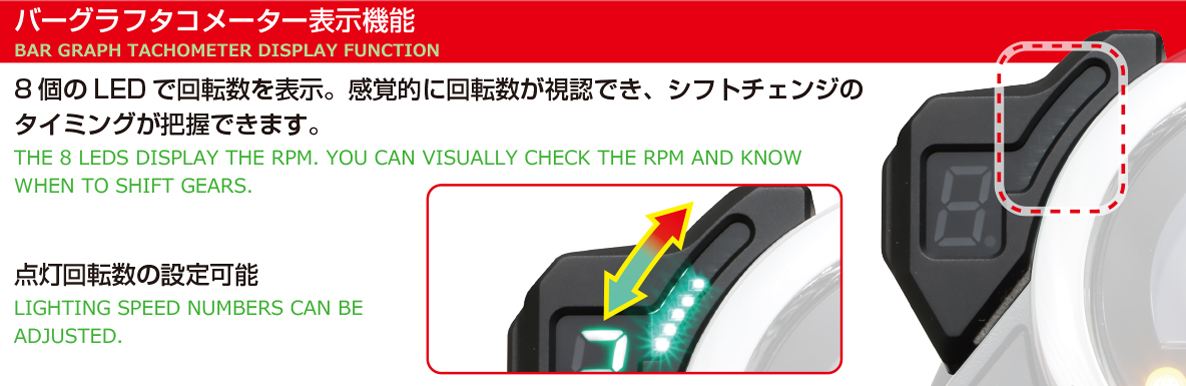

　○Bar Graph Tachometer: Displays RPM with 8 LEDs, allowing intuitive visibility of RPM.

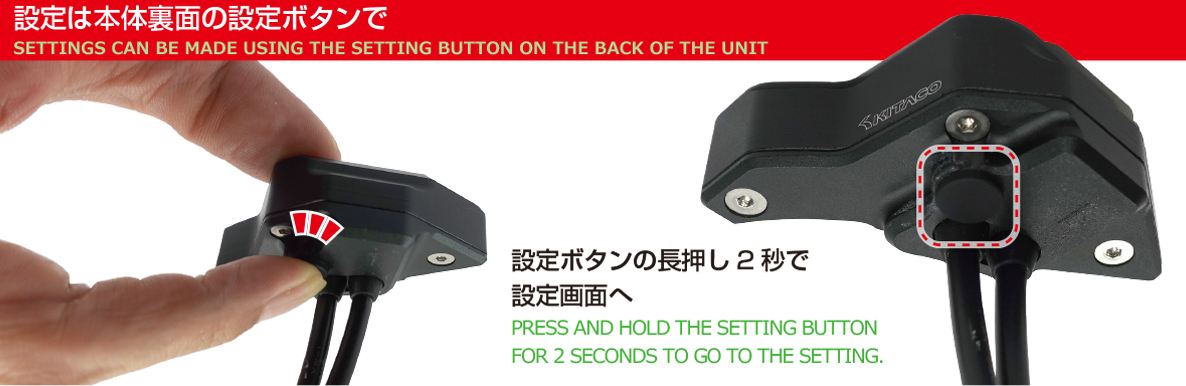

●Function Settings
　○LED Brightness Setting Function: 5 levels of LED brightness adjustment are possible. (Level 1 brightness is the default setting)
　○Pickup Pulse Setting: It is possible to change the RPM pulse (9 pulses or 34 pulses) according to the vehicle model. (Set by vehicle model at shipment)
　○Bar Graph Tachometer RPM Setting: The RPM at which the bar graph tachometer illuminates can be set.
1000rpm start・1000rpm step (default setting)
3000rpm start・1000rpm step
2500rpm start・500rpm step

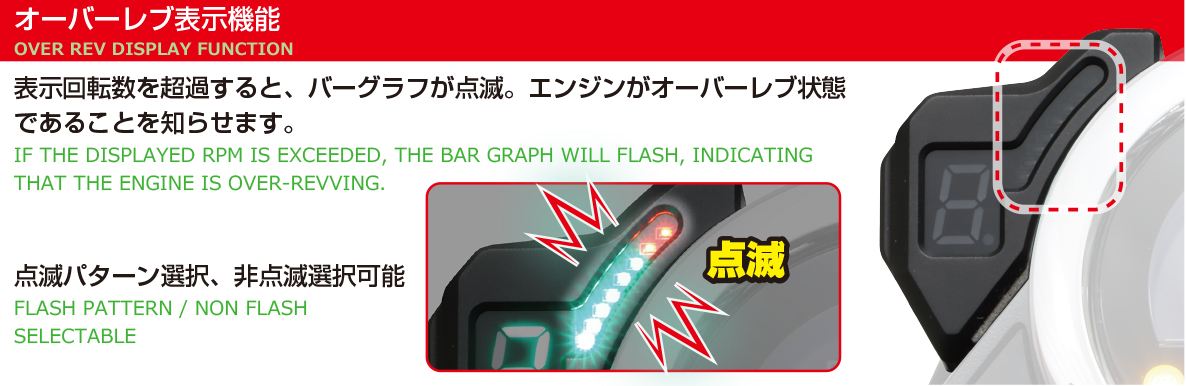

　○Bar Graph Tachometer Over-rev Flashing Setting: If the displayed RPM is exceeded, the bar graph flashes.
No flashing
Only the red part of the bar graph flashes (default setting)
The entire bar graph flashes
　○Shift Up Indicator Flashing Setting: The flashing RPM of the gear position indicator can be set for each gear.
(Flashing pattern: 500rpm before set RPM flashes/0.2 seconds・set RPM flashes/0.1 seconds)
No flashing
Flashing・Common RPM for all gears (default setting)
Flashing・RPM for each gear, can be set arbitrarily in units of 10000, 1000, 100rpm
●Other Functions
　○Startup Demo Setting: You can select the demo operation when power is turned on.
No display
Demo 1 (default setting)
Demo 2

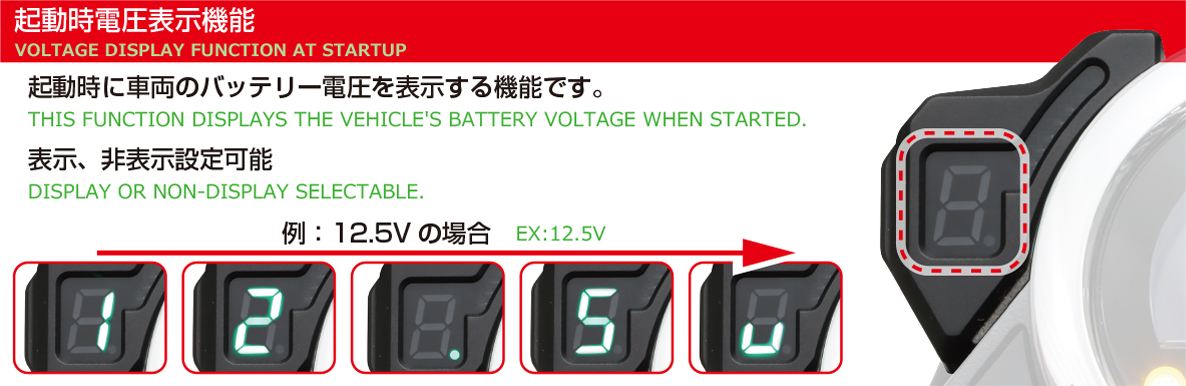

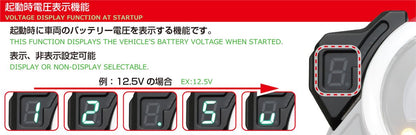

　○Startup Voltage Display Function: This function displays the vehicle voltage at startup.
No display
Display enabled (default setting)

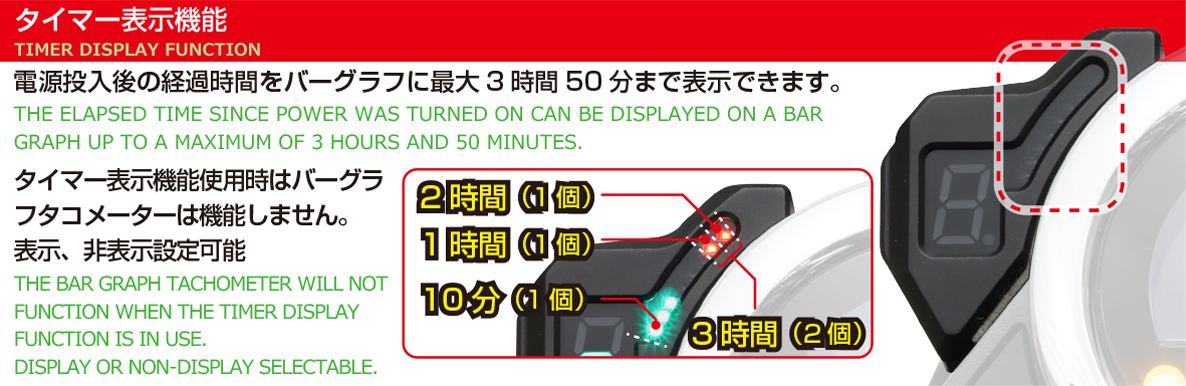

　○Timer Display Function: The elapsed time since power-on can be displayed on the bar graph for a maximum of 3 hours and 50 minutes.
LEDs 1-5 Green lamp (10 minutes per segment)

■Compatible Models
CT125 Hunter Cub
JA65-1000001～1099999
Dax 125
JB04
*Only compatible with domestic models

■Specifications
Indicator Body: Machined aluminum・Black anodized finish
Quantity: 1 set

■Notes
The image is for illustration purposes. It includes products of different sizes and colors.
Product design and specifications are subject to change without notice. Please understand.
