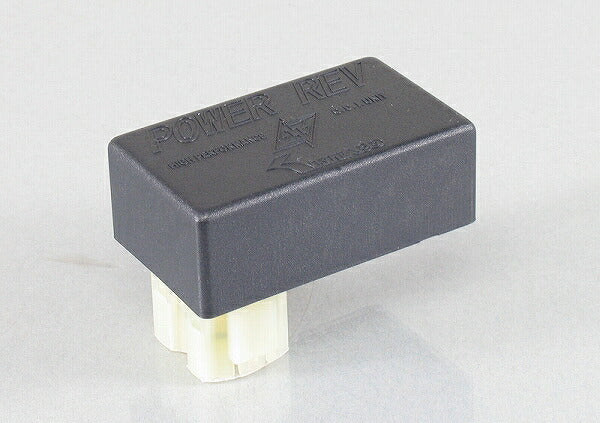

Power Rev CDI Unit 12V Monkey

【KITACO 766-1123300 Power Rev CDI Unit 12V Monkey KITACO 766-1123300】
Optimal ignition timing setting
Power Rev 2 is programmed with optimal ignition timing characteristics for all engine speeds,
to extract the maximum performance from the machine.
In particular, the ignition timing characteristics are designed for racing, achieving power-up across the entire range from low to high speeds.
The side stand return reminder function cannot be used.
About the Power Rev conversion harness
Connecting a conversion harness to the Power Rev 2 for Monkey and APE expands the range of compatible models.
Compatible models: Monkey/Gorilla FNO.Z50J-2000001～
FNO.AB27-1000001～1899999
Solo AC17 all models
XR50R AE03 all models
CRF50F AE03 all models
NSF100 all models
APE50 FNO.AC16-1000001～1599999
APE100 HC07 all models
APE100-D HC13 all models
XR50 Motard AD14 all models
XR100 Motard HD13 all models
Use conversion harness (766-1116001)
Little Cub FNO.C50-4300001～
FNO.AA01-1000001～3999999
Super Cub 50 FNO.C50-9400001～
FNO.C50-0200001～2299999
FNO.AA01-1000001～1699999
DAX (for 12V) AB26 all models
CD50 is compatible with FNO.CD50-1500001～1904169.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
