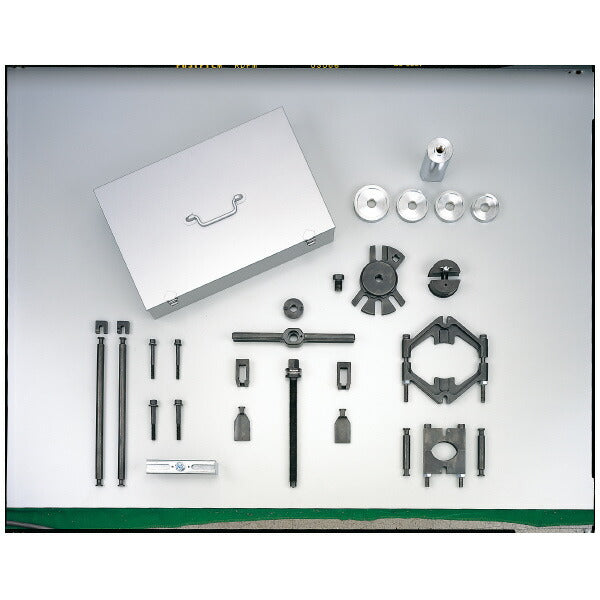

[KTC AS301 Multi-Puller]
●Weight (g): 1700
●Maximum product load when hand-operated: 19,600 N (2t)
●Hub bolt count: 4-5 holes
●Wheel bearing diameter: φ64-φ84
●Bearing race diameter: φ47-φ63
●Hub holder 1: φ68-84 mm
●Hub holder 2: φ76-106 mm
●Auxiliary parts: AS301-1-20, AS301-6-6, AS301-7-45, AS301-13-2, AS301-13-34, AS301-17-45, AS301-2125, AS301-2345
●One set can be used for axle disassembly and assembly.
●Compatible with both types of hub bearings: inner-mounted and outer-mounted.
●Can be used with a hydraulic press, reducing labor and working hours.
●Arms can be attached and detached with a single touch using ball fixing.
●Center bolt has bearings, making drive torque light.
●Applicable not only to FF vehicle axles but also to the rear of FR and 4WD vehicles.
●Wide range of applications beyond axles, including steering wheels, differential companion flanges, transmission bearings, and gears.
●By reassembling the included components, various bearings other than those for automobiles and
●Automobile axles: Disassembly/assembly of hub and knuckle, disassembly/assembly of bearing race, disassembly/assembly of wheel bearing
●Steering: Steering wheel removal
●Differential: Companion flange removal
●Transmission: Bearing and gear removal
●Others: Removal of various bearings and gears
●Application: Primarily for axles of FF mini-vehicles to regular passenger cars. Also applicable to steering wheels, differential companion flanges, transmission bearings, and gears of mini-vehicles to regular passenger cars.
●Set contents: Center bolt Assy with hex size 22 mm x total length 280 mm (M18 x 2.0) 1 pc, hanger 270 x 38 x 37 mm 1 pc, slide arm 60.5 x 30 x 20 mm 1 pc, arm M φ16 x 105 mm 2 pcs, hub plate φ154 x 24 mm (screw: M18 x 2.0, with 12.7sq.) 1 pc, hub holder 1 Assy φ70 x 34 mm (with wing bolt (M6)) 1 pc, hub holder 2 Assy 190 x 190 mm (with hex socket adjustment bolt (M1
*Replacement parts are available. Please contact your dealer for details.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
